complexType IdentifierType

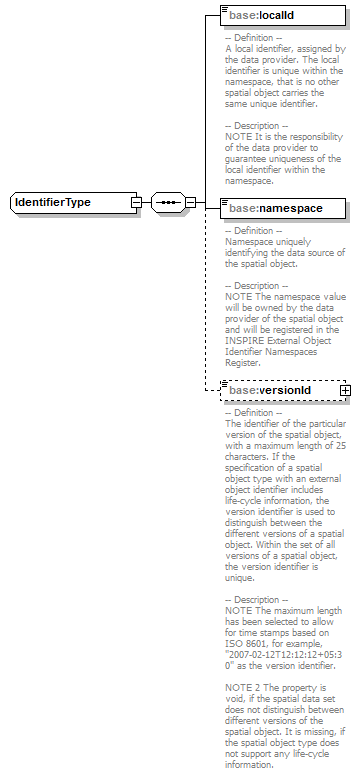

diagram AirQualityReporting_p1245.png
namespace urn:x-inspire:specification:gmlas:BaseTypes:3.2
children base:localId base:namespace base:versionId

element IdentifierType/localId
diagram AirQualityReporting_p1246.png
namespace urn:x-inspire:specification:gmlas:BaseTypes:3.2
type string
properties
isRef 0
content simple
annotation
documentation
-- Definition --
A local identifier, assigned by the data provider. The local identifier is unique within the namespace, that is no other spatial object carries the same unique identifier.

-- Description --
NOTE It is the responsibility of the data provider to guarantee uniqueness of the local identifier within the namespace.

element IdentifierType/namespace
diagram AirQualityReporting_p1247.png
namespace urn:x-inspire:specification:gmlas:BaseTypes:3.2
type string
properties
isRef 0
content simple
annotation
documentation
-- Definition --
Namespace uniquely identifying the data source of the spatial object.

-- Description --
NOTE The namespace value will be owned by the data provider of the spatial object and will be registered in the INSPIRE External Object Identifier Namespaces Register.

element IdentifierType/versionId

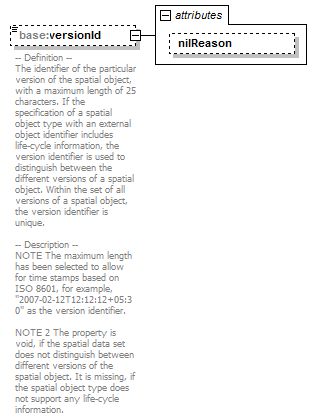

diagram AirQualityReporting_p1248.png
namespace urn:x-inspire:specification:gmlas:BaseTypes:3.2
type extension of string
properties
isRef 0
minOcc 0
maxOcc 1
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
The identifier of the particular version of the spatial object, with a maximum length of 25 characters. If the specification of a spatial object type with an external object identifier includes life-cycle information, the version identifier is used to distinguish between the different versions of a spatial object. Within the set of all versions of a spatial object, the version identifier is unique.

-- Description --
NOTE The maximum length has been selected to allow for time stamps based on ISO 8601, for example, "2007-02-12T12:12:12+05:30" as the version identifier.

NOTE 2 The property is void, if the spatial data set does not distinguish between different versions of the spatial object. It is missing, if the spatial object type does not support any life-cycle information.

attribute IdentifierType/versionId/@nilReason
type gml:NilReasonType
properties
isRef 0
