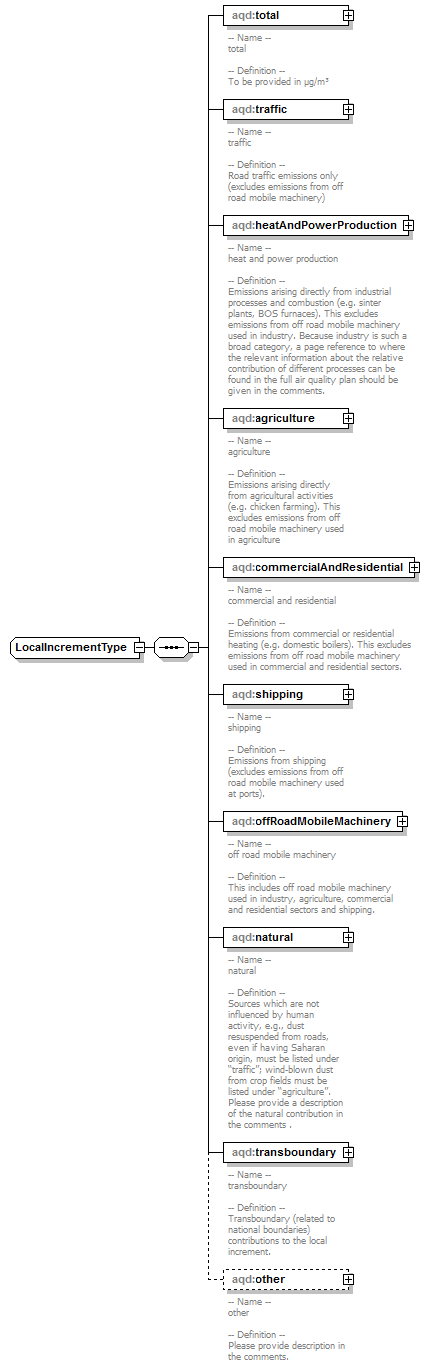

complexType LocalIncrementType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:total aqd:traffic aqd:heatAndPowerProduction aqd:agriculture aqd:commercialAndResidential aqd:shipping aqd:offRoadMobileMachinery aqd:natural aqd:transboundary aqd:other

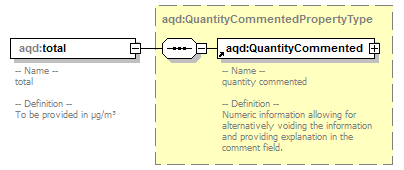

element LocalIncrementType/total

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- total -- Definition -- To be provided in µg/m³

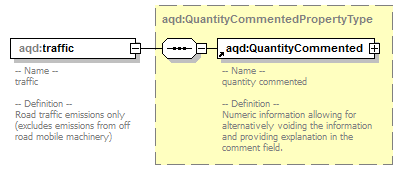

element LocalIncrementType/traffic

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- traffic -- Definition -- Road traffic emissions only (excludes emissions from off road mobile machinery)

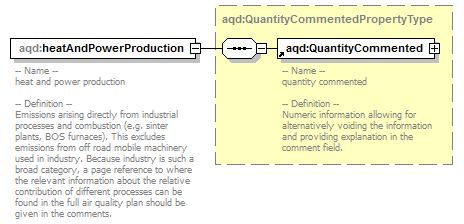

element LocalIncrementType/heatAndPowerProduction

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- heat and power production -- Definition -- Emissions arising directly from industrial processes and combustion (e.g. sinter plants, BOS furnaces). This excludes emissions from off road mobile machinery used in industry. Because industry is such a broad category, a page reference to where the relevant information about the relative contribution of different processes can be found in the full air quality plan should be given in the comments.

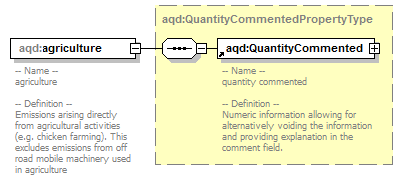

element LocalIncrementType/agriculture

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- agriculture -- Definition -- Emissions arising directly from agricultural activities (e.g. chicken farming). This excludes emissions from off road mobile machinery used in agriculture

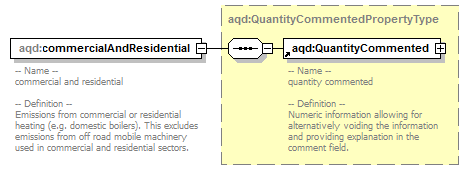

element LocalIncrementType/commercialAndResidential

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- commercial and residential -- Definition -- Emissions from commercial or residential heating (e.g. domestic boilers). This excludes emissions from off road mobile machinery used in commercial and residential sectors.

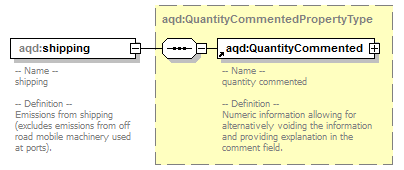

element LocalIncrementType/shipping

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- shipping -- Definition -- Emissions from shipping (excludes emissions from off road mobile machinery used at ports).

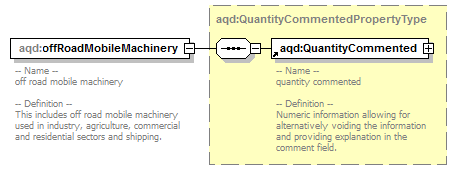

element LocalIncrementType/offRoadMobileMachinery

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- off road mobile machinery -- Definition -- This includes off road mobile machinery used in industry, agriculture, commercial and residential sectors and shipping.

element LocalIncrementType/natural

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- natural -- Definition -- Sources which are not influenced by human activity, e.g., dust resuspended from roads, even if having Saharan origin, must be listed under “traffic”; wind-blown dust from crop fields must be listed under “agriculture”. Please provide a description of the natural contribution in the comments .

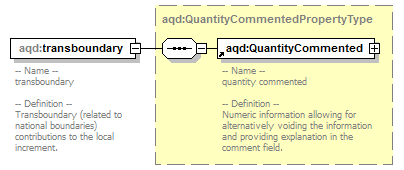

element LocalIncrementType/transboundary

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- transboundary -- Definition -- Transboundary (related to national boundaries) contributions to the local increment.

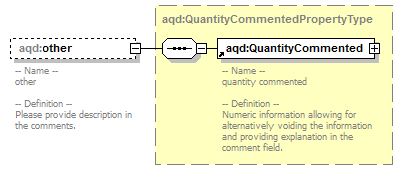

element LocalIncrementType/other

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- other -- Definition -- Please provide description in the comments.
