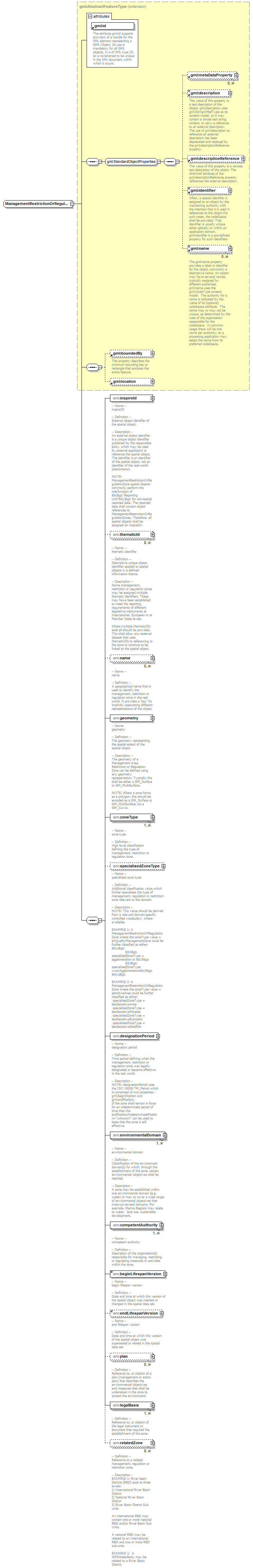

complexType ManagementRestrictionOrRegulationZoneType

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location am:inspireId am:thematicId am:name am:geometry am:zoneType am:specialisedZoneType am:designationPeriod am:environmentalDomain am:competentAuthority am:beginLifespanVersion am:endLifespanVersion am:plan am:legalBasis am:relatedZone
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element ManagementRestrictionOrRegulationZoneType/inspireId

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Name -- inspireID -- Definition -- External object identifier of the spatial object. -- Description -- An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon. NOTE: ManagementRestrictionOrRegulationZone spatial objects commonly perform the role/function of <i>"Reporting Unit"</i> for non-spatial reported data. The reported data shall contain object references to ManagementRestrictionOrRegulationZones. Therefore, all spatial objects shall be assigned an inspireID.

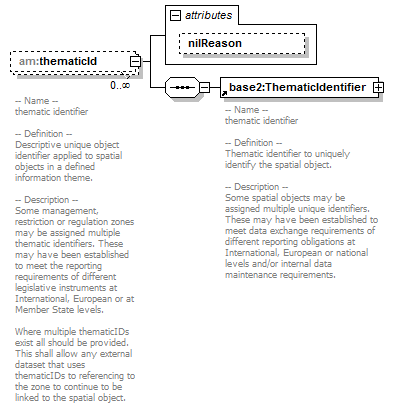

element ManagementRestrictionOrRegulationZoneType/thematicId

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	base2:ThematicIdentifier
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- thematic identifier -- Definition -- Descriptive unique object identifier applied to spatial objects in a defined information theme. -- Description -- Some management, restriction or regulation zones may be assigned multiple thematic identifiers. These may have been established to meet the reporting requirements of different legislative instruments at International, European or at Member State levels.  Where multiple thematicIDs exist all should be provided. This shall allow any external dataset that uses thematicIDs to referencing to the zone to continue to be linked to the spatial object.

attribute ManagementRestrictionOrRegulationZoneType/thematicId/@nilReason

type	gml:NilReasonType
properties	isRef  0

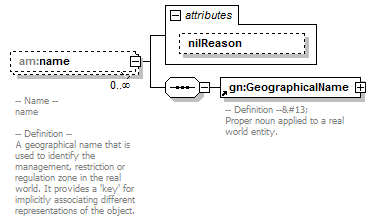

element ManagementRestrictionOrRegulationZoneType/name

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	gn:GeographicalName
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- name -- Definition -- A geographical name that is used to identify the management, restriction or  regulation zone in the real world. It provides a 'key' for implicitly associating different representations of the object.

attribute ManagementRestrictionOrRegulationZoneType/name/@nilReason

type	gml:NilReasonType
properties	isRef  0

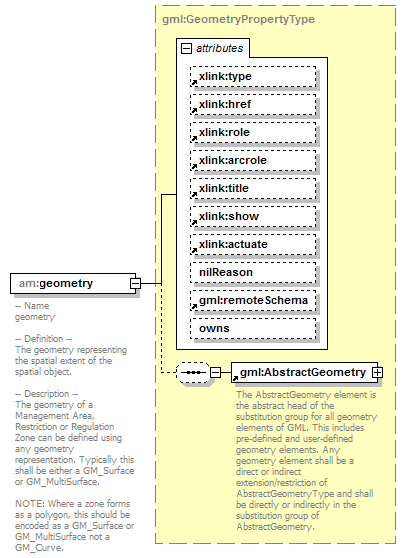

element ManagementRestrictionOrRegulationZoneType/geometry

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	gml:GeometryPropertyType
properties	isRef  0 content  complex
children	gml:AbstractGeometry
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name geometry -- Definition -- The geometry representing the spatial extent of the spatial object. -- Description -- The geometry of a Management Area, Restriction or Regulation Zone can be defined using any geometry representation. Typically this shall be either a GM_Surface or GM_MultiSurface. NOTE: Where a zone forms as a polygon, this should be encoded as a GM_Surface or GM_MultiSurface not a GM_Curve.

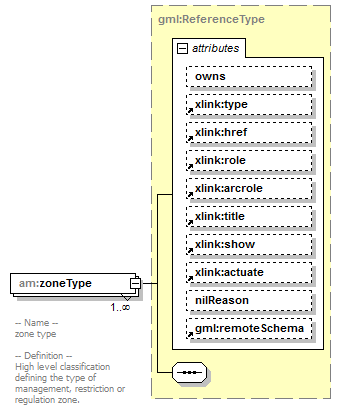

element ManagementRestrictionOrRegulationZoneType/zoneType

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- zone type -- Definition -- High level classification defining the type of management, restriction or regulation zone. appinfo <taggedValue xmlns="http://www.interactive-instruments.de/ShapeChange/AppInfo" tag="obligation">implementingRule</taggedValue>

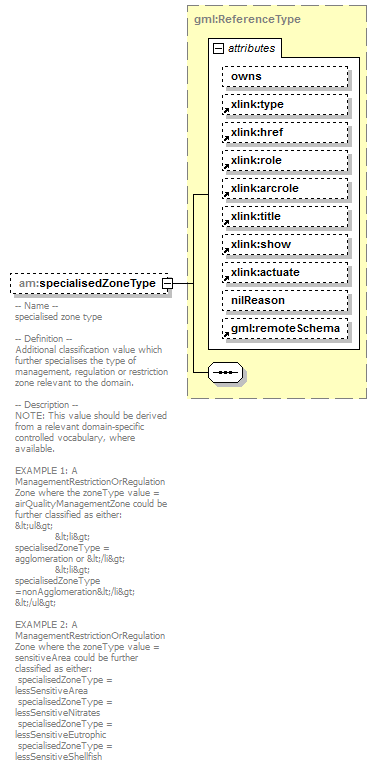

element ManagementRestrictionOrRegulationZoneType/specialisedZoneType

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- specialised zone type -- Definition -- Additional classification value which further specialises the type of management, regulation or restriction zone relevant to the domain. -- Description -- NOTE: This value should be derived from a relevant domain-specific controlled vocabulary, where available. EXAMPLE 1: A ManagementRestrictionOrRegulationZone where the zoneType value = airQualityManagementZone could be further classified as either: &lt;ul&gt; &lt;li&gt; specialisedZoneType = agglomeration or &lt;/li&gt; &lt;li&gt; specialisedZoneType =nonAgglomeration&lt;/li&gt; &lt;/ul&gt; EXAMPLE 2: A ManagementRestrictionOrRegulationZone where the zoneType value = sensitiveArea could be further classified as either: specialisedZoneType = lessSensitiveArea specialisedZoneType = lessSensitiveNitrates specialisedZoneType = lessSensitiveEutrophic specialisedZoneType = lessSensitiveShellfish appinfo <taggedValue xmlns="http://www.interactive-instruments.de/ShapeChange/AppInfo" tag="obligation">technicalGuidance</taggedValue>

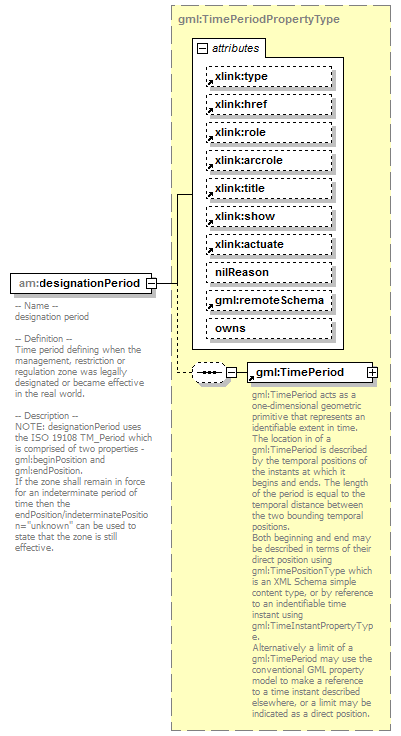

element ManagementRestrictionOrRegulationZoneType/designationPeriod

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	gml:TimePeriodPropertyType
properties	isRef  0 content  complex nillable  true
children	gml:TimePeriod
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- designation period -- Definition -- Time period defining when the management, restriction or regulation zone was legally designated or became effective in the real world. -- Description -- NOTE: designationPeriod uses the ISO 19108 TM_Period which is comprised of two properties - gml:beginPosition and gml:endPosition. If the zone shall remain in force for an indeterminate period of time then the endPosition/indeterminatePosition="unknown" can be used to state that the zone is still effective.

element ManagementRestrictionOrRegulationZoneType/environmentalDomain

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- environmental domain -- Definition -- Classification of the environment domain(s) for which, through the establishment of the zone, certain environmental objectives shall be reached. -- Description -- A zone may be established within one environmental domain (e.g. water) or may to cover a wide range of environmental objectives that cross-cut several domains. For example, Marine Regions may relate to water,  land use, sustainable development. appinfo <taggedValue xmlns="http://www.interactive-instruments.de/ShapeChange/AppInfo" tag="obligation">implementingRule</taggedValue>

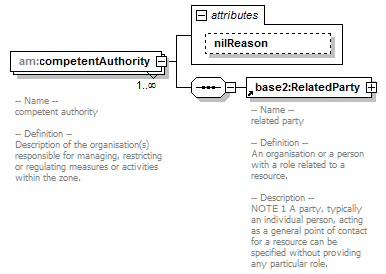

element ManagementRestrictionOrRegulationZoneType/competentAuthority

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex nillable  true
children	base2:RelatedParty
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- competent authority -- Definition -- Description of the organisation(s) responsible for managing, restricting or regulating measures or activities within the zone.

attribute ManagementRestrictionOrRegulationZoneType/competentAuthority/@nilReason

type	gml:NilReasonType
properties	isRef  0

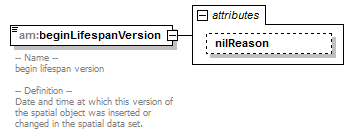

element ManagementRestrictionOrRegulationZoneType/beginLifespanVersion

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	extension of dateTime
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- begin lifespan version -- Definition -- Date and time at which this version of the spatial object was inserted or changed in the spatial data set.

attribute ManagementRestrictionOrRegulationZoneType/beginLifespanVersion/@nilReason

type	gml:NilReasonType
properties	isRef  0

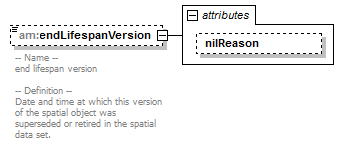

element ManagementRestrictionOrRegulationZoneType/endLifespanVersion

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	extension of dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- end lifespan version -- Definition -- Date and time at which this version of the spatial object was superseded or retired in the spatial data set.

attribute ManagementRestrictionOrRegulationZoneType/endLifespanVersion/@nilReason

type	gml:NilReasonType
properties	isRef  0

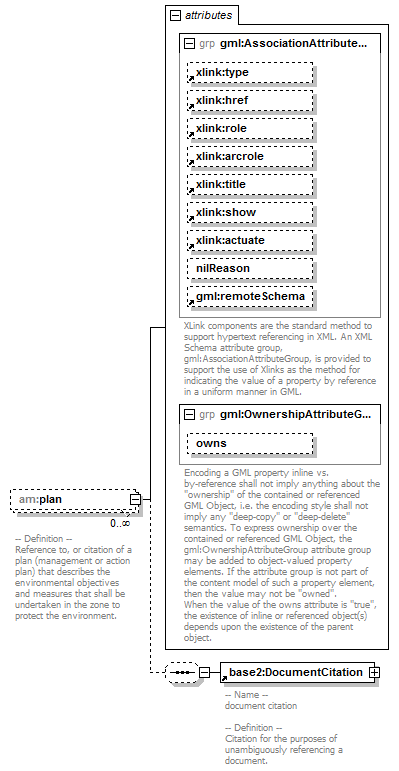

element ManagementRestrictionOrRegulationZoneType/plan

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	base2:DocumentCitation
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- Reference to, or citation of a plan (management or action plan) that describes the environmental objectives and measures that shall be undertaken in the zone to protect the environment.

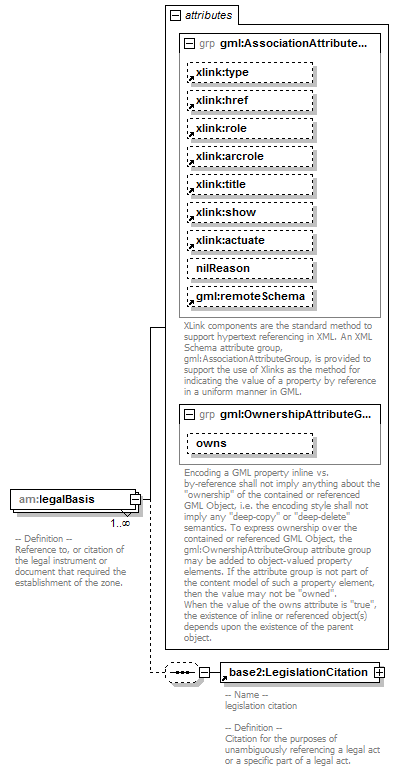

element ManagementRestrictionOrRegulationZoneType/legalBasis

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex nillable  true
children	base2:LegislationCitation
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- Reference to, or citation of the legal instrument or document that required the establishment of the zone.

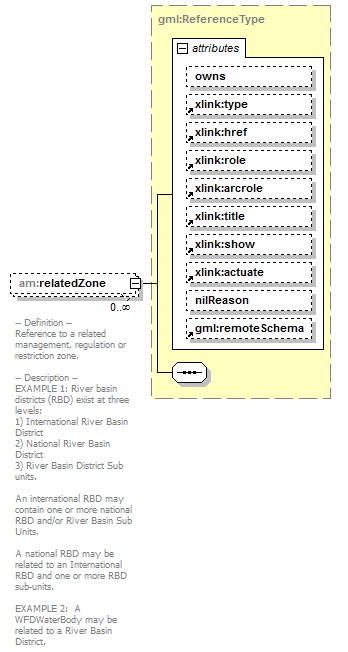

element ManagementRestrictionOrRegulationZoneType/relatedZone

diagram
namespace	http://inspire.ec.europa.eu/schemas/am/3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Reference to a related management, regulation or restriction zone.  -- Description -- EXAMPLE 1: River basin districts (RBD) exist at three levels: 1) International River Basin District 2) National River Basin District 3) River Basin District Sub units. An international RBD may contain one or more national RBD and/or River Basin Sub Units. A national RBD may be related to an International RBD and one or more RBD sub-units. EXAMPLE 2:  A WFDWaterBody may be related to a River Basin District. appinfo <targetElement xmlns="http://www.opengis.net/gml/3.2">am:ManagementRestrictionOrRegulationZone</targetElement>
