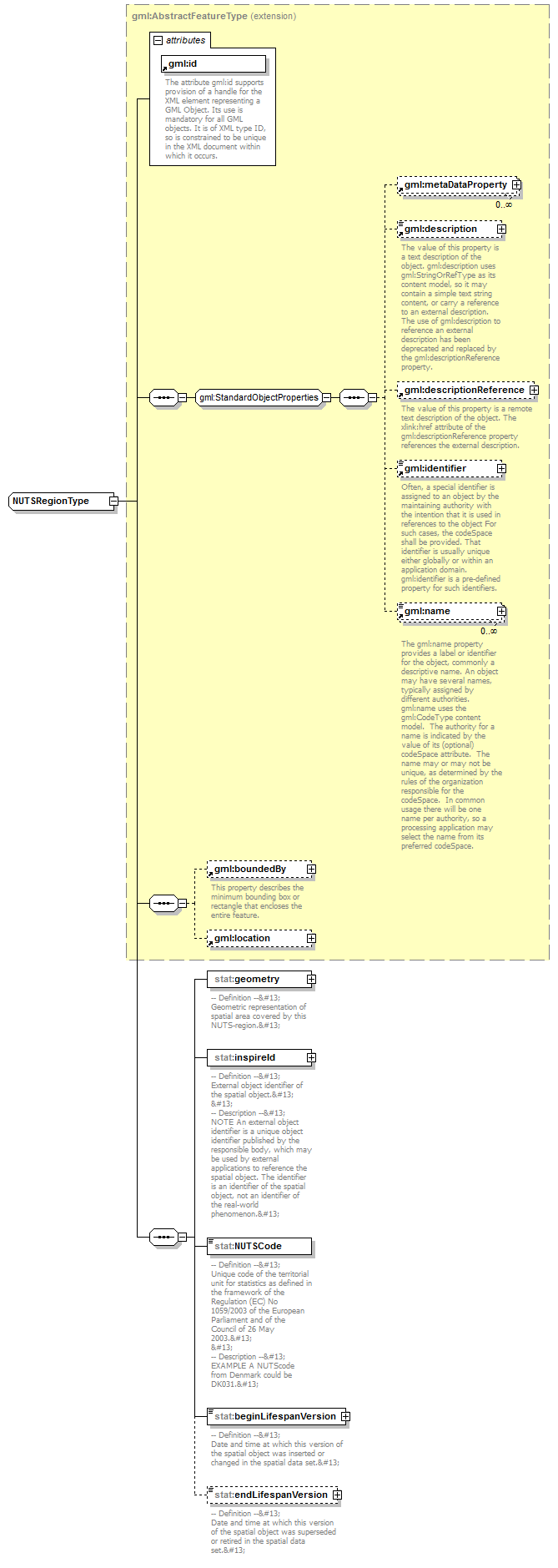

complexType NUTSRegionType

diagram
namespace	urn:x-inspire:specification:gmlas:StatisticalUnits:0.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location stat:geometry stat:inspireId stat:NUTSCode stat:beginLifespanVersion stat:endLifespanVersion
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

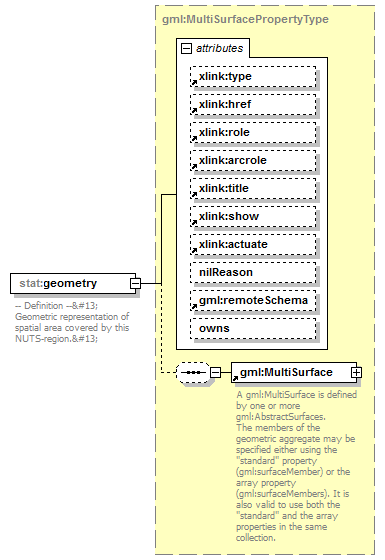

element NUTSRegionType/geometry

diagram
namespace	urn:x-inspire:specification:gmlas:StatisticalUnits:0.0
type	gml:MultiSurfacePropertyType
properties	isRef  0 content  complex
children	gml:MultiSurface
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition --
 Geometric representation of spatial area covered by this NUTS-region.

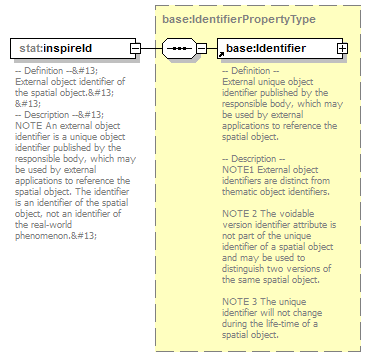

element NUTSRegionType/inspireId

diagram
namespace	urn:x-inspire:specification:gmlas:StatisticalUnits:0.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Definition --
 External object identifier of the spatial object.

 -- Description --
 NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon.


element NUTSRegionType/NUTSCode

diagram
namespace	urn:x-inspire:specification:gmlas:StatisticalUnits:0.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Definition --
 Unique code of the territorial unit for statistics as defined in the framework of the Regulation (EC) No 1059/2003 of the European Parliament and of the Council of 26 May 2003.

 -- Description --
 EXAMPLE A NUTScode from Denmark could be DK031.

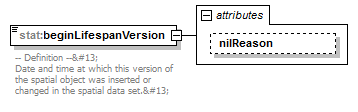

element NUTSRegionType/beginLifespanVersion

diagram
namespace	urn:x-inspire:specification:gmlas:StatisticalUnits:0.0
type	extension of dateTime
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Date and time at which this version of the spatial object was inserted or changed in the spatial data set.


attribute NUTSRegionType/beginLifespanVersion/@nilReason

type	gml:NilReasonType
properties	isRef  0

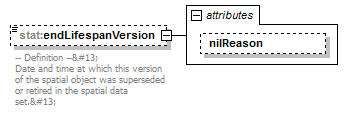

element NUTSRegionType/endLifespanVersion

diagram
namespace	urn:x-inspire:specification:gmlas:StatisticalUnits:0.0
type	extension of dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Date and time at which this version of the spatial object was superseded or retired in the spatial data set.


attribute NUTSRegionType/endLifespanVersion/@nilReason

type	gml:NilReasonType
properties	isRef  0
