complexType NetworkConnectionType

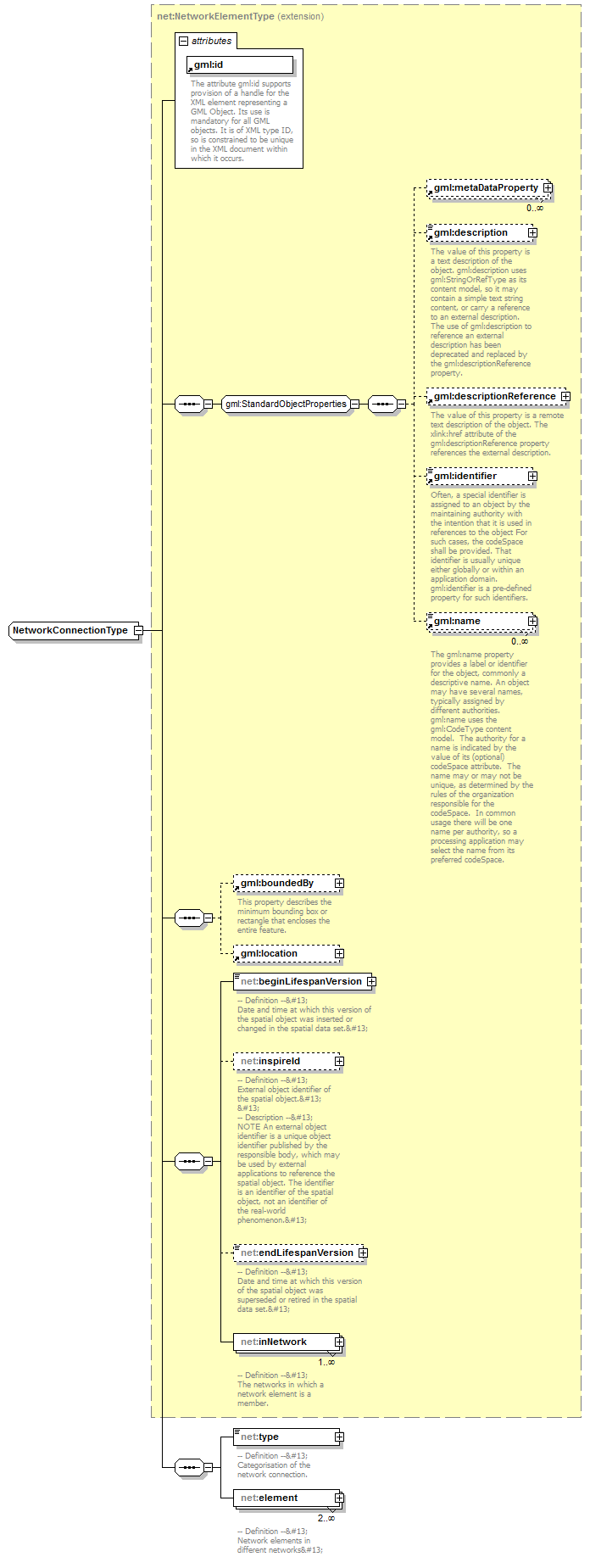

diagram AirQualityReporting_p2009.png
namespace urn:x-inspire:specification:gmlas:Network:3.2
type extension of net:NetworkElementType
properties
base net:NetworkElementType
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:beginLifespanVersion net:inspireId net:endLifespanVersion net:inNetwork net:type net:element
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element NetworkConnectionType/type

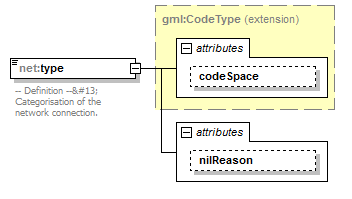

diagram AirQualityReporting_p2010.png
namespace urn:x-inspire:specification:gmlas:Network:3.2
type extension of gml:CodeType
properties
isRef 0
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
codeSpaceanyURI
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Categorisation of the network connection.

attribute NetworkConnectionType/type/@nilReason
type gml:NilReasonType
properties
isRef 0

element NetworkConnectionType/element

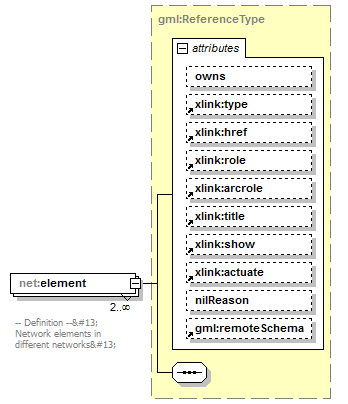

diagram AirQualityReporting_p2011.png
namespace urn:x-inspire:specification:gmlas:Network:3.2
type gml:ReferenceType
properties
isRef 0
minOcc 2
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
ownsboolean  false
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
annotation
documentation
-- Definition --
Network elements in different networks
appinfo
<targetElement xmlns="http://www.opengis.net/gml/3.2">net:NetworkElement</targetElement>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
