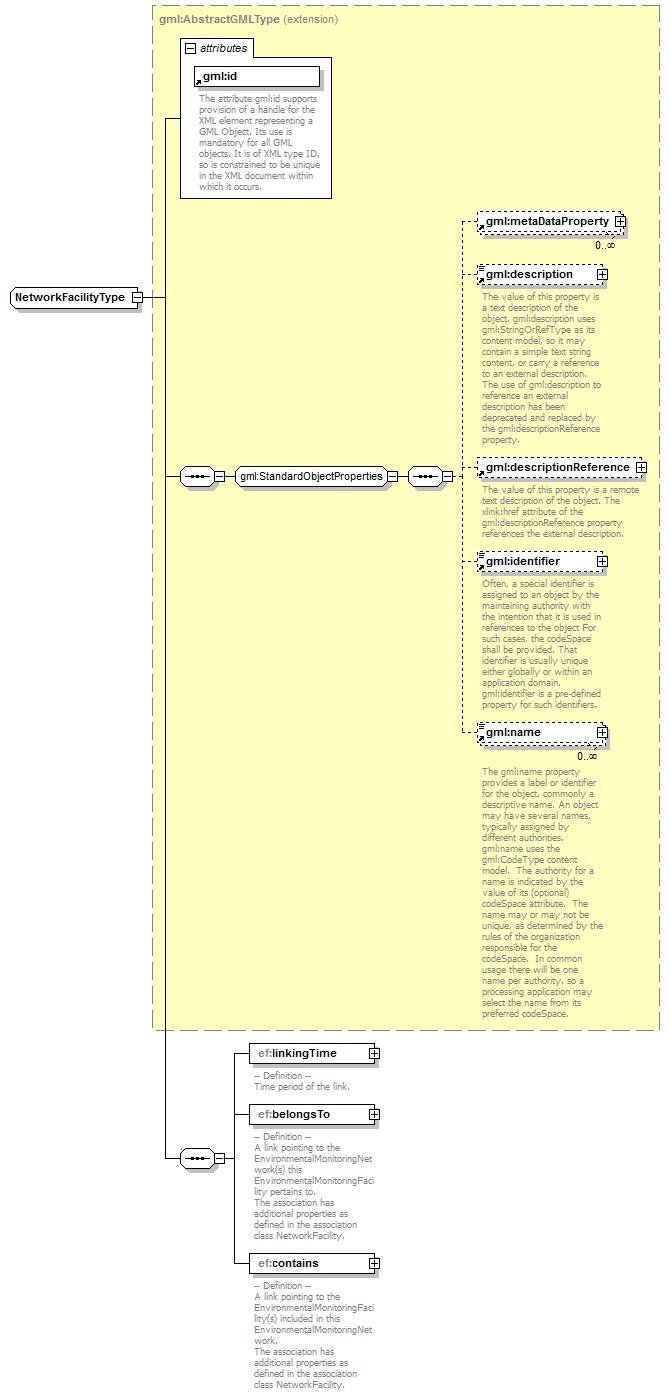

complexType NetworkFacilityType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractGMLType
properties	base  gml:AbstractGMLType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name ef:linkingTime ef:belongsTo ef:contains
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

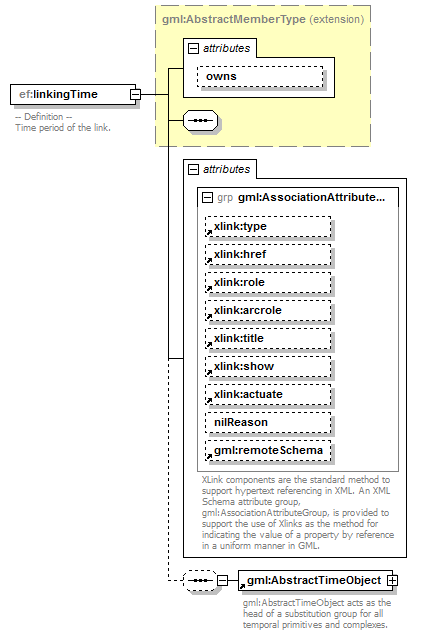

element NetworkFacilityType/linkingTime

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractMemberType
properties	isRef  0 content  complex nillable  true
children	gml:AbstractTimeObject
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Time period of the link.

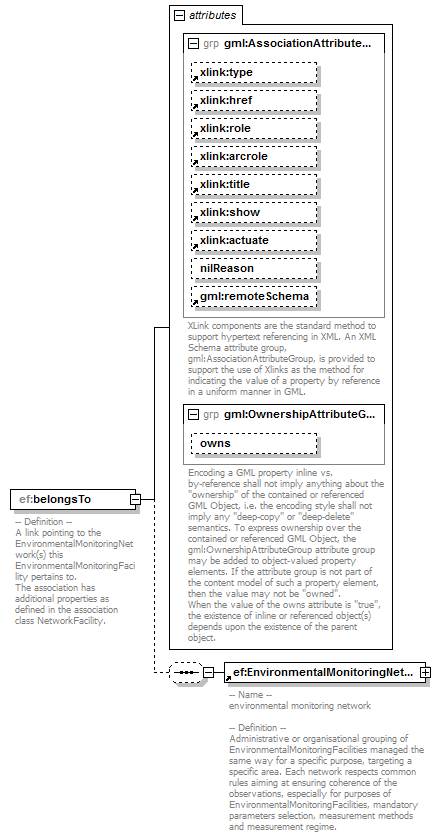

element NetworkFacilityType/belongsTo

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 content  complex nillable  true
children	ef:EnvironmentalMonitoringNetwork
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- A link pointing to the EnvironmentalMonitoringNetwork(s) this EnvironmentalMonitoringFacility pertains to. The association has additional properties as defined in the association class NetworkFacility. appinfo <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:contains</reversePropertyName>

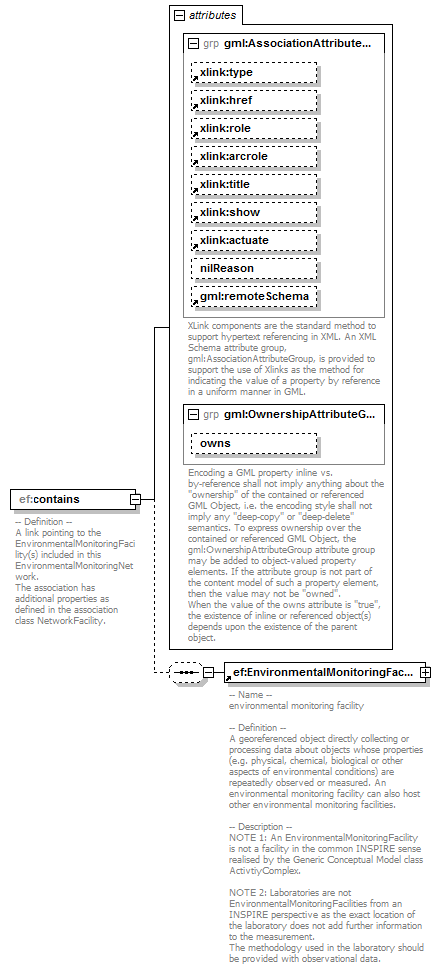

element NetworkFacilityType/contains

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 content  complex nillable  true
children	ef:EnvironmentalMonitoringFacility
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- A link pointing to the EnvironmentalMonitoringFacility(s) included in this EnvironmentalMonitoringNetwork. The association has additional properties as defined in the association class NetworkFacility. appinfo <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:belongsTo</reversePropertyName>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
