complexType NetworkType

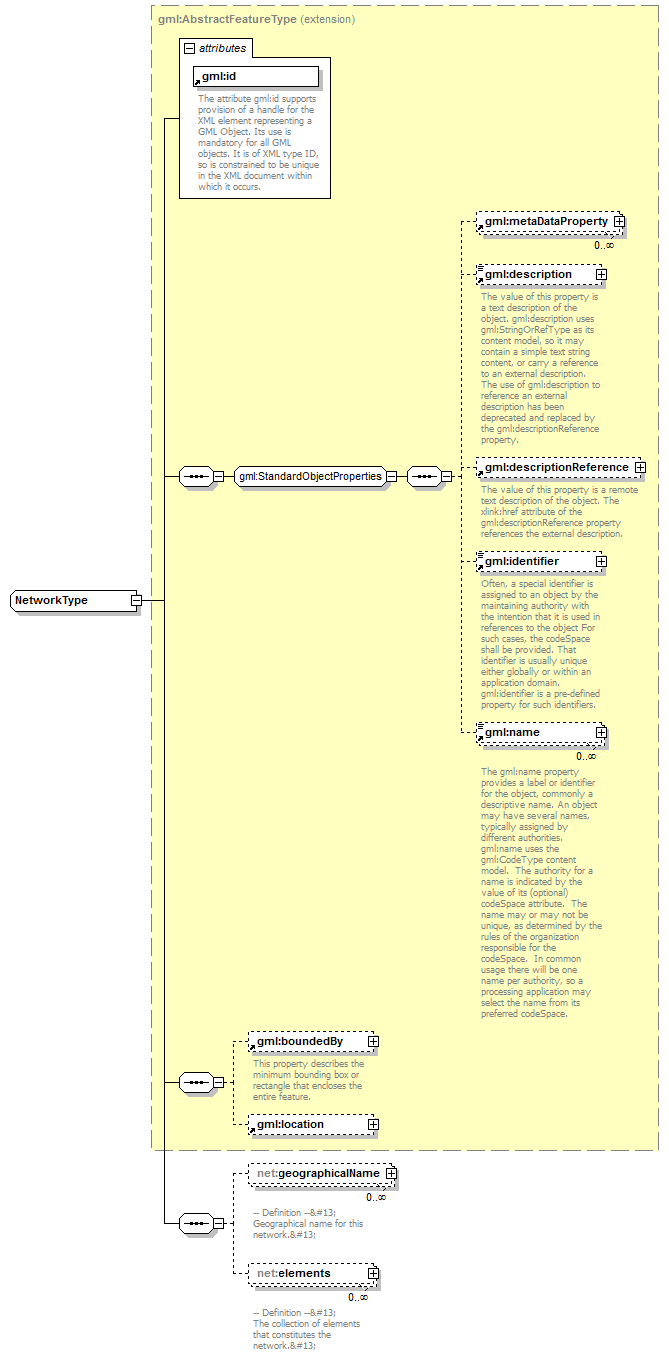

diagram AirQualityReporting_p2027.png
namespace urn:x-inspire:specification:gmlas:Network:3.2
type extension of gml:AbstractFeatureType
properties
base gml:AbstractFeatureType
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:geographicalName net:elements
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element NetworkType/geographicalName

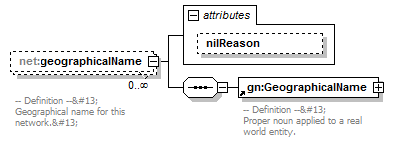

diagram AirQualityReporting_p2028.png
namespace urn:x-inspire:specification:gmlas:Network:3.2
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
nillable true
children gn:GeographicalName
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Geographical name for this network.

attribute NetworkType/geographicalName/@nilReason
type gml:NilReasonType
properties
isRef 0

element NetworkType/elements

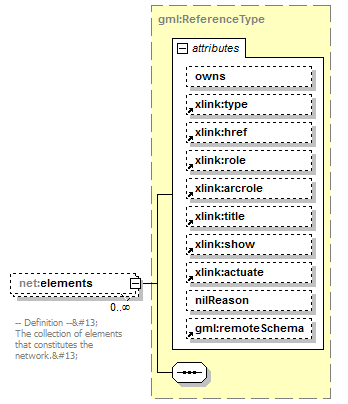

diagram AirQualityReporting_p2029.png
namespace urn:x-inspire:specification:gmlas:Network:3.2
type gml:ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
ownsboolean  false
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
annotation
documentation
-- Definition --
The collection of elements that constitutes the network.
appinfo
<targetElement xmlns="http://www.opengis.net/gml/3.2">net:NetworkElement</targetElement>
<reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:inNetwork</reversePropertyName>
