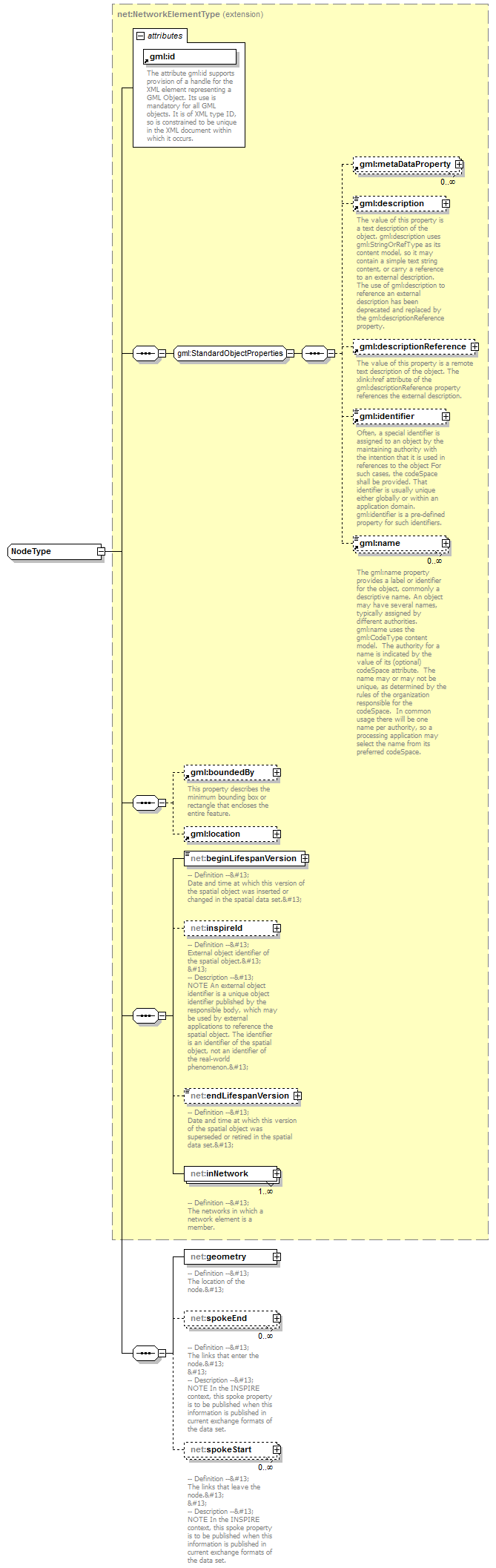

complexType NodeType

diagram
namespace	urn:x-inspire:specification:gmlas:Network:3.2
type	extension of net:NetworkElementType
properties	base  net:NetworkElementType abstract  true
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:beginLifespanVersion net:inspireId net:endLifespanVersion net:inNetwork net:geometry net:spokeEnd net:spokeStart
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

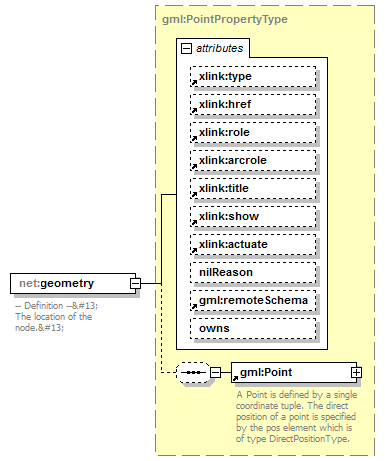

element NodeType/geometry

diagram
namespace	urn:x-inspire:specification:gmlas:Network:3.2
type	gml:PointPropertyType
properties	isRef  0 content  complex
children	gml:Point
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition --
 The location of the node.


element NodeType/spokeEnd

diagram
namespace	urn:x-inspire:specification:gmlas:Network:3.2
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition --&#13; The links that enter the node.&#13; &#13; -- Description --&#13; NOTE In the INSPIRE context, this spoke property is to be published when this information is published in current exchange formats of the data set. appinfo <targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement> <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:endNode</reversePropertyName>

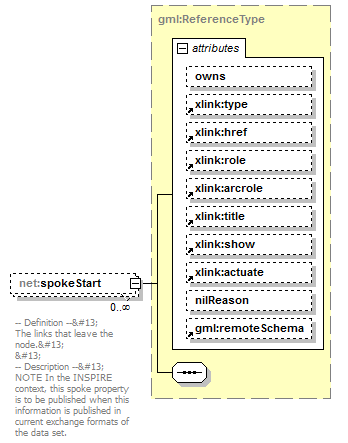

element NodeType/spokeStart

diagram
namespace	urn:x-inspire:specification:gmlas:Network:3.2
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition --&#13; The links that leave the node.&#13; &#13; -- Description --&#13; NOTE In the INSPIRE context, this spoke property is to be published when this information is published in current exchange formats of the data set. appinfo <targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement> <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">net:startNode</reversePropertyName>
