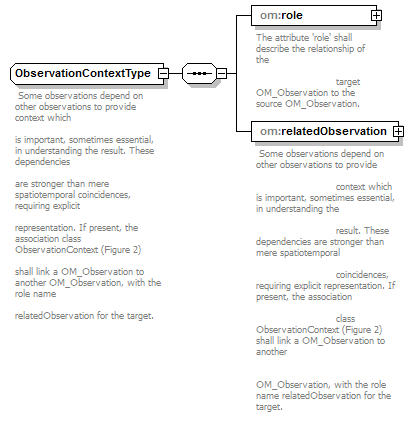

complexType ObservationContextType

diagram
namespace	http://www.opengis.net/om/2.0
children	om:role om:relatedObservation
annotation	documentation Some observations depend on other observations to provide context which is important, sometimes essential, in understanding the result. These dependencies are stronger than mere spatiotemporal coincidences, requiring explicit representation. If present, the association class ObservationContext (Figure 2) shall link a OM_Observation to another OM_Observation, with the role name relatedObservation for the target.

element ObservationContextType/role

diagram
namespace	http://www.opengis.net/om/2.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation The attribute 'role' shall describe the relationship of the target OM_Observation to the source OM_Observation.

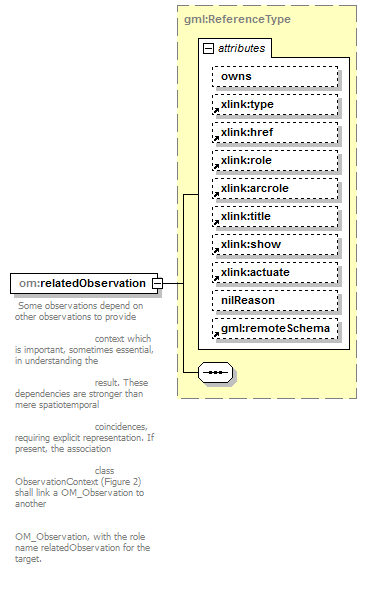

element ObservationContextType/relatedObservation

diagram
namespace	http://www.opengis.net/om/2.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	appinfo <gml:targetElement>om:OM_Observation</gml:targetElement> documentation Some observations depend on other observations to provide context which is important, sometimes essential, in understanding the result. These dependencies are stronger than mere spatiotemporal coincidences, requiring explicit representation. If present, the association class ObservationContext (Figure 2) shall link a OM_Observation to another OM_Observation, with the role name relatedObservation for the target.
