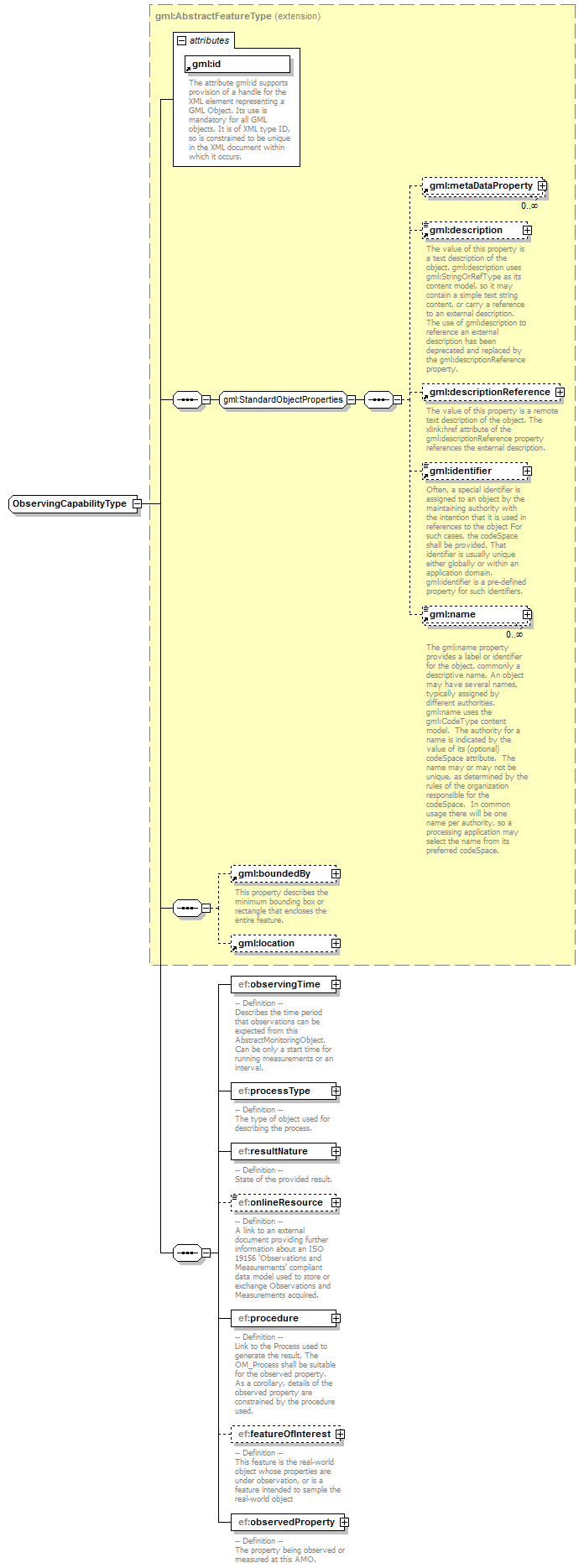

complexType ObservingCapabilityType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ef:observingTime ef:processType ef:resultNature ef:onlineResource ef:procedure ef:featureOfInterest ef:observedProperty
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

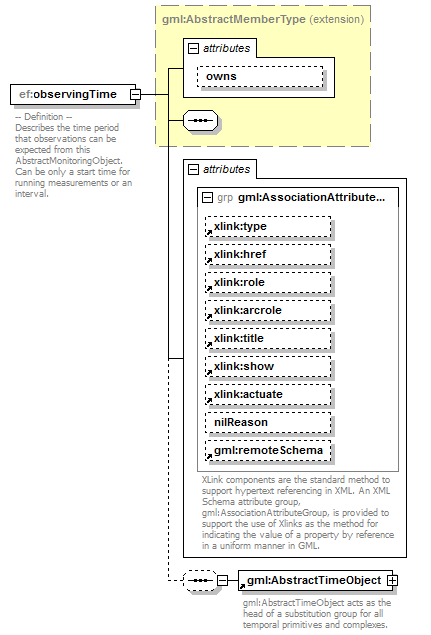

element ObservingCapabilityType/observingTime

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractMemberType
properties	isRef  0 content  complex nillable  true
children	gml:AbstractTimeObject
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Describes the time period that observations can be expected from this AbstractMonitoringObject. Can be only a start time for running measurements or an interval.

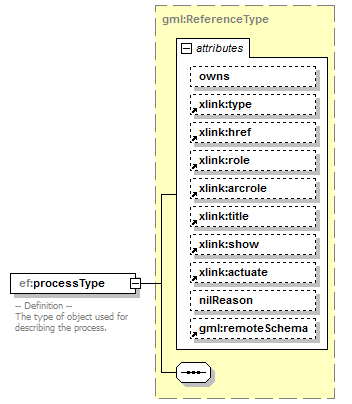

element ObservingCapabilityType/processType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:ReferenceType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- The type of object used for describing the process.

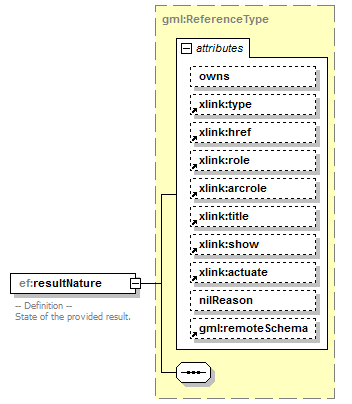

element ObservingCapabilityType/resultNature

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:ReferenceType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- State of the provided result.

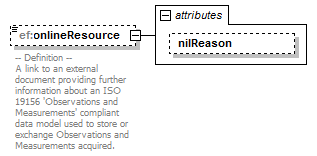

element ObservingCapabilityType/onlineResource

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of anyURI
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- A link to an external document providing further information about an ISO 19156 'Observations and Measurements' compliant data model used to store or exchange Observations and Measurements acquired.

attribute ObservingCapabilityType/onlineResource/@nilReason

type	gml:NilReasonType
properties	isRef  0

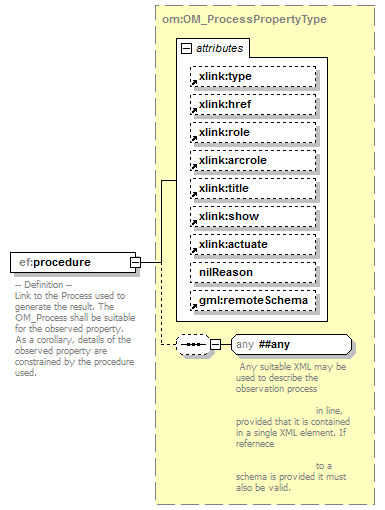

element ObservingCapabilityType/procedure

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	om:OM_ProcessPropertyType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Link to the Process used to generate the result. The OM_Process shall be suitable for the observed property. As a corollary, details of the observed property are constrained by the procedure used.

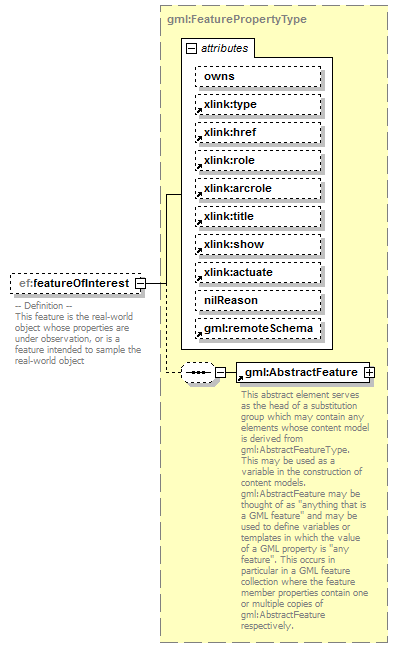

element ObservingCapabilityType/featureOfInterest

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:FeaturePropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	gml:AbstractFeature
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- This feature is the real-world object whose properties are under observation, or is a feature intended to sample the real-world object

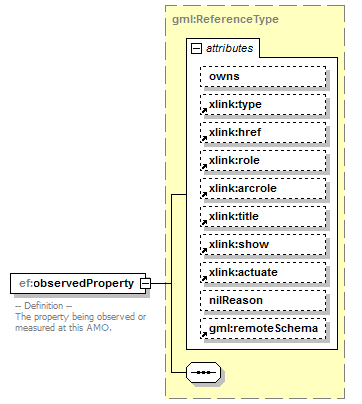

element ObservingCapabilityType/observedProperty

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- The property being observed or measured at this AMO.
