complexType OfficialJournalInformationType

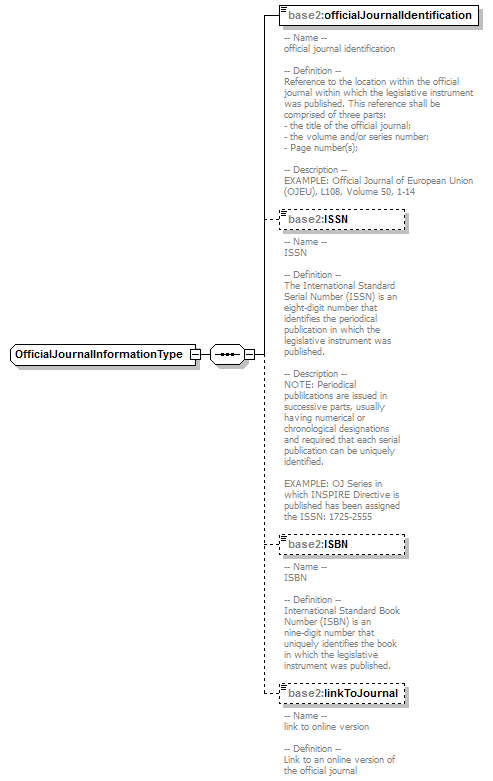

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
children	base2:officialJournalIdentification base2:ISSN base2:ISBN base2:linkToJournal

element OfficialJournalInformationType/officialJournalIdentification

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- official journal identification -- Definition -- Reference to the location within the official journal within which the legislative instrument was published. This reference shall be comprised of three parts: - the title of the official journal; - the volume and/or series number; - Page number(s); -- Description -- EXAMPLE: Official Journal of European Union (OJEU), L108, Volume 50, 1-14

element OfficialJournalInformationType/ISSN

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- ISSN -- Definition -- The International Standard Serial Number (ISSN) is an eight-digit number that identifies the periodical publication in which the legislative instrument was published. -- Description -- NOTE: Periodical publilcations are issued in successive parts, usually having numerical or chronological designations and required that each serial publication can be uniquely identified. EXAMPLE: OJ Series in which INSPIRE Directive is published has been assigned the ISSN: 1725-2555

element OfficialJournalInformationType/ISBN

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- ISBN -- Definition -- International Standard Book Number (ISBN) is an nine-digit number that uniquely identifies the book in which the legislative instrument was published.

element OfficialJournalInformationType/linkToJournal

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	anyURI
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- link to online version -- Definition -- Link to an online version of the official journal
