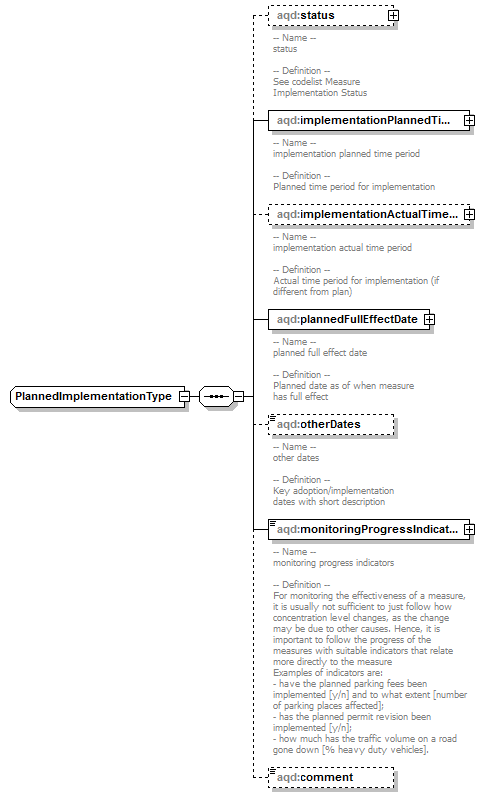

complexType PlannedImplementationType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:status aqd:implementationPlannedTimePeriod aqd:implementationActualTimePeriod aqd:plannedFullEffectDate aqd:otherDates aqd:monitoringProgressIndicators aqd:comment

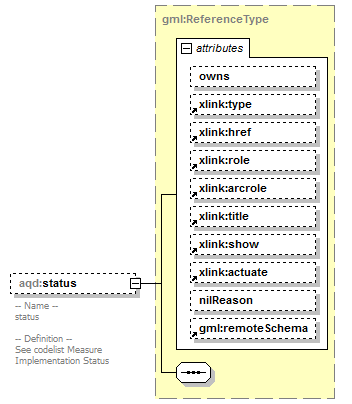

element PlannedImplementationType/status

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- status -- Definition -- See codelist Measure Implementation Status

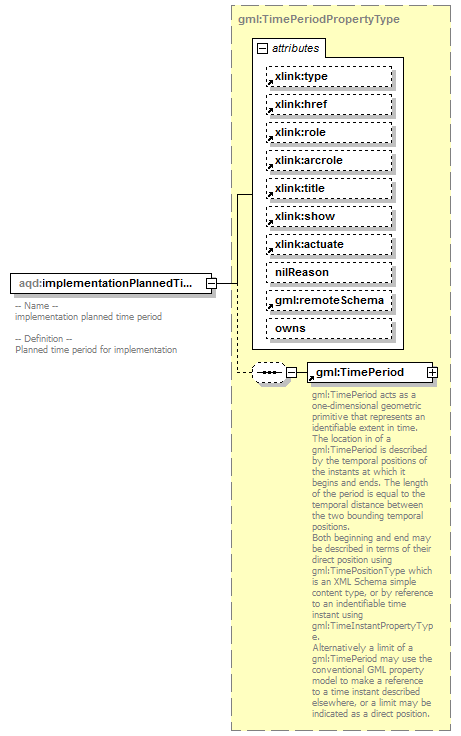

element PlannedImplementationType/implementationPlannedTimePeriod

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:TimePeriodPropertyType
properties	isRef  0 content  complex
children	gml:TimePeriod
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- implementation planned time period -- Definition -- Planned time period for implementation

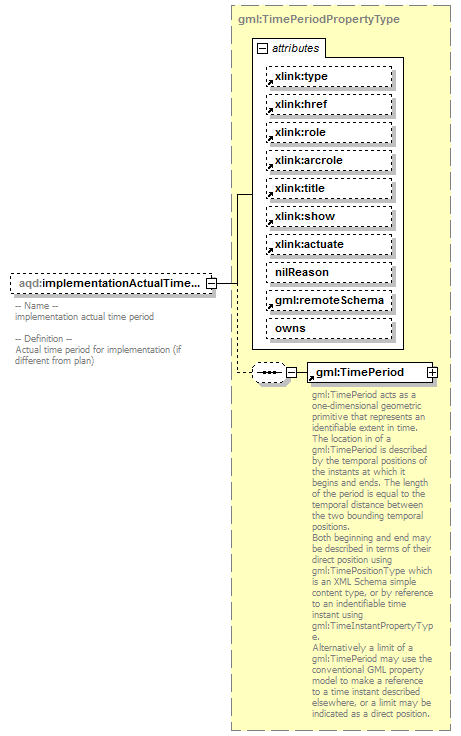

element PlannedImplementationType/implementationActualTimePeriod

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:TimePeriodPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gml:TimePeriod
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- implementation actual time period -- Definition -- Actual time period for implementation (if different from plan)

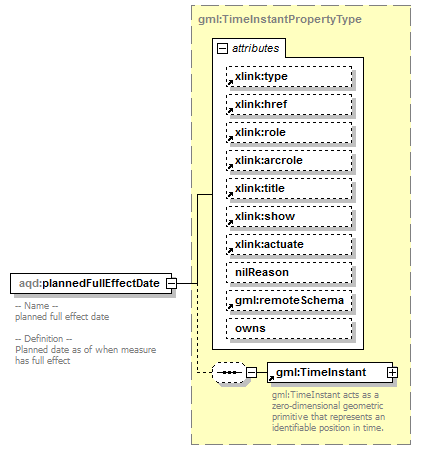

element PlannedImplementationType/plannedFullEffectDate

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:TimeInstantPropertyType
properties	isRef  0 content  complex nillable  true
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- planned full effect date -- Definition -- Planned date as of when measure has full effect

element PlannedImplementationType/otherDates

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- other dates -- Definition -- Key adoption/implementation dates with short description

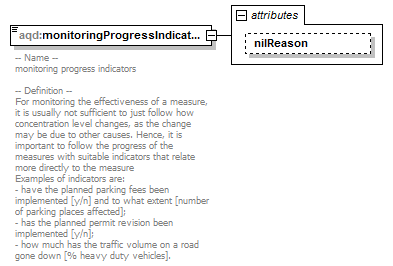

element PlannedImplementationType/monitoringProgressIndicators

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of string
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- monitoring progress indicators -- Definition -- For monitoring the effectiveness of a measure, it is usually not sufficient to just follow how concentration level changes, as the change may be due to other causes. Hence, it is important to follow the progress of the measures with suitable indicators that relate more directly to the measure Examples of indicators are: - have the planned parking fees been implemented [y/n] and to what extent [number of parking places affected]; - has the planned permit revision been implemented [y/n]; - how much has the traffic volume on a road gone down [% heavy duty vehicles].

attribute PlannedImplementationType/monitoringProgressIndicators/@nilReason

type	gml:NilReasonType
properties	isRef  0

element PlannedImplementationType/comment

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
