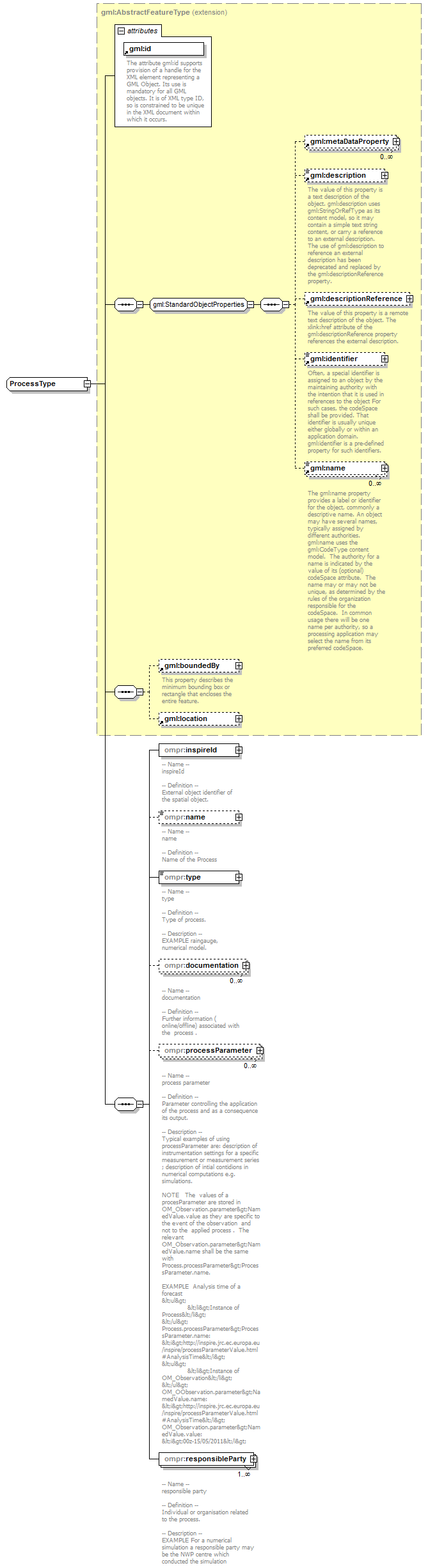

complexType ProcessType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ompr/2.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ompr:inspireId ompr:name ompr:type ompr:documentation ompr:processParameter ompr:responsibleParty
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

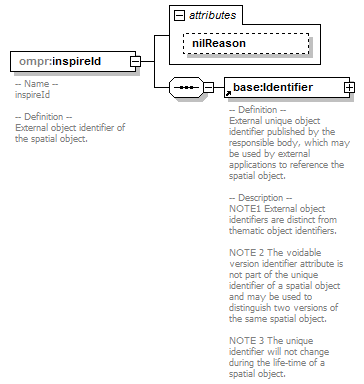

element ProcessType/inspireId

diagram
namespace	http://inspire.ec.europa.eu/schemas/ompr/2.0
properties	isRef  0 content  complex nillable  true
children	base:Identifier
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- inspireId -- Definition -- External object identifier of the spatial object.

attribute ProcessType/inspireId/@nilReason

type	gml:NilReasonType
properties	isRef  0

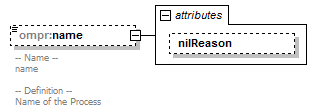

element ProcessType/name

diagram
namespace	http://inspire.ec.europa.eu/schemas/ompr/2.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- name -- Definition -- Name of the Process

attribute ProcessType/name/@nilReason

type	gml:NilReasonType
properties	isRef  0

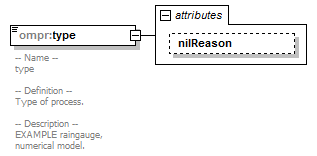

element ProcessType/type

diagram
namespace	http://inspire.ec.europa.eu/schemas/ompr/2.0
type	extension of string
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- type -- Definition -- Type of process. -- Description -- EXAMPLE raingauge, numerical model.

attribute ProcessType/type/@nilReason

type	gml:NilReasonType
properties	isRef  0

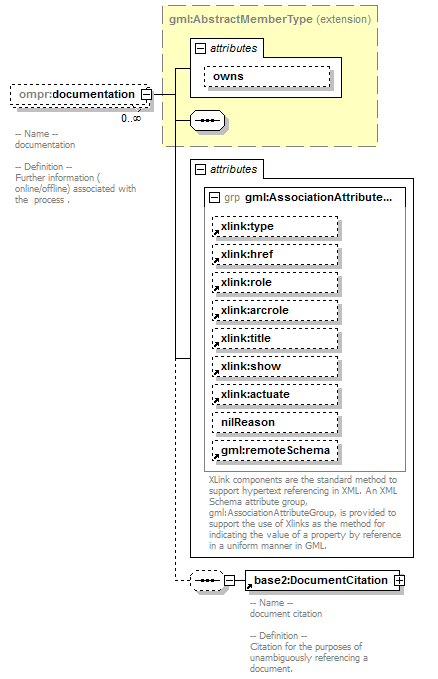

element ProcessType/documentation

diagram
namespace	http://inspire.ec.europa.eu/schemas/ompr/2.0
type	extension of gml:AbstractMemberType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	base2:DocumentCitation
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- documentation -- Definition -- Further information ( online/offline) associated with the  process .

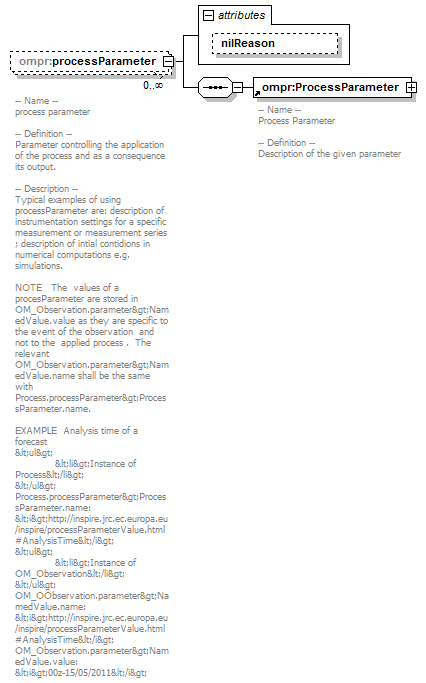

element ProcessType/processParameter

diagram
namespace	http://inspire.ec.europa.eu/schemas/ompr/2.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	ompr:ProcessParameter
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- process parameter -- Definition -- Parameter controlling the application of the process and as a consequence its output. -- Description -- Typical examples of using processParameter are: description of  instrumentation settings for a specific measurement or measurement series ; description of intial contidions in  numerical computations e.g. simulations.  NOTE   The  values of a procesParameter are stored in  OM_Observation.parameter>NamedValue.value as they are specific to the event of the observation  and not to the  applied process .  The relevant OM_Observation.parameter>NamedValue.name shall be the same with Process.processParameter>ProcessParameter.name. EXAMPLE  Analysis time of a forecast <ul> <li>Instance of Process</li> </ul> Process.processParameter>ProcessParameter.name: <i>http://inspire.jrc.ec.europa.eu/inspire/processParameterValue.html#AnalysisTime</i> <ul> <li>Instance of OM_Observation</li> </ul> OM_OObservation.parameter>NamedValue.name: <i>http://inspire.jrc.ec.europa.eu/inspire/processParameterValue.html#AnalysisTime</i> OM_Observation.parameter>NamedValue.value: <i>00z-15/05/2011</i>

attribute ProcessType/processParameter/@nilReason

type	gml:NilReasonType
properties	isRef  0

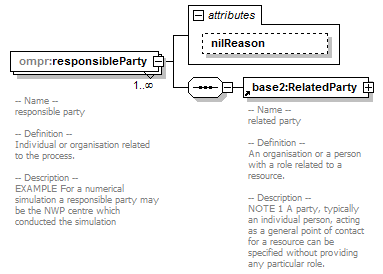

element ProcessType/responsibleParty

diagram
namespace	http://inspire.ec.europa.eu/schemas/ompr/2.0
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex nillable  true
children	base2:RelatedParty
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- responsible party -- Definition -- Individual or organisation related to the process. -- Description -- EXAMPLE For a numerical simulation a responsible party may be the NWP centre which conducted the simulation

attribute ProcessType/responsibleParty/@nilReason

type	gml:NilReasonType
properties	isRef  0
