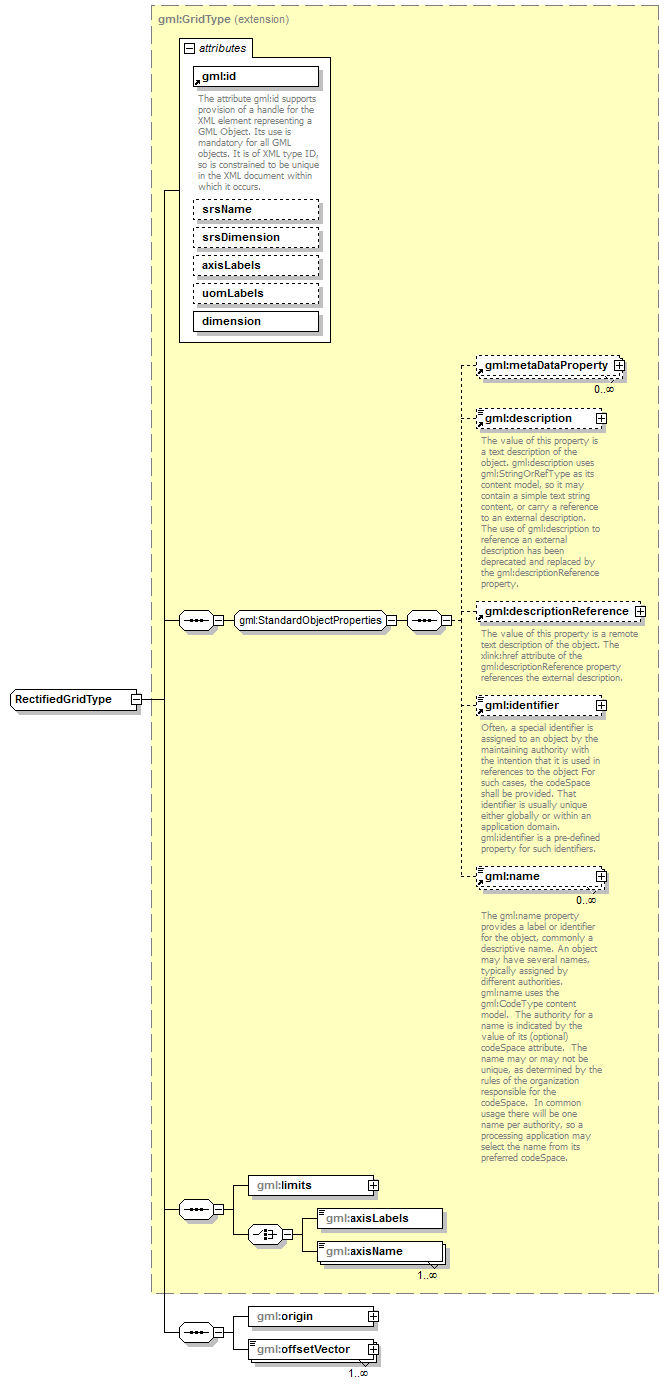

complexType RectifiedGridType

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:GridType
properties	base  gml:GridType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:limits gml:axisLabels gml:axisName gml:origin gml:offsetVector
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList          dimension positiveInteger required

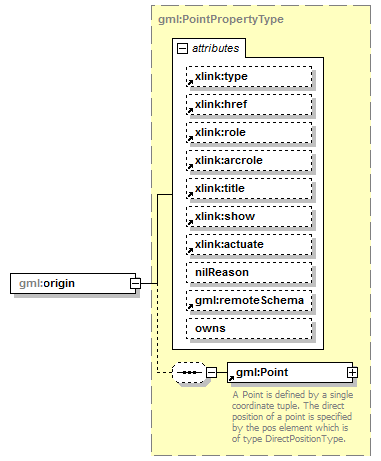

element RectifiedGridType/origin

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:PointPropertyType
properties	isRef  0 content  complex
children	gml:Point
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

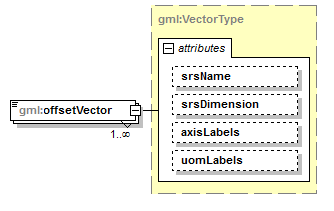

element RectifiedGridType/offsetVector

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:VectorType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList
