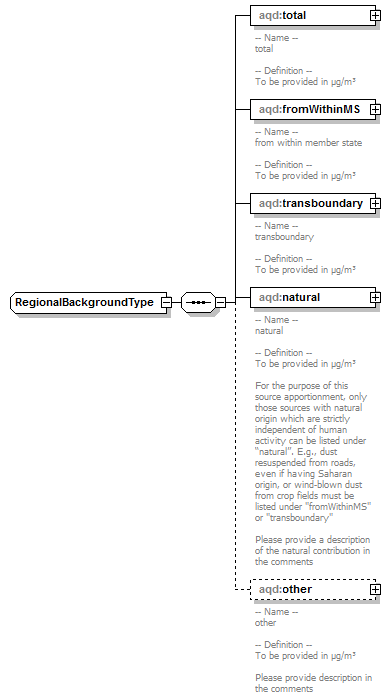

complexType RegionalBackgroundType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:total aqd:fromWithinMS aqd:transboundary aqd:natural aqd:other

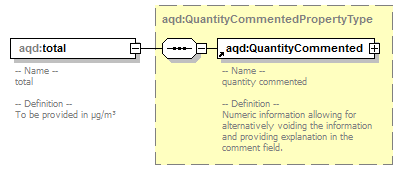

element RegionalBackgroundType/total

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- total -- Definition -- To be provided in µg/m³

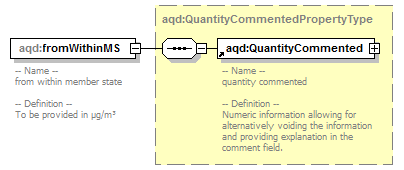

element RegionalBackgroundType/fromWithinMS

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- from within member state -- Definition -- To be provided in µg/m³

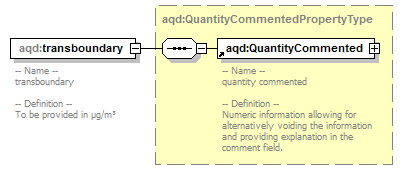

element RegionalBackgroundType/transboundary

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- transboundary -- Definition -- To be provided in µg/m³

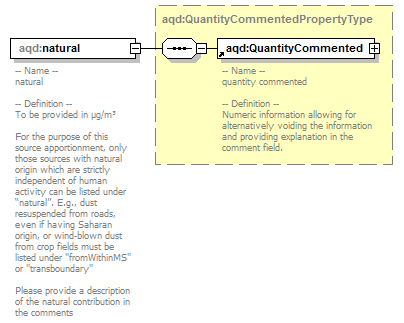

element RegionalBackgroundType/natural

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- natural -- Definition -- To be provided in µg/m³ For the purpose of this source apportionment, only those sources with natural origin which are strictly independent of human activity can be listed under “natural”. E.g., dust resuspended from roads, even if having Saharan origin, or wind-blown dust from crop fields must be listed under "fromWithinMS" or "transboundary" Please provide a description of the natural contribution in the comments

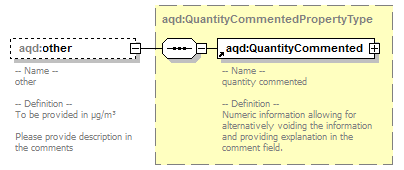

element RegionalBackgroundType/other

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- other -- Definition -- To be provided in µg/m³ Please provide description in the comments
