complexType RelatedPartyType

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
children	base2:individualName base2:organisationName base2:positionName base2:contact base2:role

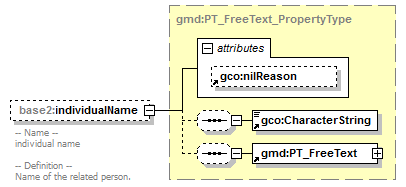

element RelatedPartyType/individualName

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	gmd:PT_FreeText_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	gco:CharacterString gmd:PT_FreeText
attributes	Name   Type   Use   Default   Fixed   annotation nilReason
annotation	documentation -- Name -- individual name -- Definition -- Name of the related person.

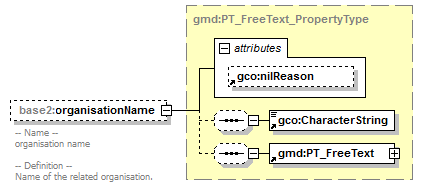

element RelatedPartyType/organisationName

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	gmd:PT_FreeText_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	gco:CharacterString gmd:PT_FreeText
attributes	Name   Type   Use   Default   Fixed   annotation nilReason
annotation	documentation -- Name -- organisation name -- Definition -- Name of the related organisation.

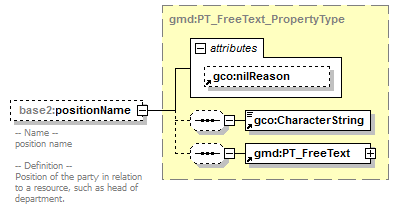

element RelatedPartyType/positionName

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	gmd:PT_FreeText_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	gco:CharacterString gmd:PT_FreeText
attributes	Name   Type   Use   Default   Fixed   annotation nilReason
annotation	documentation -- Name -- position name -- Definition -- Position of the party in relation to a resource, such as head of department.

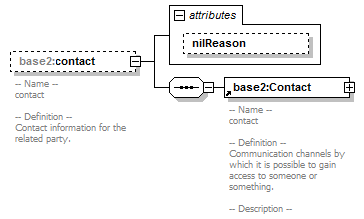

element RelatedPartyType/contact

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	base2:Contact
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- contact -- Definition -- Contact information for the related party.

attribute RelatedPartyType/contact/@nilReason

type	gml:NilReasonType
properties	isRef  0

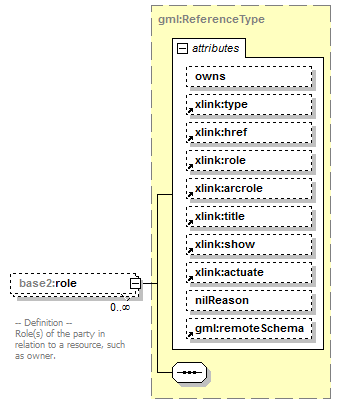

element RelatedPartyType/role

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Role(s) of the party in relation to a resource, such as owner. appinfo <taggedValue xmlns="http://www.interactive-instruments.de/ShapeChange/AppInfo" tag="obligation">TG</taggedValue>
