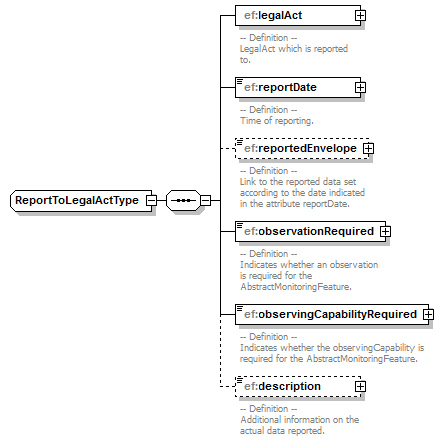

complexType ReportToLegalActType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
children	ef:legalAct ef:reportDate ef:reportedEnvelope ef:observationRequired ef:observingCapabilityRequired ef:description

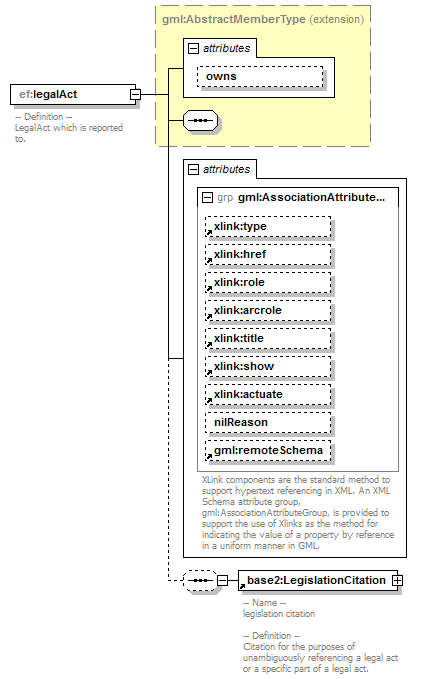

element ReportToLegalActType/legalAct

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractMemberType
properties	isRef  0 content  complex
children	base2:LegislationCitation
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- LegalAct which is reported to.

element ReportToLegalActType/reportDate

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of dateTime
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Time of reporting.

attribute ReportToLegalActType/reportDate/@nilReason

type	gml:NilReasonType
properties	isRef  0

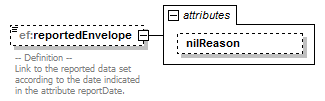

element ReportToLegalActType/reportedEnvelope

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of anyURI
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Link to the reported data set according to the date indicated in the attribute reportDate.

attribute ReportToLegalActType/reportedEnvelope/@nilReason

type	gml:NilReasonType
properties	isRef  0

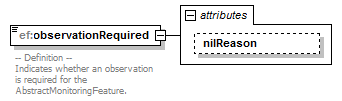

element ReportToLegalActType/observationRequired

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of boolean
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Indicates whether an observation is required for the AbstractMonitoringFeature.

attribute ReportToLegalActType/observationRequired/@nilReason

type	gml:NilReasonType
properties	isRef  0

element ReportToLegalActType/observingCapabilityRequired

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of boolean
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Indicates whether the observingCapability is required for the AbstractMonitoringFeature.

attribute ReportToLegalActType/observingCapabilityRequired/@nilReason

type	gml:NilReasonType
properties	isRef  0

element ReportToLegalActType/description

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Additional information on the actual data reported.

attribute ReportToLegalActType/description/@nilReason

type	gml:NilReasonType
properties	isRef  0
