complexType ScenarioType

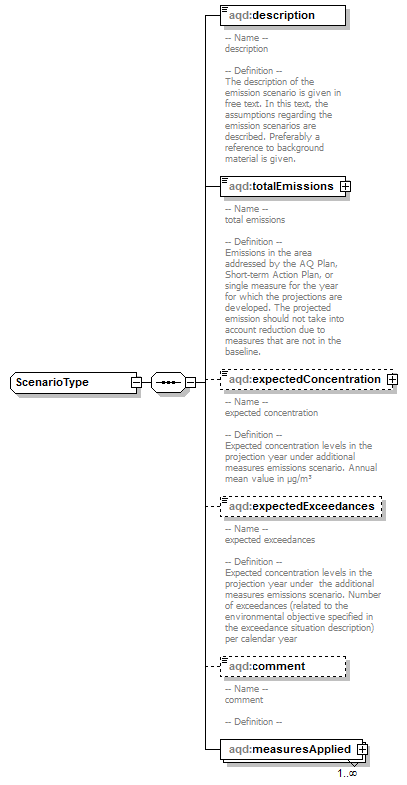

diagram AirQualityReporting_p380.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children aqd:description aqd:totalEmissions aqd:expectedConcentration aqd:expectedExceedances aqd:comment aqd:measuresApplied

element ScenarioType/description
diagram AirQualityReporting_p381.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type string
properties
isRef 0
content simple
annotation
documentation
-- Name --
description

-- Definition --
The description of the emission scenario is given in free text. In this text, the assumptions regarding the emission scenarios are described. Preferably a reference to background material is given.

element ScenarioType/totalEmissions
diagram AirQualityReporting_p382.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type gml:MeasureType
properties
isRef 0
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
uomgml:UomIdentifierrequired
annotation
documentation
-- Name --
total emissions

-- Definition --
Emissions in the area addressed by the AQ Plan, Short-term Action Plan, or single measure for the year for which the projections are developed. The projected emission should not take into account reduction due to measures that are not in the baseline.

element ScenarioType/expectedConcentration
diagram AirQualityReporting_p383.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type gml:MeasureType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
uomgml:UomIdentifierrequired
annotation
documentation
-- Name --
expected concentration

-- Definition --
Expected concentration levels in the projection year under additional measures emissions scenario. Annual mean value in µg/m³

element ScenarioType/expectedExceedances
diagram AirQualityReporting_p384.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type integer
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
-- Name --
expected exceedances

-- Definition --
Expected concentration levels in the projection year under  the additional measures emissions scenario. Number of exceedances (related to the environmental objective specified in the exceedance situation description) per calendar year

element ScenarioType/comment
diagram AirQualityReporting_p385.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
-- Name --
comment

-- Definition --

element ScenarioType/measuresApplied
diagram AirQualityReporting_p386.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:AQD_MeasuresPropertyType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children aqd:AQD_Measures
attributes
Name  Type  Use  Default  Fixed  annotation
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
ownsboolean  false
