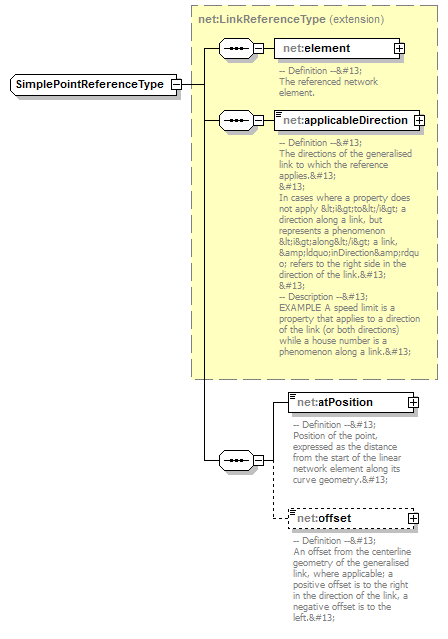

complexType SimplePointReferenceType

diagram
namespace	urn:x-inspire:specification:gmlas:Network:3.2
type	extension of net:LinkReferenceType
properties	base  net:LinkReferenceType
children	net:element net:applicableDirection net:atPosition net:offset

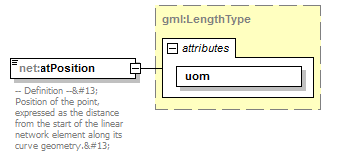

element SimplePointReferenceType/atPosition

diagram
namespace	urn:x-inspire:specification:gmlas:Network:3.2
type	gml:LengthType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Definition --
 Position of the point, expressed as the distance from the start of the linear network element along its curve geometry.

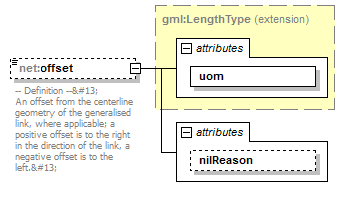

element SimplePointReferenceType/offset

diagram
namespace	urn:x-inspire:specification:gmlas:Network:3.2
type	extension of gml:LengthType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required         nilReason gml:NilReasonType
annotation	documentation -- Definition --
 An offset from the centerline geometry of the generalised link, where applicable; a positive offset is to the right in the direction of the link, a negative offset is to the left.


attribute SimplePointReferenceType/offset/@nilReason

type	gml:NilReasonType
properties	isRef  0
