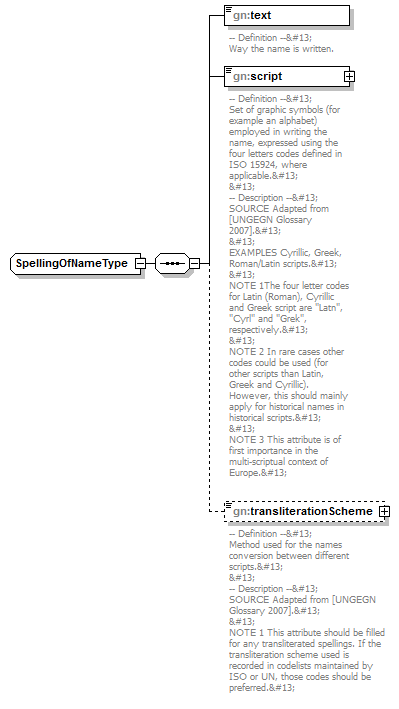

complexType SpellingOfNameType

diagram
namespace	urn:x-inspire:specification:gmlas:GeographicalNames:3.0
children	gn:text gn:script gn:transliterationScheme

element SpellingOfNameType/text

diagram
namespace	urn:x-inspire:specification:gmlas:GeographicalNames:3.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Definition --
 Way the name is written.

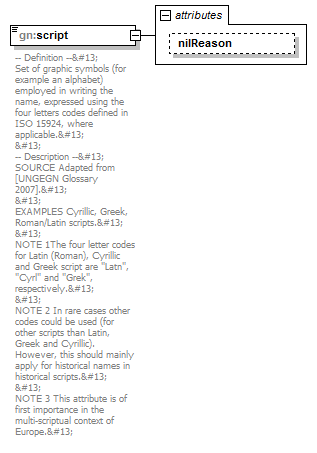

element SpellingOfNameType/script

diagram
namespace	urn:x-inspire:specification:gmlas:GeographicalNames:3.0
type	extension of string
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Set of graphic symbols (for example an alphabet) employed in writing the name, expressed using the four letters codes defined in ISO 15924, where applicable.

 -- Description --
 SOURCE Adapted from [UNGEGN Glossary 2007].

 EXAMPLES Cyrillic, Greek, Roman/Latin scripts.

 NOTE 1The four letter codes for Latin (Roman), Cyrillic and Greek script are "Latn", "Cyrl" and "Grek", respectively.

 NOTE 2 In rare cases other codes could be used (for other scripts than Latin, Greek and Cyrillic). However, this should mainly apply for historical names in historical scripts.

 NOTE 3 This attribute is of first importance in the multi-scriptual context of Europe.


attribute SpellingOfNameType/script/@nilReason

type	gml:NilReasonType
properties	isRef  0

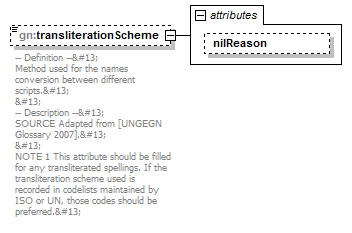

element SpellingOfNameType/transliterationScheme

diagram
namespace	urn:x-inspire:specification:gmlas:GeographicalNames:3.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Method used for the names conversion between different scripts.

 -- Description --
 SOURCE Adapted from [UNGEGN Glossary 2007].

 NOTE 1 This attribute should be filled for any transliterated spellings. If the transliteration scheme used is recorded in codelists maintained by ISO or UN, those codes should be preferred.


attribute SpellingOfNameType/transliterationScheme/@nilReason

type	gml:NilReasonType
properties	isRef  0
