complexType TextEncodingType

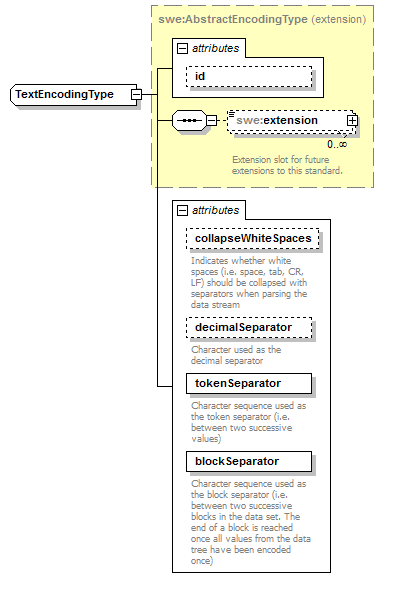

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractEncodingType
properties	base  swe:AbstractEncodingType
children	swe:extension
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         collapseWhiteSpaces boolean optional   true      documentation Indicates whether white spaces (i.e. space, tab, CR, LF) should be collapsed with separators when parsing the data stream decimalSeparator string optional   .      documentation Character used as the decimal separator tokenSeparator string required         documentation Character sequence used as the token separator (i.e. between two successive values) blockSeparator string required         documentation Character sequence used as the block separator (i.e. between two successive blocks in the data set. The end of a block is reached once all values from the data tree have been encoded once)

attribute TextEncodingType/@collapseWhiteSpaces

type	boolean
properties	isRef  0 default  true use  optional
annotation	documentation Indicates whether white spaces (i.e. space, tab, CR, LF) should be collapsed with separators when parsing the data stream

attribute TextEncodingType/@decimalSeparator

type	string
properties	isRef  0 default  . use  optional
annotation	documentation Character used as the decimal separator

attribute TextEncodingType/@tokenSeparator

type	string
properties	isRef  0 use  required
annotation	documentation Character sequence used as the token separator (i.e. between two successive values)

attribute TextEncodingType/@blockSeparator

type	string
properties	isRef  0 use  required
annotation	documentation Character sequence used as the block separator (i.e. between two successive blocks in the data set. The end of a block is reached once all values from the data tree have been encoded once)
