complexType TimeClockType

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:TimeReferenceSystemType
properties	base  gml:TimeReferenceSystemType final  #all
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:remarks gml:domainOfValidity gml:referenceEvent gml:referenceTime gml:utcReference gml:dateBasis
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

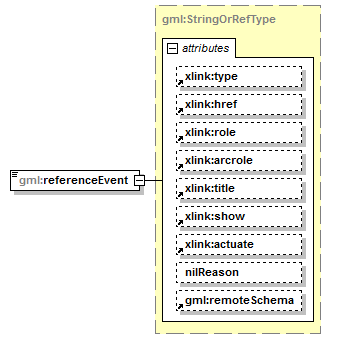

element TimeClockType/referenceEvent

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:StringOrRefType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated

element TimeClockType/referenceTime

diagram
namespace	http://www.opengis.net/gml/3.2
type	time
properties	isRef  0 content  simple

element TimeClockType/utcReference

diagram
namespace	http://www.opengis.net/gml/3.2
type	time
properties	isRef  0 content  simple

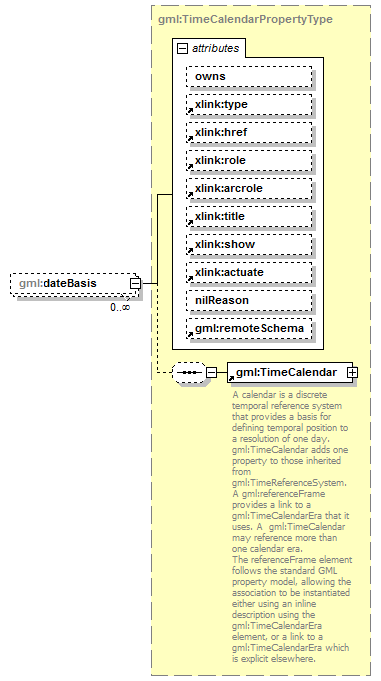

element TimeClockType/dateBasis

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimeCalendarPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gml:TimeCalendar
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
