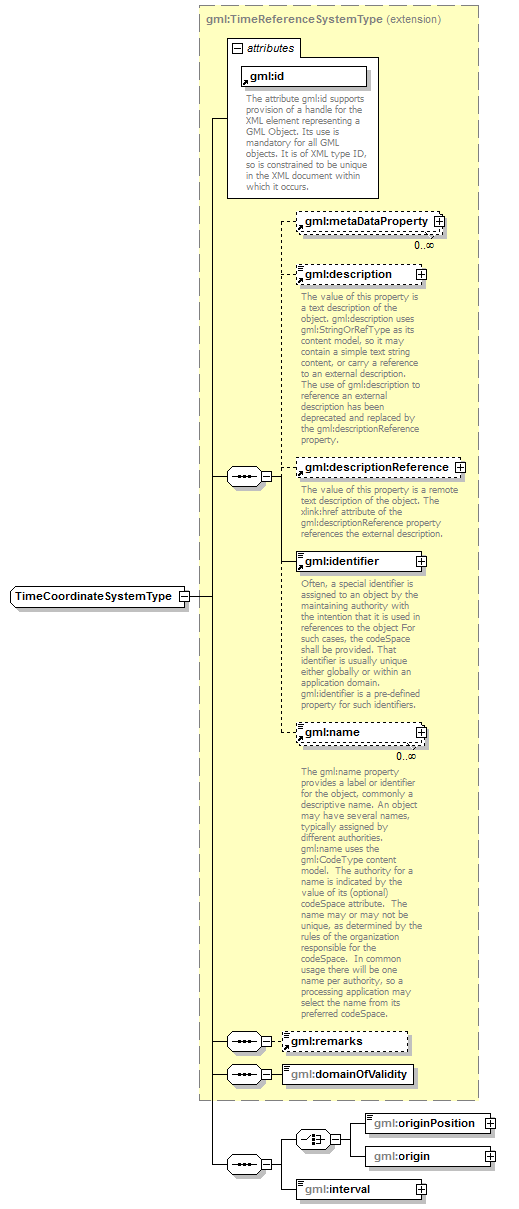

complexType TimeCoordinateSystemType

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:TimeReferenceSystemType
properties	base  gml:TimeReferenceSystemType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:remarks gml:domainOfValidity gml:originPosition gml:origin gml:interval
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

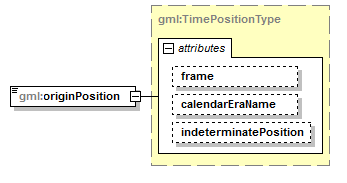

element TimeCoordinateSystemType/originPosition

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimePositionType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation frame anyURI    #ISO-8601      calendarEraName string          indeterminatePosition gml:TimeIndeterminateValueType

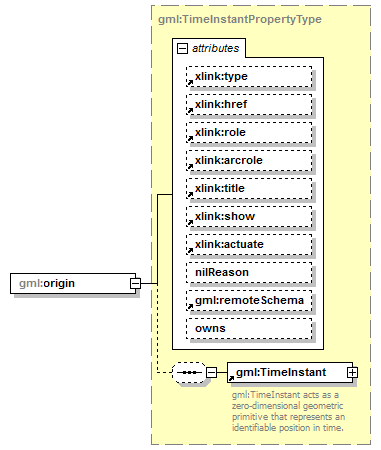

element TimeCoordinateSystemType/origin

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimeInstantPropertyType
properties	isRef  0 content  complex
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

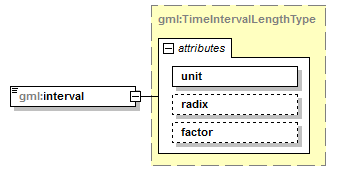

element TimeCoordinateSystemType/interval

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimeIntervalLengthType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unit gml:TimeUnitType required         radix positiveInteger          factor integer
