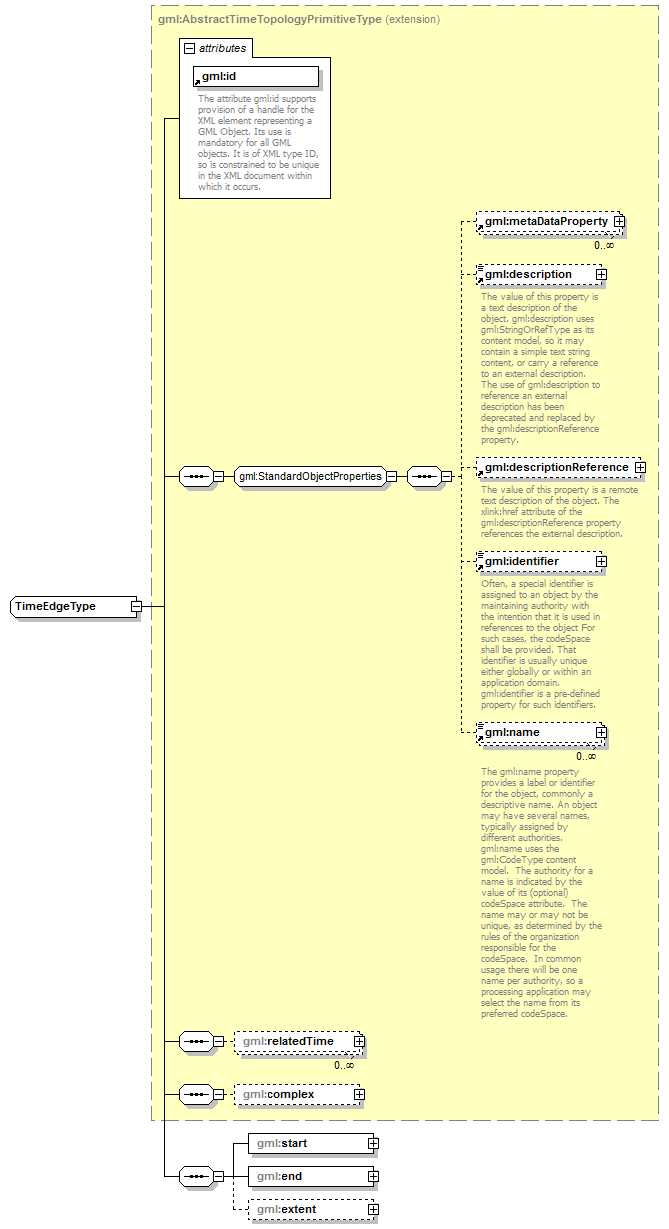

complexType TimeEdgeType

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:AbstractTimeTopologyPrimitiveType
properties	base  gml:AbstractTimeTopologyPrimitiveType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:relatedTime gml:complex gml:start gml:end gml:extent
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

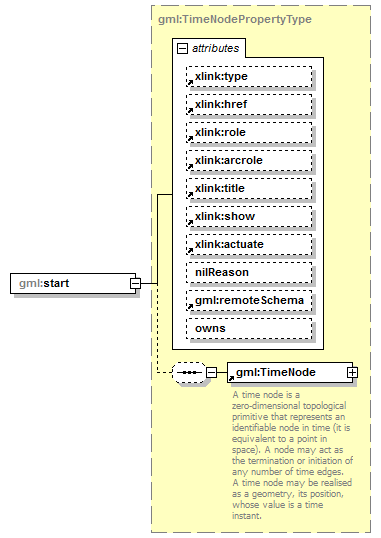

element TimeEdgeType/start

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimeNodePropertyType
properties	isRef  0 content  complex
children	gml:TimeNode
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

element TimeEdgeType/end

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimeNodePropertyType
properties	isRef  0 content  complex
children	gml:TimeNode
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

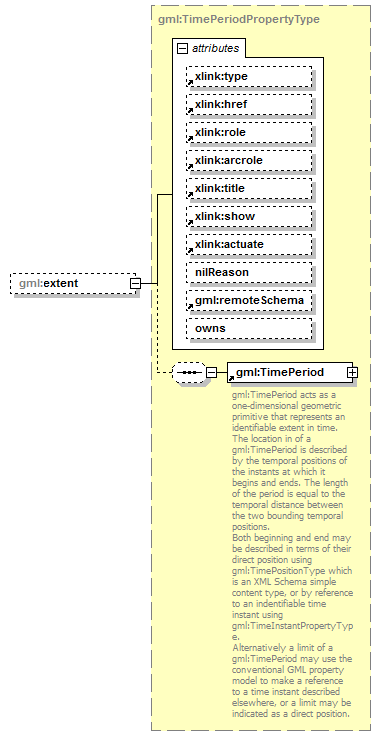

element TimeEdgeType/extent

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimePeriodPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gml:TimePeriod
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
