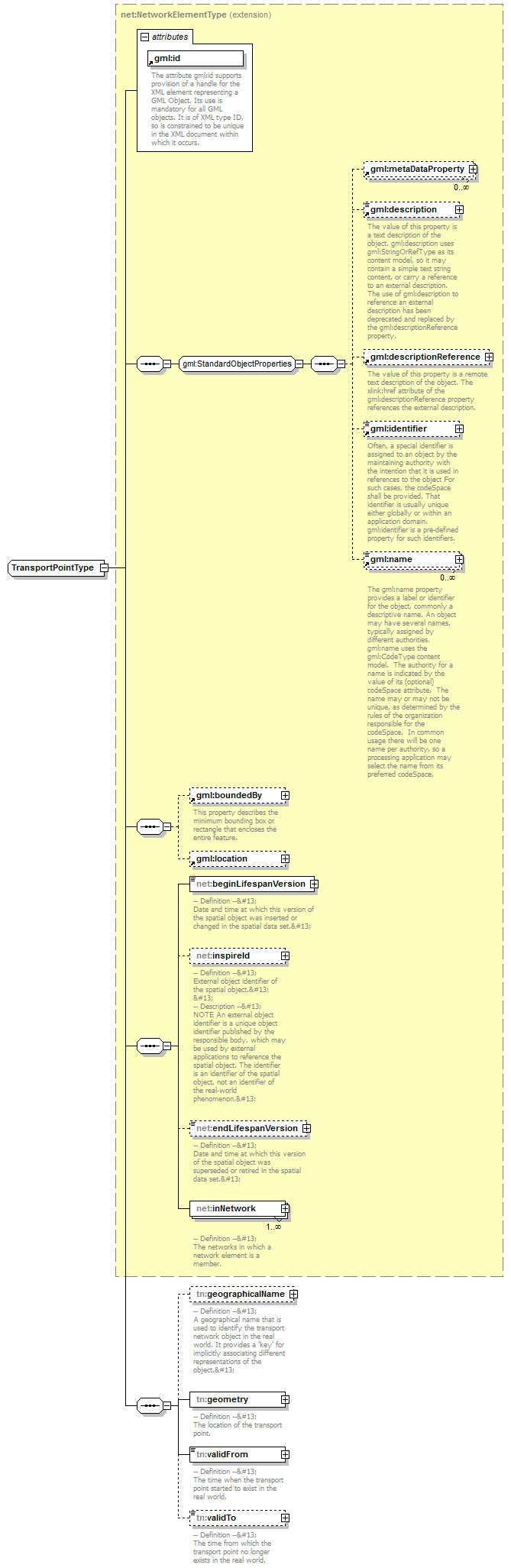

complexType TransportPointType

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of net:NetworkElementType
properties	base  net:NetworkElementType abstract  true
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:beginLifespanVersion net:inspireId net:endLifespanVersion net:inNetwork tn:geographicalName tn:geometry tn:validFrom tn:validTo
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

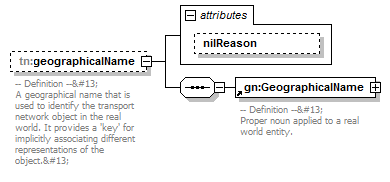

element TransportPointType/geographicalName

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	gn:GeographicalName
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 A geographical name that is used to identify the transport network object in the real world. It provides a 'key' for implicitly associating different representations of the object.


attribute TransportPointType/geographicalName/@nilReason

type	gml:NilReasonType
properties	isRef  0

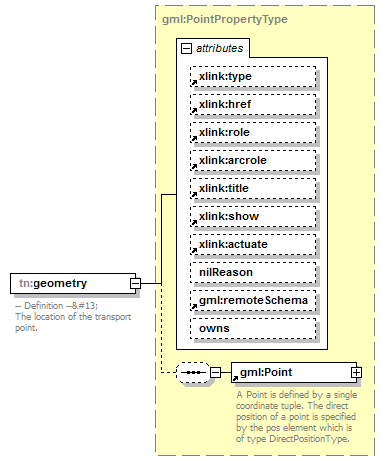

element TransportPointType/geometry

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	gml:PointPropertyType
properties	isRef  0 content  complex
children	gml:Point
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition --
 The location of the transport point.

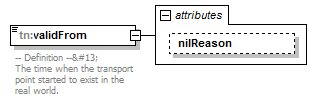

element TransportPointType/validFrom

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of dateTime
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The time when the transport point started to exist in the real world.

attribute TransportPointType/validFrom/@nilReason

type	gml:NilReasonType
properties	isRef  0

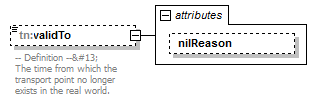

element TransportPointType/validTo

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The time from which the transport point no longer exists in the real world.

attribute TransportPointType/validTo/@nilReason

type	gml:NilReasonType
properties	isRef  0
