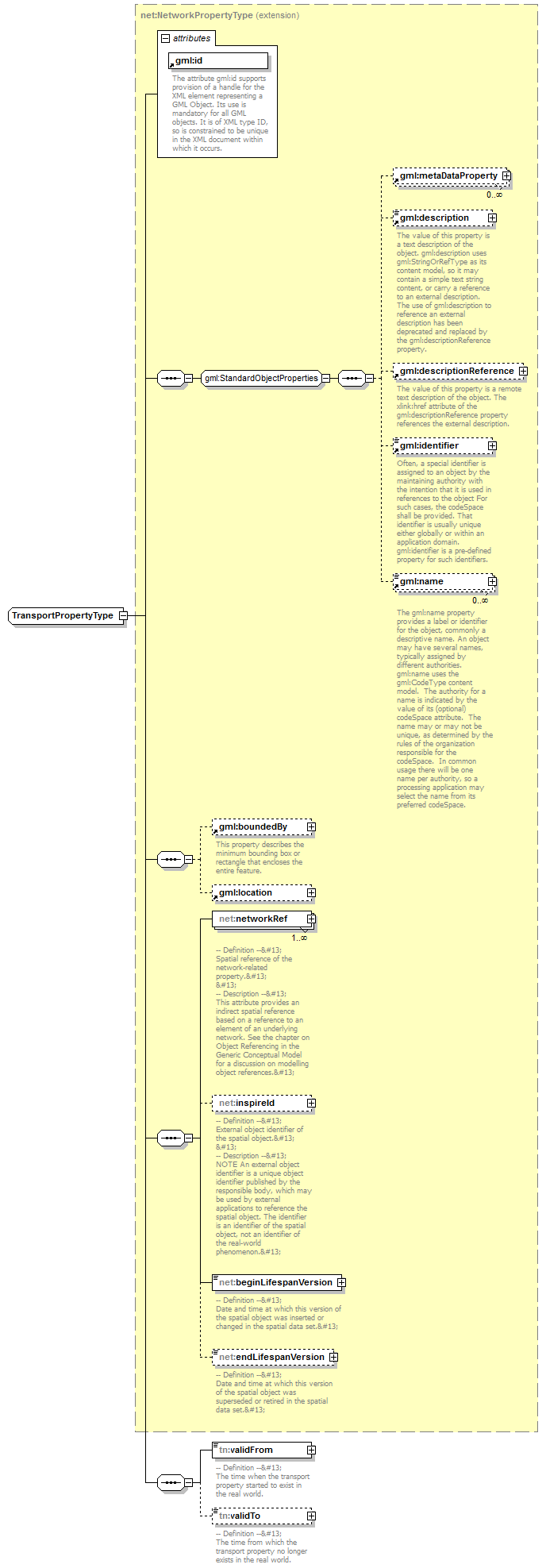

complexType TransportPropertyType

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of net:NetworkPropertyType
properties	base  net:NetworkPropertyType abstract  true
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:networkRef net:inspireId net:beginLifespanVersion net:endLifespanVersion tn:validFrom tn:validTo
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

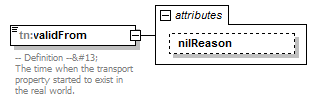

element TransportPropertyType/validFrom

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of dateTime
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The time when the transport property started to exist in the real world.

attribute TransportPropertyType/validFrom/@nilReason

type	gml:NilReasonType
properties	isRef  0

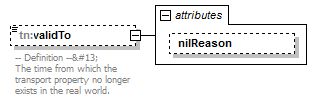

element TransportPropertyType/validTo

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The time from which the transport property no longer exists in the real world.

attribute TransportPropertyType/validTo/@nilReason

type	gml:NilReasonType
properties	isRef  0
