complexType UrbanBackgroundType

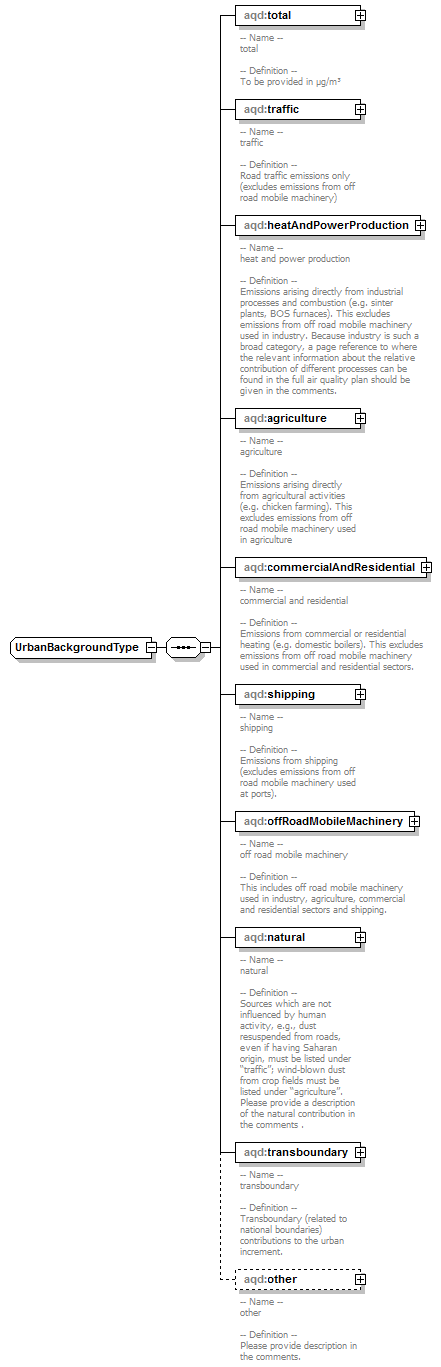

diagram AirQualityReporting_p392.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children aqd:total aqd:traffic aqd:heatAndPowerProduction aqd:agriculture aqd:commercialAndResidential aqd:shipping aqd:offRoadMobileMachinery aqd:natural aqd:transboundary aqd:other

element UrbanBackgroundType/total

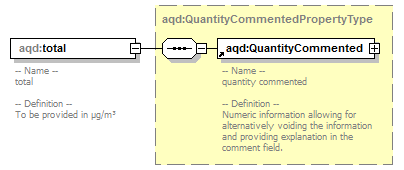

diagram AirQualityReporting_p393.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
total

-- Definition --
To be provided in µg/m³

element UrbanBackgroundType/traffic

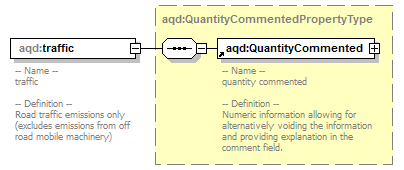

diagram AirQualityReporting_p394.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
traffic

-- Definition --
Road traffic emissions only (excludes emissions from off road mobile machinery)

element UrbanBackgroundType/heatAndPowerProduction

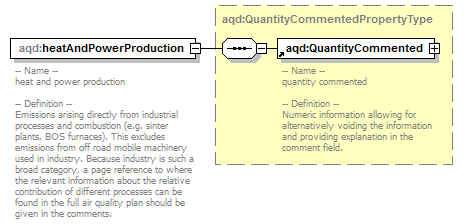

diagram AirQualityReporting_p395.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
heat and power production

-- Definition --
Emissions arising directly from industrial processes and combustion (e.g. sinter plants, BOS furnaces). This excludes emissions from off road mobile machinery used in industry. Because industry is such a broad category, a page reference to where the relevant information about the relative contribution of different processes can be found in the full air quality plan should be given in the comments.

element UrbanBackgroundType/agriculture

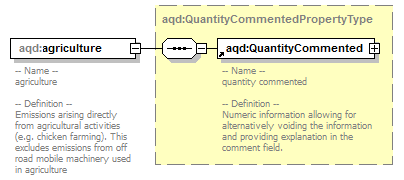

diagram AirQualityReporting_p396.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
agriculture

-- Definition --
Emissions arising directly from agricultural activities (e.g. chicken farming). This excludes emissions from off road mobile machinery used in agriculture

element UrbanBackgroundType/commercialAndResidential

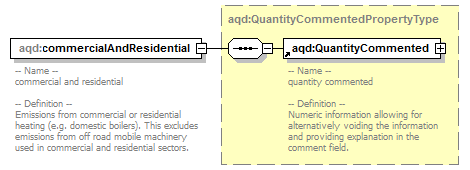

diagram AirQualityReporting_p397.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
commercial and residential

-- Definition --
Emissions from commercial or residential heating (e.g. domestic boilers). This excludes emissions from off road mobile machinery used in commercial and residential sectors.

element UrbanBackgroundType/shipping

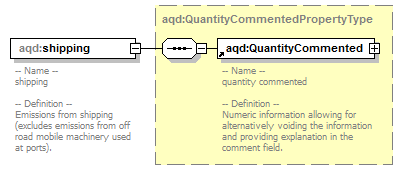

diagram AirQualityReporting_p398.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
shipping

-- Definition --
Emissions from shipping (excludes emissions from off road mobile machinery used at ports).

element UrbanBackgroundType/offRoadMobileMachinery

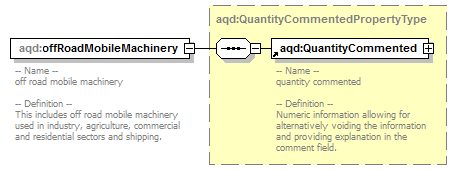

diagram AirQualityReporting_p399.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
off road mobile machinery

-- Definition --
This includes off road mobile machinery used in industry, agriculture, commercial and residential sectors and shipping.

element UrbanBackgroundType/natural

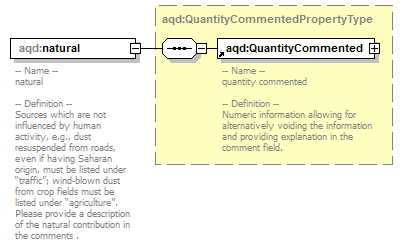

diagram AirQualityReporting_p400.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
natural

-- Definition --
Sources which are not influenced by human activity, e.g., dust resuspended from roads, even if having Saharan origin, must be listed under “traffic”; wind-blown dust from crop fields must be listed under “agriculture”. Please provide a description of the natural contribution in the comments .

element UrbanBackgroundType/transboundary

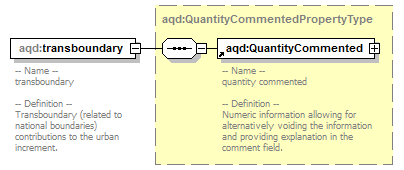

diagram AirQualityReporting_p401.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
transboundary

-- Definition --
Transboundary (related to national boundaries) contributions to the urban increment.

element UrbanBackgroundType/other

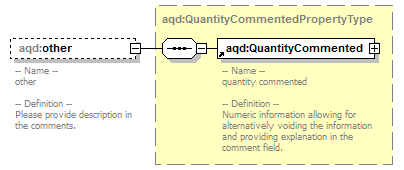

diagram AirQualityReporting_p402.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:QuantityCommentedPropertyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children aqd:QuantityCommented
annotation
documentation
-- Name --
other

-- Definition --
Please provide description in the comments.
