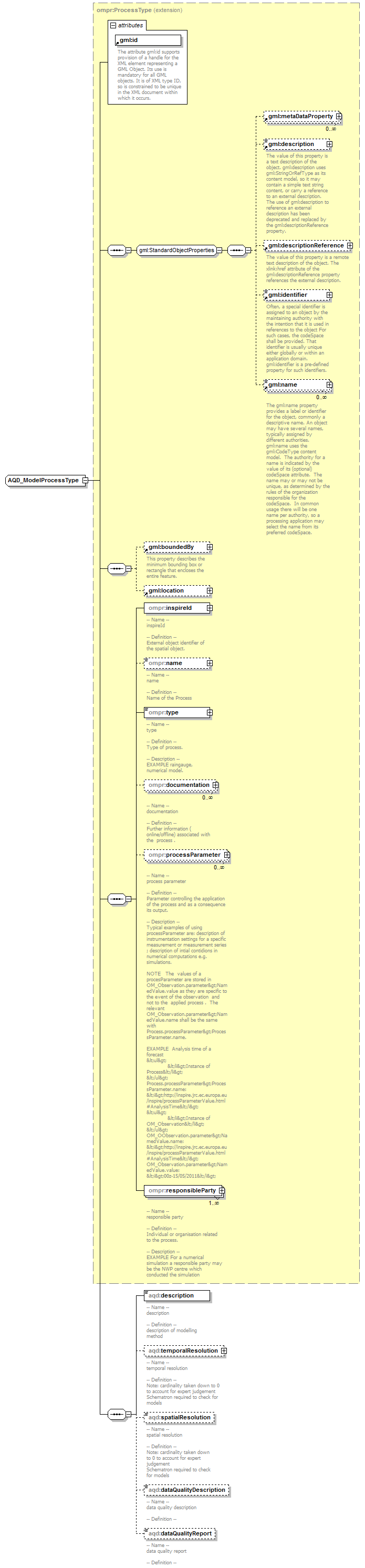

complexType AQD_ModelProcessType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of ompr:ProcessType
properties	base  ompr:ProcessType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ompr:inspireId ompr:name ompr:type ompr:documentation ompr:processParameter ompr:responsibleParty aqd:description aqd:temporalResolution aqd:spatialResolution aqd:dataQualityDescription aqd:dataQualityReport
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element AQD_ModelProcessType/description

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- description -- Definition -- description of modelling method

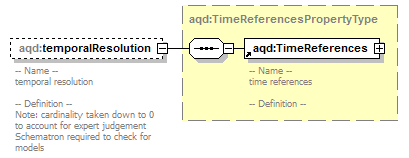

element AQD_ModelProcessType/temporalResolution

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:TimeReferencesPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:TimeReferences
annotation	documentation -- Name -- temporal resolution -- Definition -- Note: cardinality taken down to 0 to account for expert judgement Schematron required to check for models

element AQD_ModelProcessType/spatialResolution

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- spatial resolution -- Definition -- Note: cardinality taken down to 0 to account for expert judgement Schematron required to check for models

element AQD_ModelProcessType/dataQualityDescription

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- data quality description -- Definition --

element AQD_ModelProcessType/dataQualityReport

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	anyURI
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- data quality report -- Definition --
