complexType AQD_RepresentativeAreaType

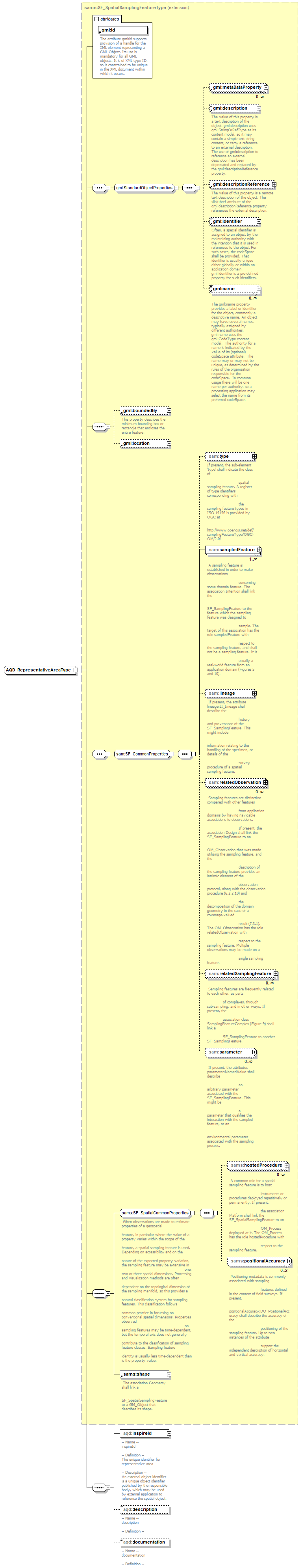

diagram AirQualityReporting_p154.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type extension of sams:SF_SpatialSamplingFeatureType
properties
base sams:SF_SpatialSamplingFeatureType
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location sam:type sam:sampledFeature sam:lineage sam:relatedObservation sam:relatedSamplingFeature sam:parameter sams:hostedProcedure sams:positionalAccuracy sams:shape aqd:inspireId aqd:description aqd:documentation
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element AQD_RepresentativeAreaType/inspireId

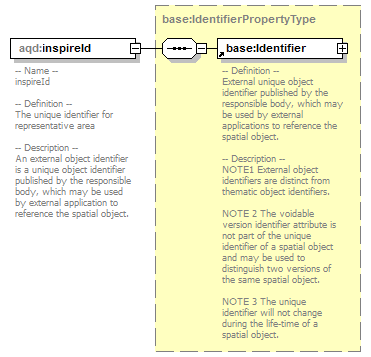

diagram AirQualityReporting_p155.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type base:IdentifierPropertyType
properties
isRef 0
content complex
children base:Identifier
annotation
documentation
-- Name --
inspireId

-- Definition --
The unique identifier for representative area

-- Description --
An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object.

element AQD_RepresentativeAreaType/description
diagram AirQualityReporting_p156.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
-- Name --
description

-- Definition --

element AQD_RepresentativeAreaType/documentation
diagram AirQualityReporting_p157.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type anyURI
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
-- Name --
documentation

-- Definition --
