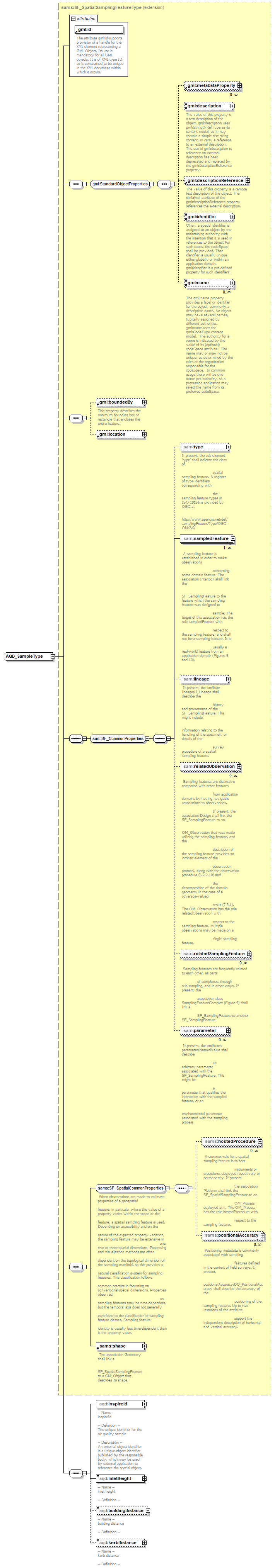

complexType AQD_SampleType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of sams:SF_SpatialSamplingFeatureType
properties	base  sams:SF_SpatialSamplingFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location sam:type sam:sampledFeature sam:lineage sam:relatedObservation sam:relatedSamplingFeature sam:parameter sams:hostedProcedure sams:positionalAccuracy sams:shape aqd:inspireId aqd:inletHeight aqd:buildingDistance aqd:kerbDistance
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

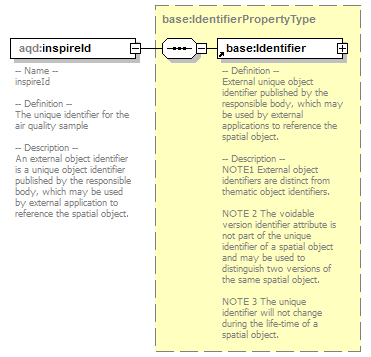

element AQD_SampleType/inspireId

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Name -- inspireId -- Definition -- The unique identifier for the air quality sample -- Description -- An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object.

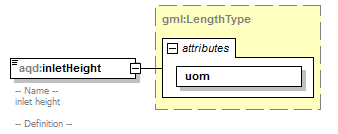

element AQD_SampleType/inletHeight

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:LengthType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- inlet height -- Definition --

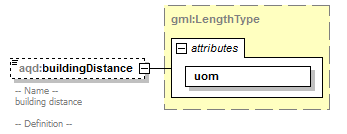

element AQD_SampleType/buildingDistance

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:LengthType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- building distance -- Definition --

element AQD_SampleType/kerbDistance

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:LengthType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- kerb distance -- Definition --
