complexType AQD_SamplingPointProcessType

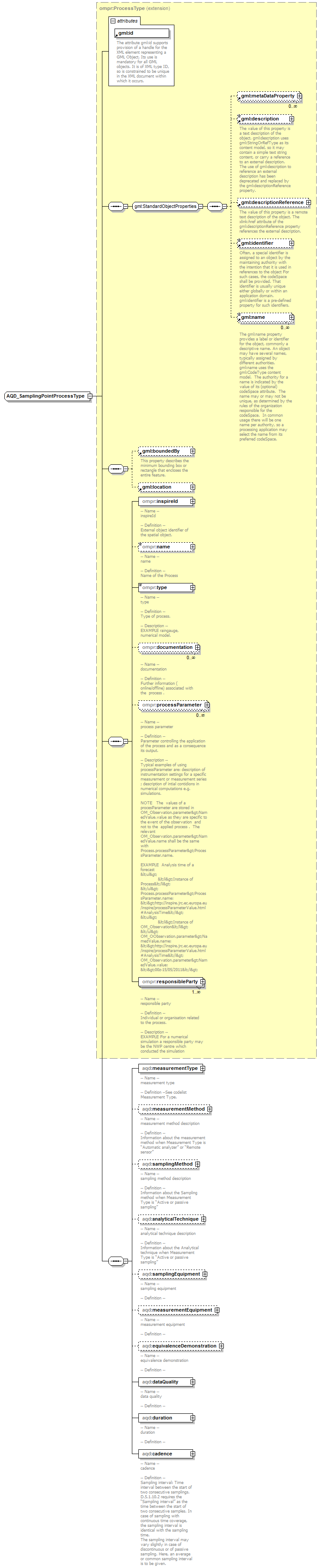

diagram AirQualityReporting_p165.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type extension of ompr:ProcessType
properties
base ompr:ProcessType
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ompr:inspireId ompr:name ompr:type ompr:documentation ompr:processParameter ompr:responsibleParty aqd:measurementType aqd:measurementMethod aqd:samplingMethod aqd:analyticalTechnique aqd:samplingEquipment aqd:measurementEquipment aqd:equivalenceDemonstration aqd:dataQuality aqd:duration aqd:cadence
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

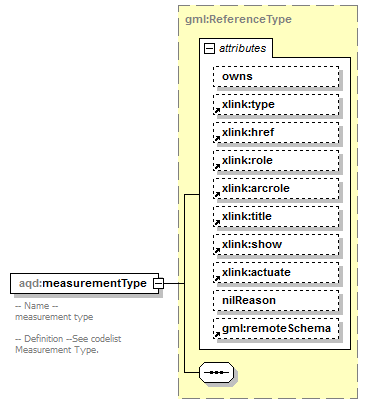

element AQD_SamplingPointProcessType/measurementType
diagram AirQualityReporting_p166.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type gml:ReferenceType
properties
isRef 0
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
ownsboolean  false
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
annotation
documentation
-- Name --
measurement type

-- Definition --See codelist Measurement Type.

element AQD_SamplingPointProcessType/measurementMethod

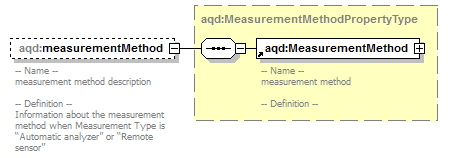

diagram AirQualityReporting_p167.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:MeasurementMethodPropertyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children aqd:MeasurementMethod
annotation
documentation
-- Name --
measurement method description

-- Definition --
Information about the measurement method when Measurement Type is “Automatic analyzer” or “Remote sensor”

element AQD_SamplingPointProcessType/samplingMethod
diagram AirQualityReporting_p168.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:SamplingMethodPropertyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children aqd:SamplingMethod
annotation
documentation
-- Name --
sampling method description

-- Definition --
Information about the Sampling method when Measurement Type is “Active or passive sampling”

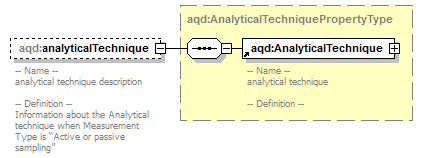

element AQD_SamplingPointProcessType/analyticalTechnique
diagram AirQualityReporting_p169.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:AnalyticalTechniquePropertyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children aqd:AnalyticalTechnique
annotation
documentation
-- Name --
analytical technique description

-- Definition --
Information about the Analytical technique when Measurement Type is “Active or passive sampling”

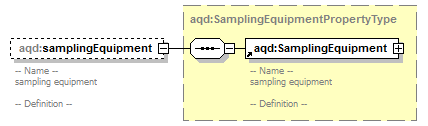

element AQD_SamplingPointProcessType/samplingEquipment
diagram AirQualityReporting_p170.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:SamplingEquipmentPropertyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children aqd:SamplingEquipment
annotation
documentation
-- Name --
sampling equipment

-- Definition --

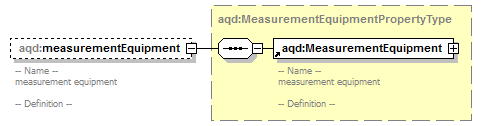

element AQD_SamplingPointProcessType/measurementEquipment
diagram AirQualityReporting_p171.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:MeasurementEquipmentPropertyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children aqd:MeasurementEquipment
annotation
documentation
-- Name --
measurement equipment

-- Definition --

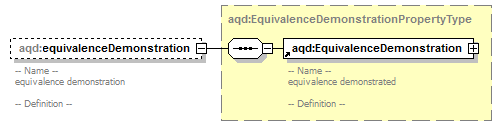

element AQD_SamplingPointProcessType/equivalenceDemonstration
diagram AirQualityReporting_p172.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:EquivalenceDemonstrationPropertyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children aqd:EquivalenceDemonstration
annotation
documentation
-- Name --
equivalence demonstration

-- Definition --

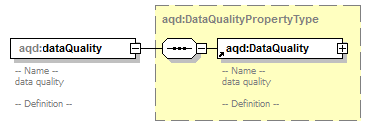

element AQD_SamplingPointProcessType/dataQuality
diagram AirQualityReporting_p173.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:DataQualityPropertyType
properties
isRef 0
content complex
children aqd:DataQuality
annotation
documentation
-- Name --
data quality

-- Definition --

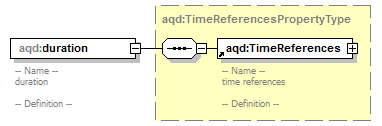

element AQD_SamplingPointProcessType/duration
diagram AirQualityReporting_p174.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:TimeReferencesPropertyType
properties
isRef 0
content complex
children aqd:TimeReferences
annotation
documentation
-- Name --
duration

-- Definition --

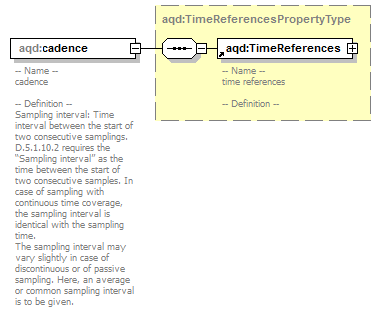

element AQD_SamplingPointProcessType/cadence
diagram AirQualityReporting_p175.png
namespace http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type aqd:TimeReferencesPropertyType
properties
isRef 0
content complex
children aqd:TimeReferences
annotation
documentation
-- Name --
cadence

-- Definition --
Sampling interval: Time interval between the start of two consecutive samplings.
D.5.1.10.2 requires the “Sampling interval” as the time between the start of two consecutive samples. In case of sampling with continuous time coverage, the sampling interval is identical with the sampling time.
The sampling interval may vary slightly in case of discontinuous or of passive sampling. Here, an average or common sampling interval is to be given.
