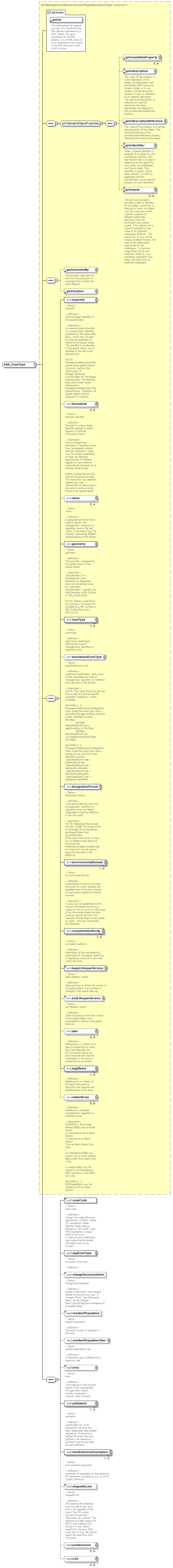

complexType AQD_ZoneType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of am:ManagementRestrictionOrRegulationZoneType
properties	base  am:ManagementRestrictionOrRegulationZoneType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location am:inspireId am:thematicId am:name am:geometry am:zoneType am:specialisedZoneType am:designationPeriod am:environmentalDomain am:competentAuthority am:beginLifespanVersion am:endLifespanVersion am:plan am:legalBasis am:relatedZone aqd:zoneCode aqd:aqdZoneType aqd:changeDocumentation aqd:residentPopulation aqd:residentPopulationYear aqd:area aqd:pollutants aqd:timeExtensionExemption aqd:shapefileLink aqd:predecessor aqd:LAU
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element AQD_ZoneType/zoneCode

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- zone code -- Definition -- Unique Text code following specification CCXXXX, where CC represents 2-letter Member State code as defined by ISO-3166-1 and XXXX represents a unique code for the zone In case of zone modification new codes shall be issued; old codes must not be re-used

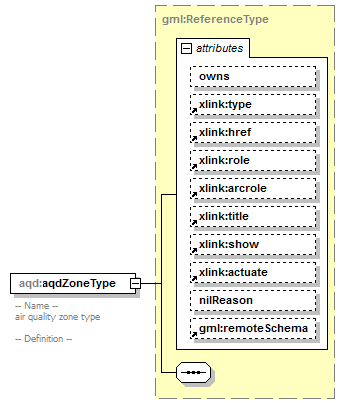

element AQD_ZoneType/aqdZoneType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- air quality zone type -- Definition --

element AQD_ZoneType/changeDocumentation

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- change documentation -- Definition -- States if information has changed related to the previous year. If change=”false”, the information below can be skipped. Data type <i>Documentation of change</i>

element AQD_ZoneType/residentPopulation

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- resident population -- Definition -- The total number of residents in the zone.

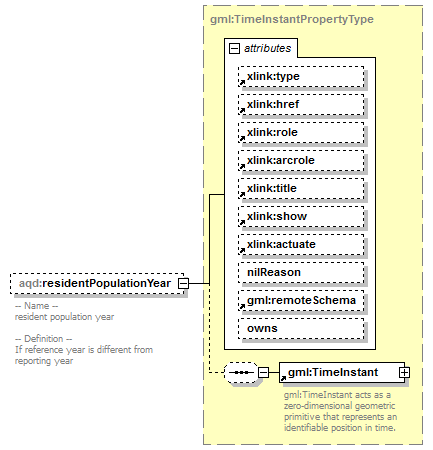

element AQD_ZoneType/residentPopulationYear

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:TimeInstantPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- resident population year -- Definition -- If reference year is different from reporting year

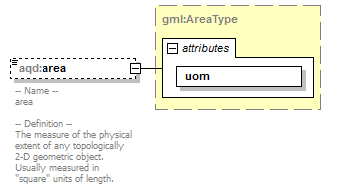

element AQD_ZoneType/area

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:AreaType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- area -- Definition -- The measure of the physical extent of any topologically 2-D geometric object. Usually measured in "square" units of length.

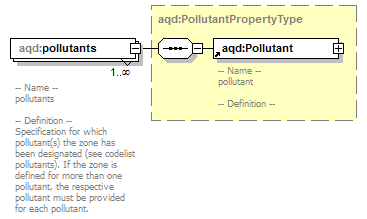

element AQD_ZoneType/pollutants

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:PollutantPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	aqd:Pollutant
annotation	documentation -- Name -- pollutants -- Definition -- Specification for which pollutant(s) the zone has been designated (see codelist pollutants). If the zone is defined for more than one pollutant, the respective pollutant must be provided for each pollutant.

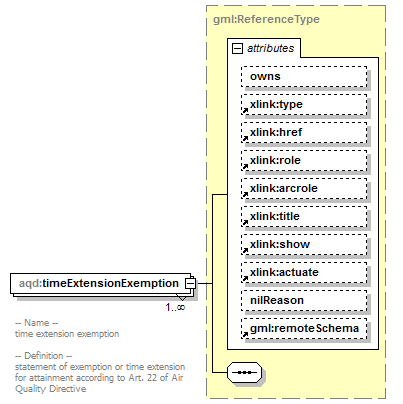

element AQD_ZoneType/timeExtensionExemption

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- time extension exemption -- Definition -- statement of exemption or time extension for attainment according to Art. 22 of Air Quality Directive

element AQD_ZoneType/shapefileLink

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	anyURI
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- shapefile link -- Definition -- This external file reference may be used to provide a link to the shapefile of the zone if the MS cannot provide the geometry information as a posList. The element provides support for EEA’s user interface (UI) during a 2-year interim period from January 2014 when the UI may be used to report this data flow B on AQ zones.

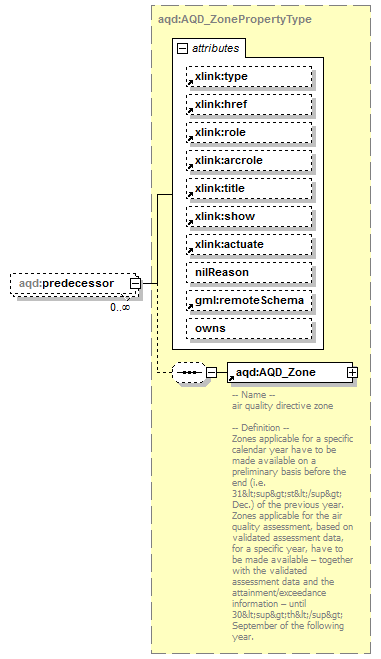

element AQD_ZoneType/predecessor

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_ZonePropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AQD_Zone
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

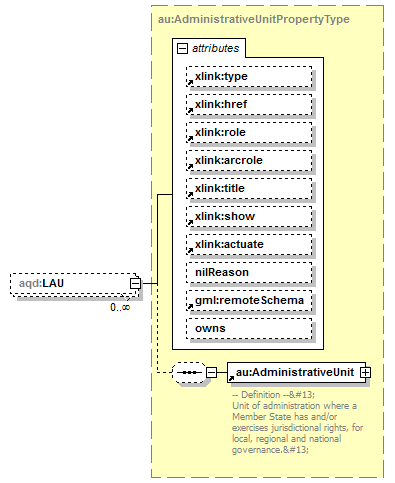

element AQD_ZoneType/LAU

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	au:AdministrativeUnitPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	au:AdministrativeUnit
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
