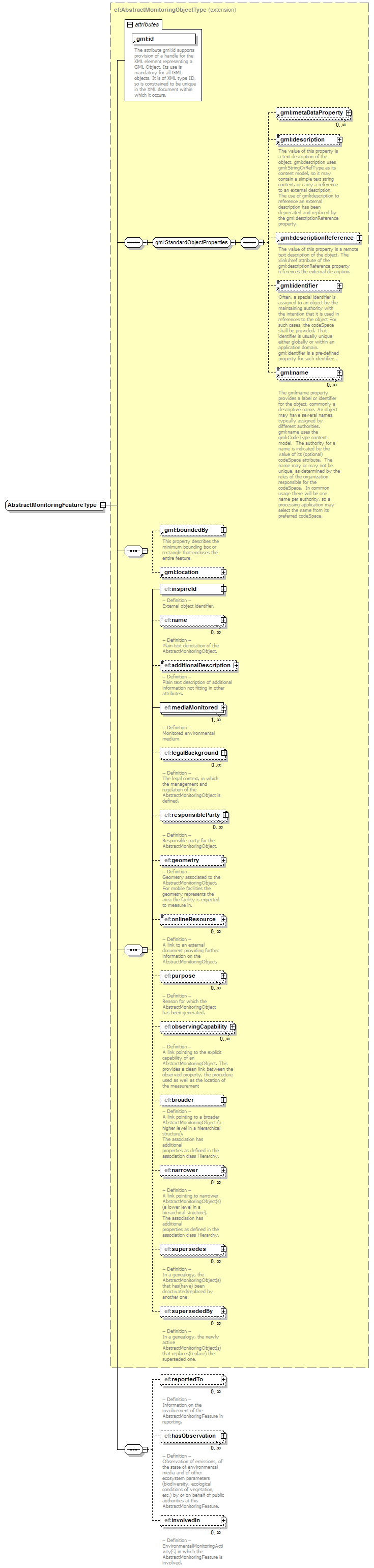

complexType AbstractMonitoringFeatureType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of ef:AbstractMonitoringObjectType
properties	base  ef:AbstractMonitoringObjectType abstract  true
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ef:inspireId ef:name ef:additionalDescription ef:mediaMonitored ef:legalBackground ef:responsibleParty ef:geometry ef:onlineResource ef:purpose ef:observingCapability ef:broader ef:narrower ef:supersedes ef:supersededBy ef:reportedTo ef:hasObservation ef:involvedIn
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

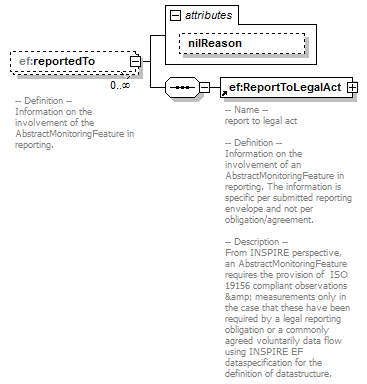

element AbstractMonitoringFeatureType/reportedTo

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	ef:ReportToLegalAct
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Information on the involvement of the AbstractMonitoringFeature in reporting.

attribute AbstractMonitoringFeatureType/reportedTo/@nilReason

type	gml:NilReasonType
properties	isRef  0

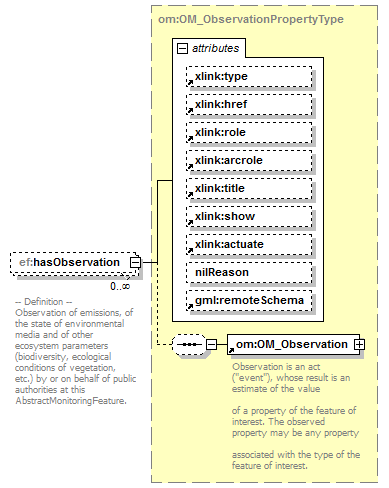

element AbstractMonitoringFeatureType/hasObservation

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	om:OM_ObservationPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	om:OM_Observation
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Observation of emissions, of the state of environmental media and of other ecosystem parameters (biodiversity, ecological conditions of vegetation, etc.) by or on behalf of public authorities at this AbstractMonitoringFeature.

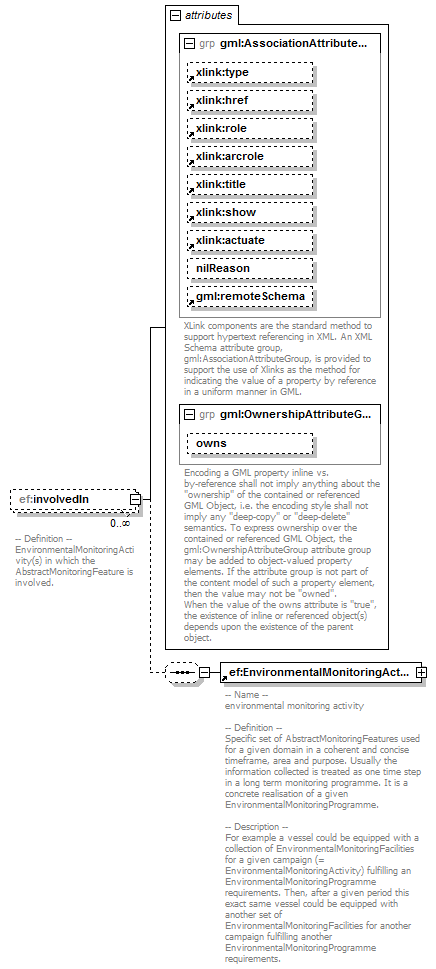

element AbstractMonitoringFeatureType/involvedIn

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	ef:EnvironmentalMonitoringActivity
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- EnvironmentalMonitoringActivity(s) in which the AbstractMonitoringFeature is involved. appinfo <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:uses</reversePropertyName>
