complexType AddressAreaNameType

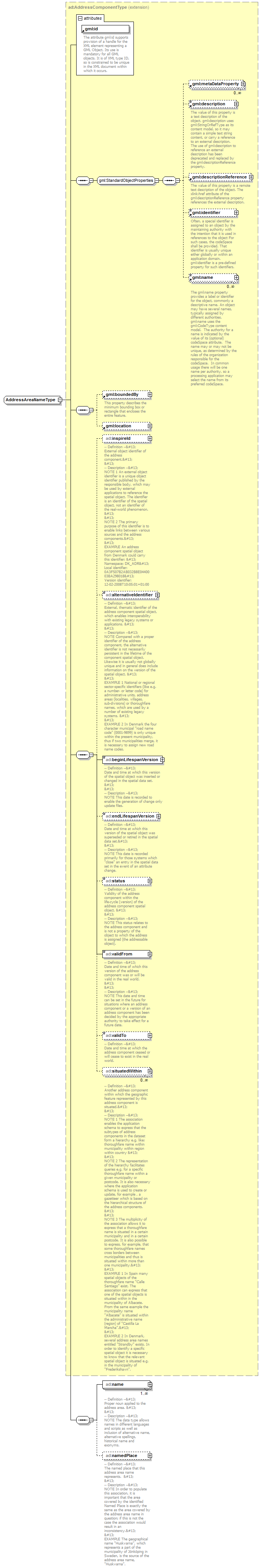

diagram AirQualityReporting_p655.png
namespace urn:x-inspire:specification:gmlas:Addresses:3.0
type extension of ad:AddressComponentType
properties
base ad:AddressComponentType
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ad:inspireId ad:alternativeIdentifier ad:beginLifespanVersion ad:endLifespanVersion ad:status ad:validFrom ad:validTo ad:situatedWithin ad:name ad:namedPlace
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element AddressAreaNameType/name

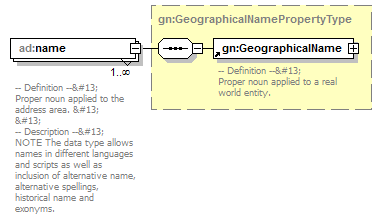

diagram AirQualityReporting_p656.png
namespace urn:x-inspire:specification:gmlas:Addresses:3.0
type gn:GeographicalNamePropertyType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children gn:GeographicalName
annotation
documentation
-- Definition --
Proper noun applied to the address area.

-- Description --
NOTE The data type allows names in different languages and scripts as well as inclusion of alternative name, alternative spellings, historical name and exonyms.

element AddressAreaNameType/namedPlace

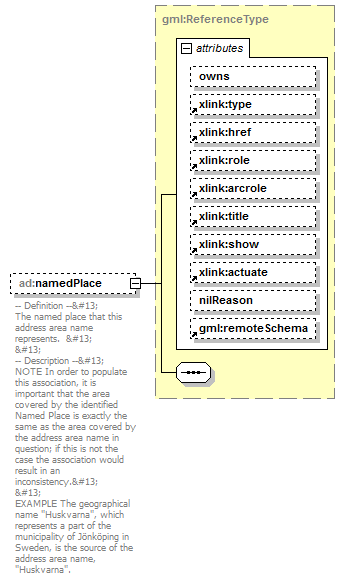

diagram AirQualityReporting_p657.png
namespace urn:x-inspire:specification:gmlas:Addresses:3.0
type gml:ReferenceType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
ownsboolean  false
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
annotation
documentation
-- Definition --
The named place that this address area name represents.

-- Description --
NOTE In order to populate this association, it is important that the area covered by the identified Named Place is exactly the same as the area covered by the address area name in question; if this is not the case the association would result in an inconsistency.

EXAMPLE The geographical name "Huskvarna", which represents a part of the municipality of Jönköping in Sweden, is the source of the address area name, "Huskvarna".
appinfo
<targetElement xmlns="http://www.opengis.net/gml/3.2">gn:NamedPlace</targetElement>
