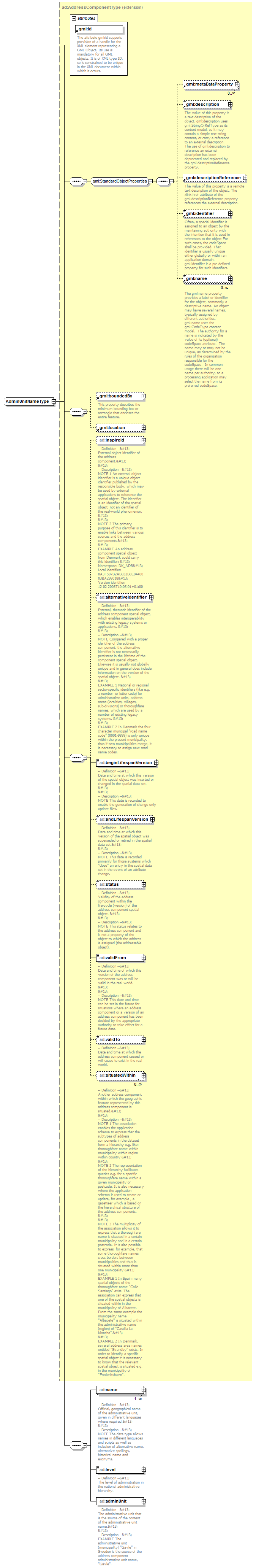

complexType AdminUnitNameType

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	extension of ad:AddressComponentType
properties	base  ad:AddressComponentType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ad:inspireId ad:alternativeIdentifier ad:beginLifespanVersion ad:endLifespanVersion ad:status ad:validFrom ad:validTo ad:situatedWithin ad:name ad:level ad:adminUnit
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

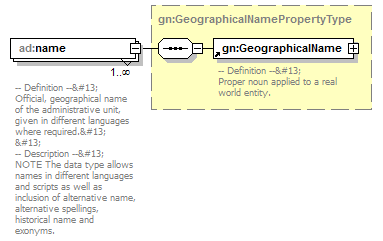

element AdminUnitNameType/name

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	gn:GeographicalNamePropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	gn:GeographicalName
annotation	documentation -- Definition --
 Official, geographical name of the administrative unit, given in different languages where required.

 -- Description --
 NOTE The data type allows names in different languages and scripts as well as inclusion of alternative name, alternative spellings, historical name and exonyms.

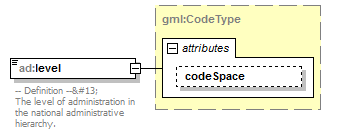

element AdminUnitNameType/level

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	gml:CodeType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation codeSpace anyURI
annotation	documentation -- Definition --
 The level of administration in the national administrative hierarchy.

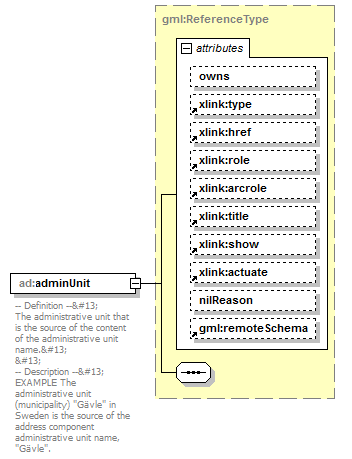

element AdminUnitNameType/adminUnit

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	gml:ReferenceType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition --&#13; The administrative unit that is the source of the content of the administrative unit name.&#13; &#13; -- Description --&#13; EXAMPLE The administrative unit (municipality) "Gävle" in Sweden is the source of the address component administrative unit name, "Gävle". appinfo <targetElement xmlns="http://www.opengis.net/gml/3.2">au:AdministrativeUnit</targetElement>
