complexType ConditionOfFacilityType

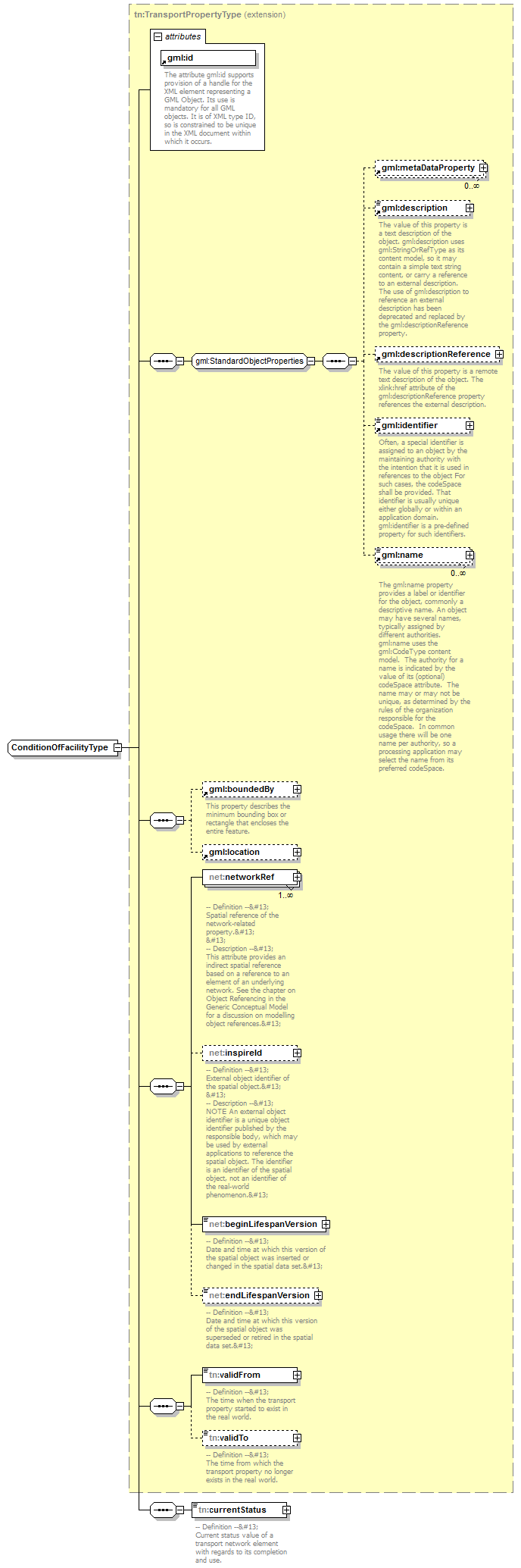

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of tn:TransportPropertyType
properties	base  tn:TransportPropertyType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:networkRef net:inspireId net:beginLifespanVersion net:endLifespanVersion tn:validFrom tn:validTo tn:currentStatus
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element ConditionOfFacilityType/currentStatus

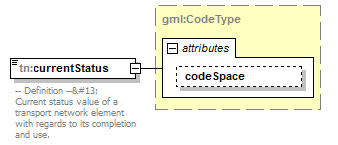

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	gml:CodeType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation codeSpace anyURI
annotation	documentation -- Definition --
 Current status value of a transport network element with regards to its completion and use.
