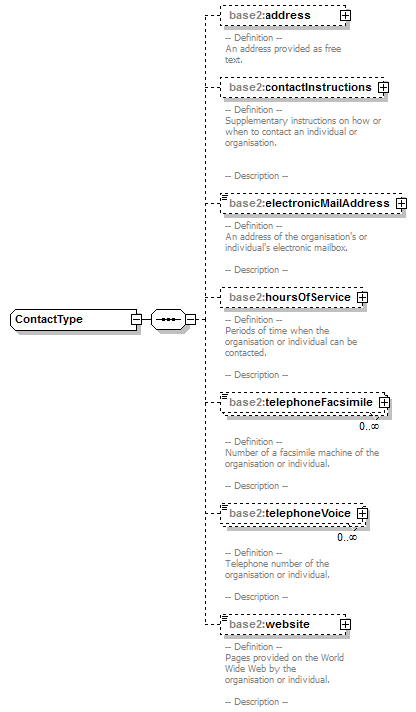

complexType ContactType

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
children	base2:address base2:contactInstructions base2:electronicMailAddress base2:hoursOfService base2:telephoneFacsimile base2:telephoneVoice base2:website

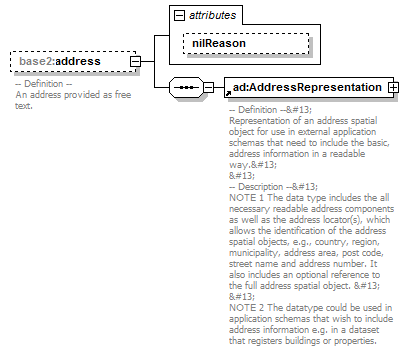

element ContactType/address

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	ad:AddressRepresentation
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- An address provided as free text.

attribute ContactType/address/@nilReason

type	gml:NilReasonType
properties	isRef  0

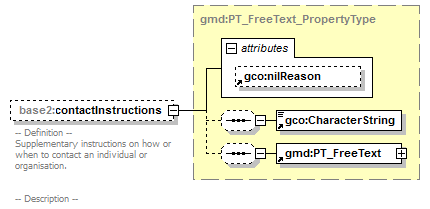

element ContactType/contactInstructions

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	gmd:PT_FreeText_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	gco:CharacterString gmd:PT_FreeText
attributes	Name   Type   Use   Default   Fixed   annotation nilReason
annotation	documentation -- Definition -- Supplementary instructions on how or when to contact an individual or organisation. -- Description --

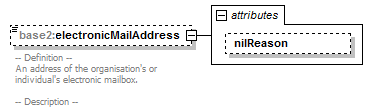

element ContactType/electronicMailAddress

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- An address of the organisation's or individual's electronic mailbox. -- Description --

attribute ContactType/electronicMailAddress/@nilReason

type	gml:NilReasonType
properties	isRef  0

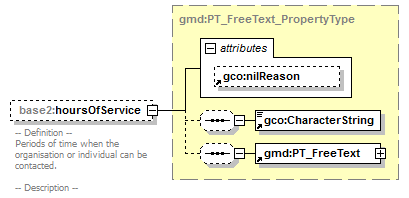

element ContactType/hoursOfService

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	gmd:PT_FreeText_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	gco:CharacterString gmd:PT_FreeText
attributes	Name   Type   Use   Default   Fixed   annotation nilReason
annotation	documentation -- Definition -- Periods of time when the organisation or individual can be contacted. -- Description --

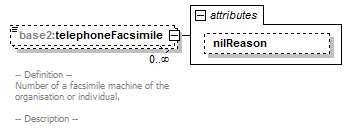

element ContactType/telephoneFacsimile

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Number of a facsimile machine of the organisation or individual. -- Description --

attribute ContactType/telephoneFacsimile/@nilReason

type	gml:NilReasonType
properties	isRef  0

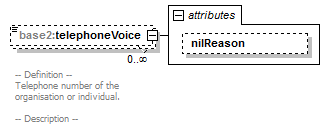

element ContactType/telephoneVoice

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Telephone number of the organisation or individual. -- Description --

attribute ContactType/telephoneVoice/@nilReason

type	gml:NilReasonType
properties	isRef  0

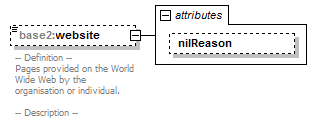

element ContactType/website

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of anyURI
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Pages provided on the World Wide Web by the organisation or individual. -- Description --

attribute ContactType/website/@nilReason

type	gml:NilReasonType
properties	isRef  0
