complexType DataChoiceType

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractDataComponentType
properties	base  swe:AbstractDataComponentType
children	swe:extension swe:identifier swe:label swe:description swe:choiceValue swe:item
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         updatable boolean optional         documentation Specifies if the value of a data component can be updated externally (i.e. is variable) optional boolean optional   false      documentation Specifies that data for this component can be omitted in the datastream definition anyURI optional         documentation Reference to semantic information defining the precise nature of the component

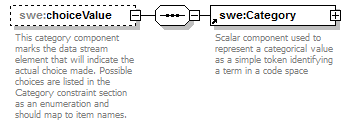

element DataChoiceType/choiceValue

diagram
namespace	http://www.opengis.net/swe/2.0
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	swe:Category
annotation	documentation This category component marks the data stream element that will indicate the actual choice made. Possible choices are listed in the Category constraint section as an enumeration and should map to item names.

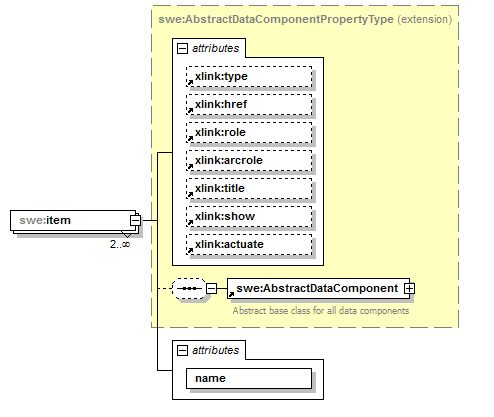

element DataChoiceType/item

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractDataComponentPropertyType
properties	isRef  0 minOcc  2 maxOcc  unbounded content  complex
children	swe:AbstractDataComponent
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          name NCName required

attribute DataChoiceType/item/@name

type	NCName
properties	isRef  0 use  required
