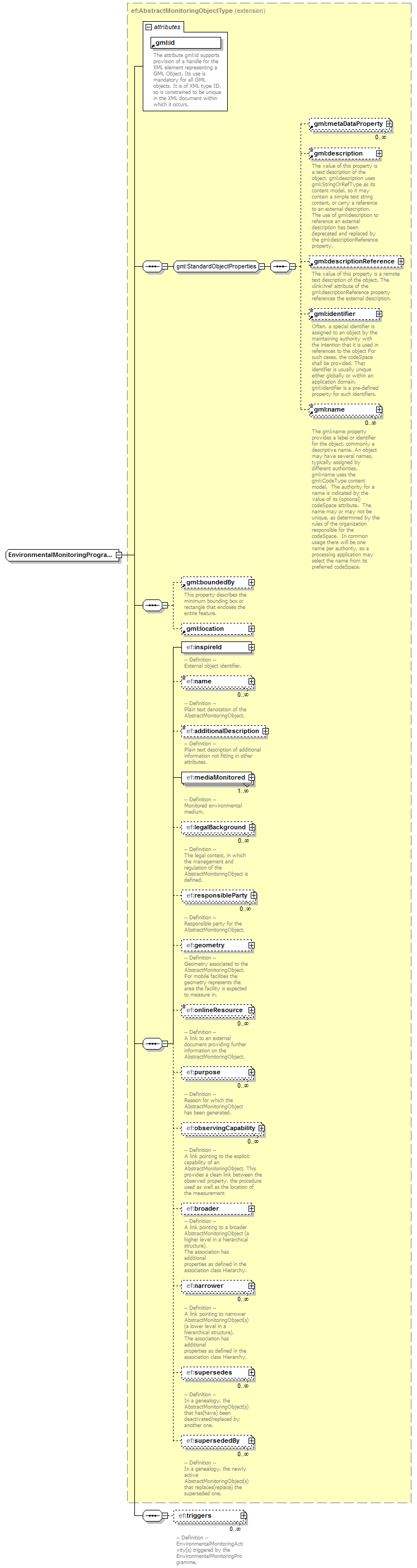

complexType EnvironmentalMonitoringProgrammeType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of ef:AbstractMonitoringObjectType
properties	base  ef:AbstractMonitoringObjectType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ef:inspireId ef:name ef:additionalDescription ef:mediaMonitored ef:legalBackground ef:responsibleParty ef:geometry ef:onlineResource ef:purpose ef:observingCapability ef:broader ef:narrower ef:supersedes ef:supersededBy ef:triggers
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

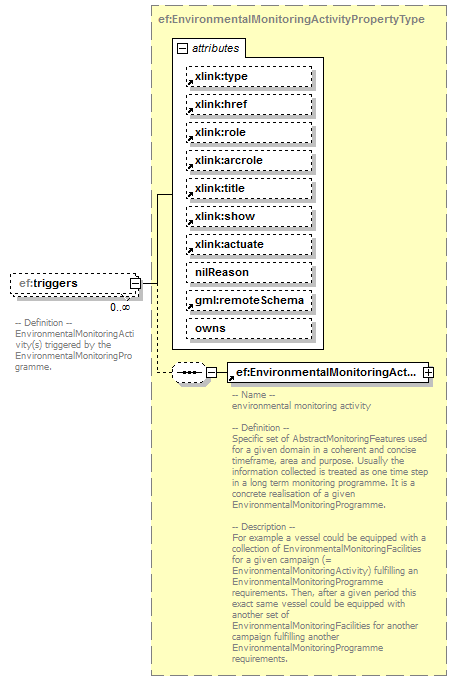

element EnvironmentalMonitoringProgrammeType/triggers

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	ef:EnvironmentalMonitoringActivityPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	ef:EnvironmentalMonitoringActivity
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- EnvironmentalMonitoringActivity(s) triggered by the EnvironmentalMonitoringProgramme. appinfo <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:setUpFor</reversePropertyName>
