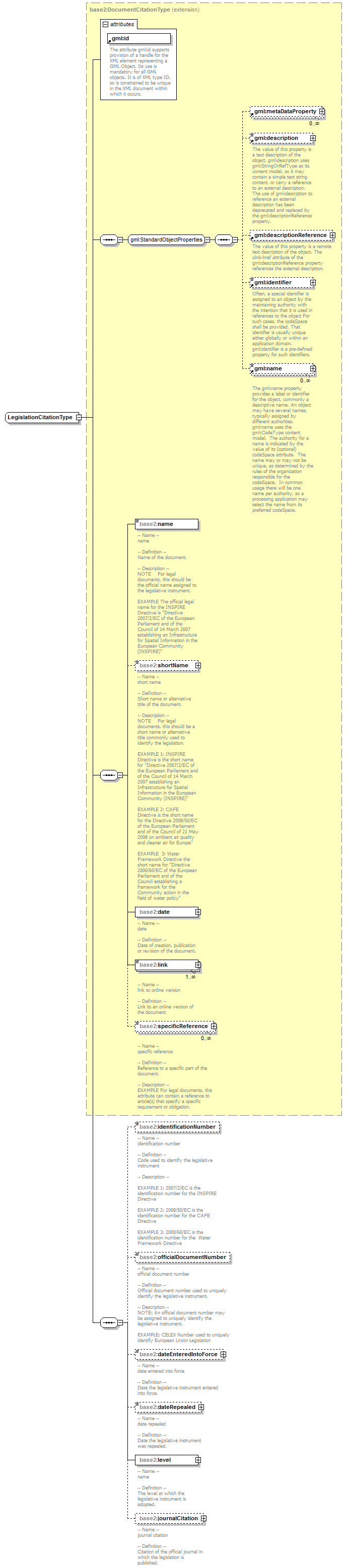

complexType LegislationCitationType

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of base2:DocumentCitationType
properties	base  base2:DocumentCitationType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name base2:name base2:shortName base2:date base2:link base2:specificReference base2:identificationNumber base2:officialDocumentNumber base2:dateEnteredIntoForce base2:dateRepealed base2:level base2:journalCitation
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element LegislationCitationType/identificationNumber

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- identification number -- Definition -- Code used to identify the legislative instrument -- Description -- EXAMPLE 1: 2007/2/EC is the identification number for the INSPIRE Directive EXAMPLE 2: 2008/50/EC is the identification number for the CAFE Directive EXAMPLE 3: 2000/60/EC is the identification number for the  Water Framework Directive

element LegislationCitationType/officialDocumentNumber

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- official document number -- Definition -- Official document number used to uniquely identify the legislative instrument. -- Description -- NOTE: An official document number may be assigned to uniquely identify the legislative instrument. EXAMPLE: CELEX Number used to uniquely identify European Union Legislation

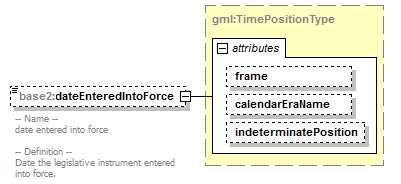

element LegislationCitationType/dateEnteredIntoForce

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	gml:TimePositionType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation frame anyURI    #ISO-8601      calendarEraName string          indeterminatePosition gml:TimeIndeterminateValueType
annotation	documentation -- Name -- date entered into force -- Definition -- Date the legislative instrument entered into force.

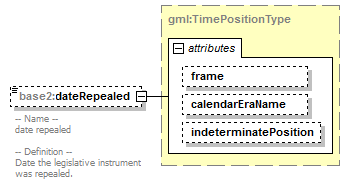

element LegislationCitationType/dateRepealed

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	gml:TimePositionType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation frame anyURI    #ISO-8601      calendarEraName string          indeterminatePosition gml:TimeIndeterminateValueType
annotation	documentation -- Name -- date repealed -- Definition -- Date the legislative instrument was repealed.

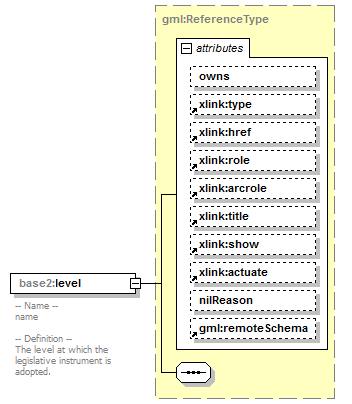

element LegislationCitationType/level

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- name -- Definition -- The level at which the legislative instrument is adopted.

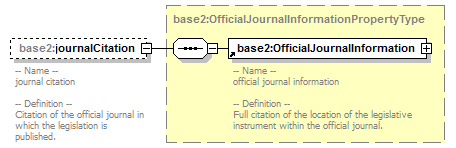

element LegislationCitationType/journalCitation

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	base2:OfficialJournalInformationPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	base2:OfficialJournalInformation
annotation	documentation -- Name -- journal citation -- Definition -- Citation of the official journal in which the legislation is published.
