complexType PostalDescriptorType

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	extension of ad:AddressComponentType
properties	base  ad:AddressComponentType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ad:inspireId ad:alternativeIdentifier ad:beginLifespanVersion ad:endLifespanVersion ad:status ad:validFrom ad:validTo ad:situatedWithin ad:postName ad:postCode
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element PostalDescriptorType/postName

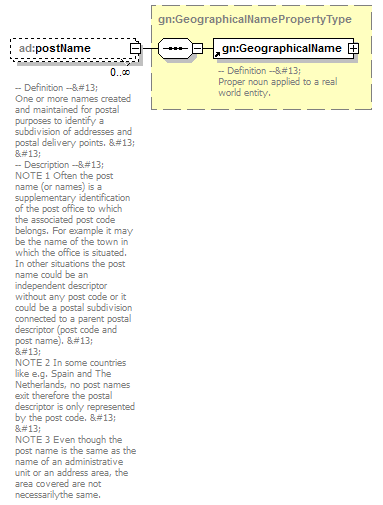

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	gn:GeographicalNamePropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gn:GeographicalName
annotation	documentation -- Definition --
 One or more names created and maintained for postal purposes to identify a subdivision of addresses and postal delivery points.

 -- Description --
 NOTE 1 Often the post name (or names) is a supplementary identification of the post office to which the associated post code belongs. For example it may be the name of the town in which the office is situated. In other situations the post name could be an independent descriptor without any post code or it could be a postal subdivision connected to a parent postal descriptor (post code and post name).

 NOTE 2 In some countries like e.g. Spain and The Netherlands, no post names exit therefore the postal descriptor is only represented by the post code.

 NOTE 3 Even though the post name is the same as the name of an administrative unit or an address area, the area covered are not necessarilythe same.

element PostalDescriptorType/postCode

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Definition --
 A code created and maintained for postal purposes to identify a subdivision of addresses and postal delivery points.

 -- Description --
 NOTE 1 The structure, schema and formats of post codes are different in different countries. Often the components of the post code are hierarchical, e.g. when the first character(s) identifies the region covered by the post code and the next characters define the subdivision.

 NOTE 2 In some countries, e.g., The Republic of Ireland, no post codes exists therefore the postal descriptor is only represented by the post name (e.g. town name).

 EXAMPLE In the UK postcodes starting with W covers the Western (W1) and Paddington (W2-14) districts of the London postal district. In Sweden all postcodes starting with "80" is related to the postal name "Gävle".
