complexType ThoroughfareNameType

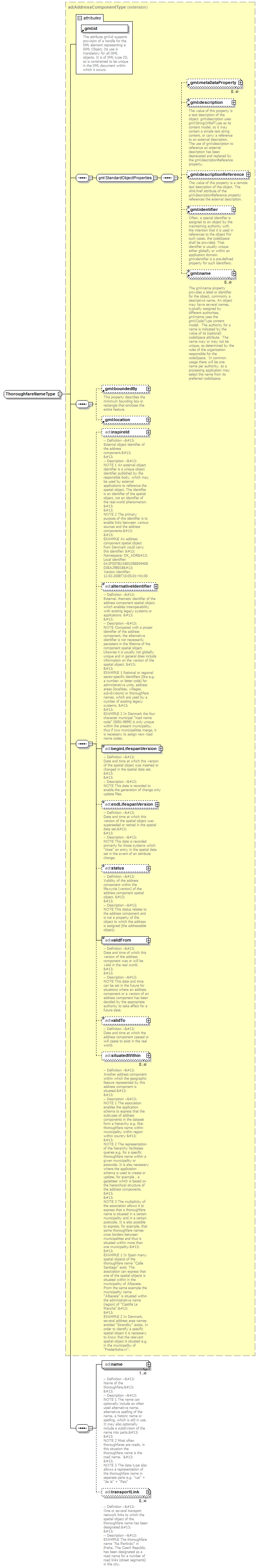

diagram AirQualityReporting_p727.png
namespace urn:x-inspire:specification:gmlas:Addresses:3.0
type extension of ad:AddressComponentType
properties
base ad:AddressComponentType
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ad:inspireId ad:alternativeIdentifier ad:beginLifespanVersion ad:endLifespanVersion ad:status ad:validFrom ad:validTo ad:situatedWithin ad:name ad:transportLink
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element ThoroughfareNameType/name

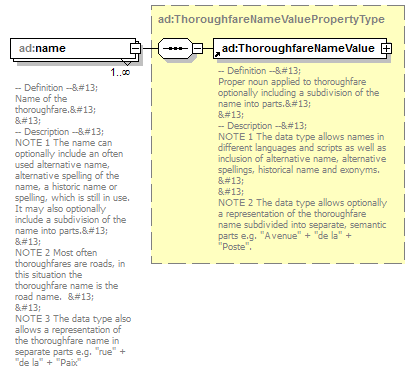

diagram AirQualityReporting_p728.png
namespace urn:x-inspire:specification:gmlas:Addresses:3.0
type ad:ThoroughfareNameValuePropertyType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children ad:ThoroughfareNameValue
annotation
documentation
-- Definition --
Name of the thoroughfare.

-- Description --
NOTE 1 The name can optionally include an often used alternative name, alternative spelling of the name, a historic name or spelling, which is still in use. It may also optionally include a subdivision of the name into parts.

NOTE 2 Most often thoroughfares are roads, in this situation the thoroughfare name is the road name.

NOTE 3 The data type also allows a representation of the thoroughfare name in separate parts e.g. "rue" + "de la" + "Paix"

element ThoroughfareNameType/transportLink

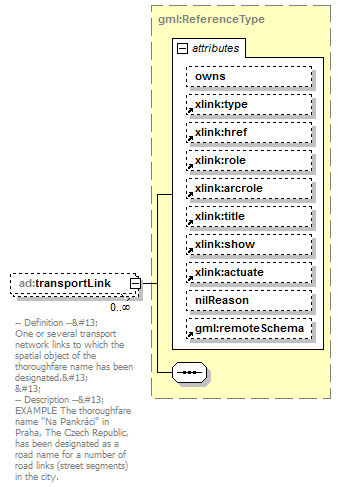

diagram AirQualityReporting_p729.png
namespace urn:x-inspire:specification:gmlas:Addresses:3.0
type gml:ReferenceType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
ownsboolean  false
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
annotation
documentation
-- Definition --
One or several transport network links to which the spatial object of the thoroughfare name has been designated.

-- Description --
EXAMPLE The thoroughfare name "Na Pankráci" in Praha, The Czech Republic, has been designated as a road name for a number of road links (street segments) in the city.
appinfo
<targetElement xmlns="http://www.opengis.net/gml/3.2">tn:TransportLink</targetElement>
