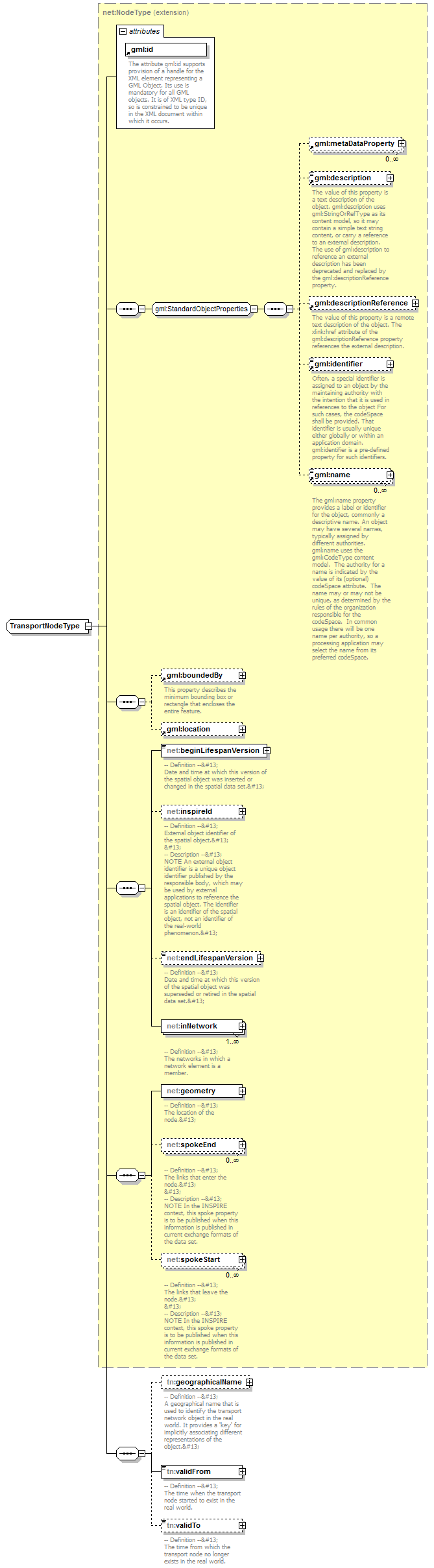

complexType TransportNodeType

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of net:NodeType
properties	base  net:NodeType abstract  true
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:beginLifespanVersion net:inspireId net:endLifespanVersion net:inNetwork net:geometry net:spokeEnd net:spokeStart tn:geographicalName tn:validFrom tn:validTo
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

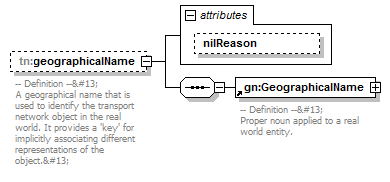

element TransportNodeType/geographicalName

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	gn:GeographicalName
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 A geographical name that is used to identify the transport network object in the real world. It provides a 'key' for implicitly associating different representations of the object.


attribute TransportNodeType/geographicalName/@nilReason

type	gml:NilReasonType
properties	isRef  0

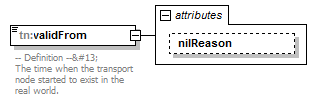

element TransportNodeType/validFrom

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of dateTime
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The time when the transport node started to exist in the real world.

attribute TransportNodeType/validFrom/@nilReason

type	gml:NilReasonType
properties	isRef  0

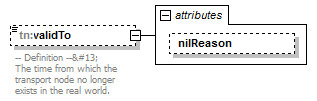

element TransportNodeType/validTo

diagram
namespace	urn:x-inspire:specification:gmlas:CommonTransportElements:3.0
type	extension of dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The time from which the transport node no longer exists in the real world.

attribute TransportNodeType/validTo/@nilReason

type	gml:NilReasonType
properties	isRef  0
