element Vector

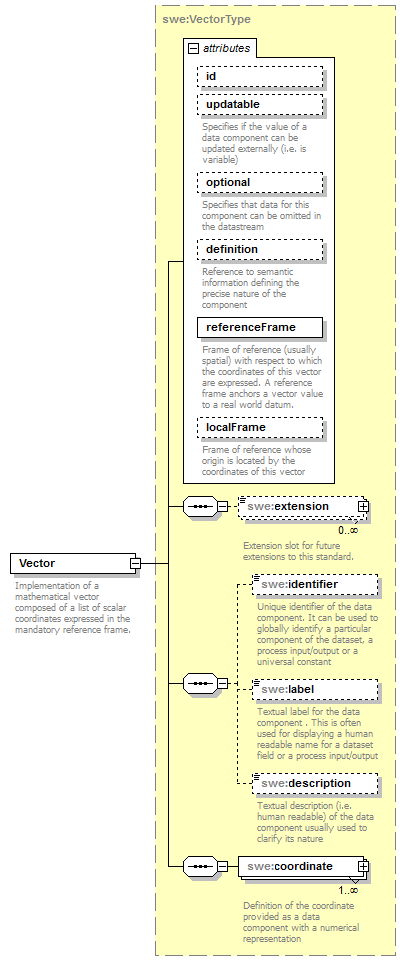

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:VectorType
properties	content  complex substGrp  swe:AbstractDataComponent
children	swe:extension swe:identifier swe:label swe:description swe:coordinate
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         updatable boolean optional         documentation Specifies if the value of a data component can be updated externally (i.e. is variable) optional boolean optional   false      documentation Specifies that data for this component can be omitted in the datastream definition anyURI optional         documentation Reference to semantic information defining the precise nature of the component referenceFrame anyURI required         documentation Frame of reference (usually spatial) with respect to which the coordinates of this vector are expressed. A reference frame anchors a vector value to a real world datum. localFrame anyURI optional         documentation Frame of reference whose origin is located by the coordinates of this vector
annotation	documentation Implementation of a mathematical vector composed of a list of scalar coordinates expressed in the mandatory reference frame.
