complexType AQD_ModelType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of ef:EnvironmentalMonitoringNetworkType
properties	base  ef:EnvironmentalMonitoringNetworkType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ef:inspireId ef:name ef:additionalDescription ef:mediaMonitored ef:legalBackground ef:responsibleParty ef:geometry ef:onlineResource ef:purpose ef:observingCapability ef:broader ef:narrower ef:supersedes ef:supersededBy ef:reportedTo ef:hasObservation ef:involvedIn ef:organisationLevel ef:contains aqd:environmentalObjective aqd:assessmentType aqd:zone
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element AQD_ModelType/environmentalObjective

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:EnvironmentalObjectivePropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	aqd:EnvironmentalObjective
annotation	documentation -- Name -- environmental objective -- Definition -- see Datatype “Environmental Objective”. Please note that the name “Environmental objective type” in the Decision 2011/850/EC is not correct. This element refers to the (whole) “Environmental Objective” as defined in A.3.

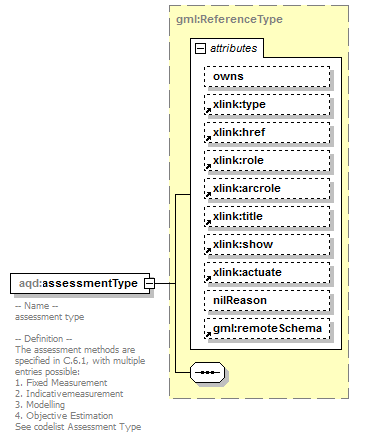

element AQD_ModelType/assessmentType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- assessment type -- Definition -- The assessment methods are specified in C.6.1, with multiple entries possible: 1. Fixed Measurement 2. Indicativemeasurement 3. Modelling 4. Objective Estimation See codelist Assessment Type

element AQD_ModelType/zone

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_ZonePropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AQD_Zone
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
