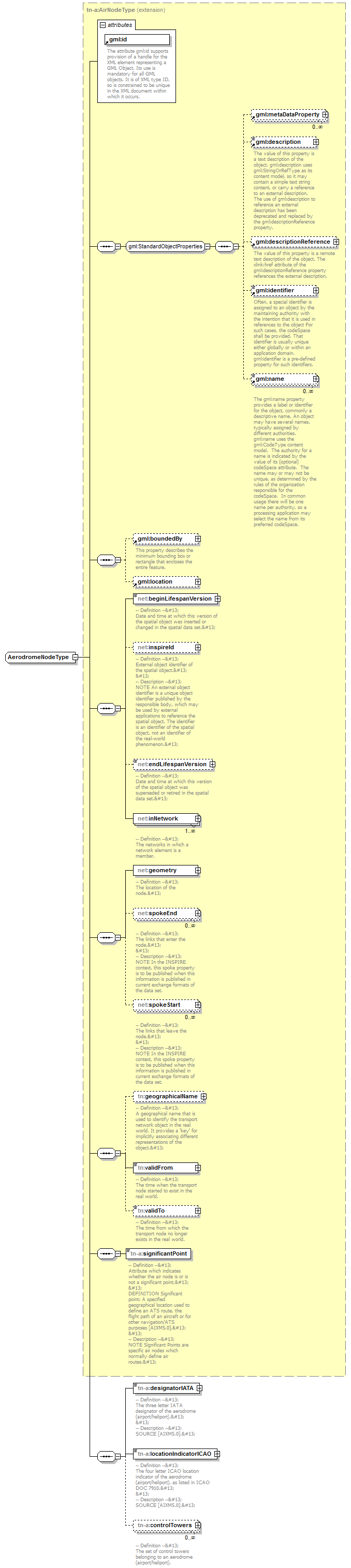

complexType AerodromeNodeType

diagram
namespace	urn:x-inspire:specification:gmlas:AirTransportNetwork:3.0
type	extension of tn-a:AirNodeType
properties	base  tn-a:AirNodeType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:beginLifespanVersion net:inspireId net:endLifespanVersion net:inNetwork net:geometry net:spokeEnd net:spokeStart tn:geographicalName tn:validFrom tn:validTo tn-a:significantPoint tn-a:designatorIATA tn-a:locationIndicatorICAO tn-a:controlTowers
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

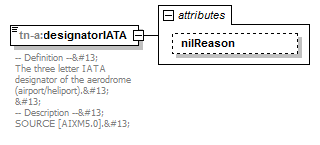

element AerodromeNodeType/designatorIATA

diagram
namespace	urn:x-inspire:specification:gmlas:AirTransportNetwork:3.0
type	extension of string
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The three letter IATA designator of the aerodrome (airport/heliport).

 -- Description --
 SOURCE [AIXM5.0].


attribute AerodromeNodeType/designatorIATA/@nilReason

type	gml:NilReasonType
properties	isRef  0

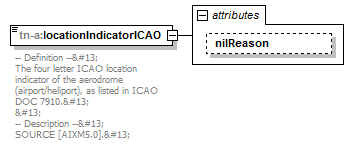

element AerodromeNodeType/locationIndicatorICAO

diagram
namespace	urn:x-inspire:specification:gmlas:AirTransportNetwork:3.0
type	extension of string
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The four letter ICAO location indicator of the aerodrome (airport/heliport), as listed in ICAO DOC 7910.

 -- Description --
 SOURCE [AIXM5.0].


attribute AerodromeNodeType/locationIndicatorICAO/@nilReason

type	gml:NilReasonType
properties	isRef  0

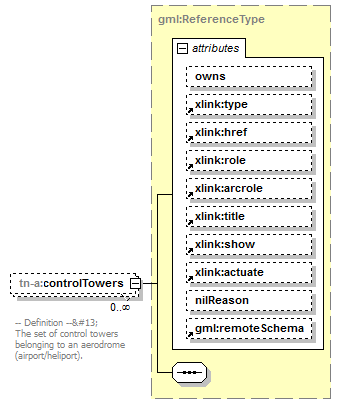

element AerodromeNodeType/controlTowers

diagram
namespace	urn:x-inspire:specification:gmlas:AirTransportNetwork:3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition --&#13; The set of control towers belonging to an aerodrome (airport/heliport). appinfo <targetElement xmlns="http://www.opengis.net/gml/3.2">bui:ControlTower</targetElement> <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">bui:airportHeliport</reversePropertyName>
