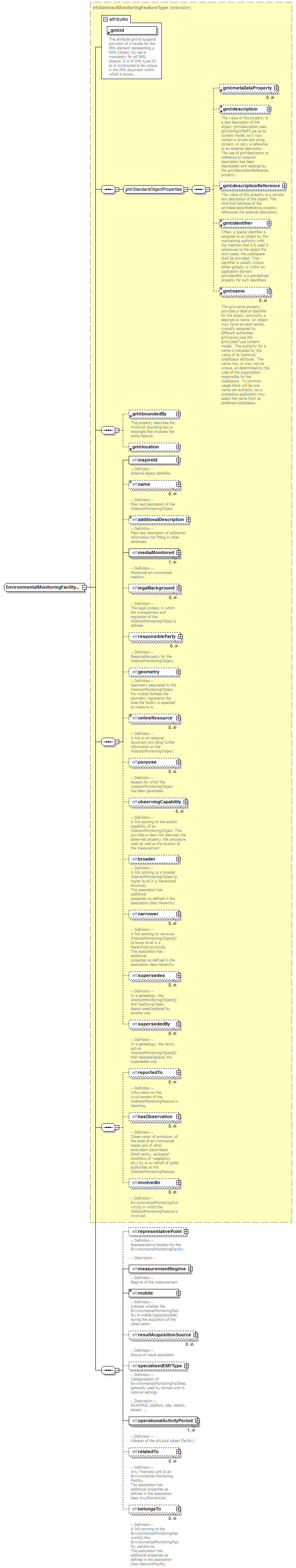

complexType EnvironmentalMonitoringFacilityType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of ef:AbstractMonitoringFeatureType
properties	base  ef:AbstractMonitoringFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ef:inspireId ef:name ef:additionalDescription ef:mediaMonitored ef:legalBackground ef:responsibleParty ef:geometry ef:onlineResource ef:purpose ef:observingCapability ef:broader ef:narrower ef:supersedes ef:supersededBy ef:reportedTo ef:hasObservation ef:involvedIn ef:representativePoint ef:measurementRegime ef:mobile ef:resultAcquisitionSource ef:specialisedEMFType ef:operationalActivityPeriod ef:relatedTo ef:belongsTo
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

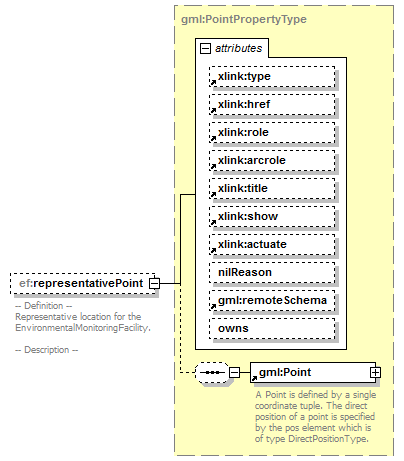

element EnvironmentalMonitoringFacilityType/representativePoint

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:PointPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	gml:Point
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- Representative location for the EnvironmentalMonitoringFacility. -- Description --

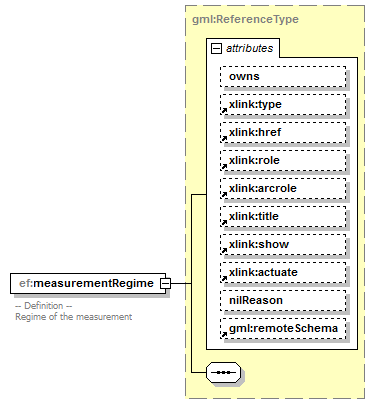

element EnvironmentalMonitoringFacilityType/measurementRegime

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:ReferenceType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Regime of the measurement

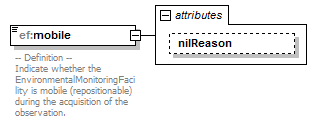

element EnvironmentalMonitoringFacilityType/mobile

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of boolean
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Indicate whether the EnvironmentalMonitoringFacility is mobile (repositionable) during the acquisition of the observation.

attribute EnvironmentalMonitoringFacilityType/mobile/@nilReason

type	gml:NilReasonType
properties	isRef  0

element EnvironmentalMonitoringFacilityType/resultAcquisitionSource

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Source of result acquisition

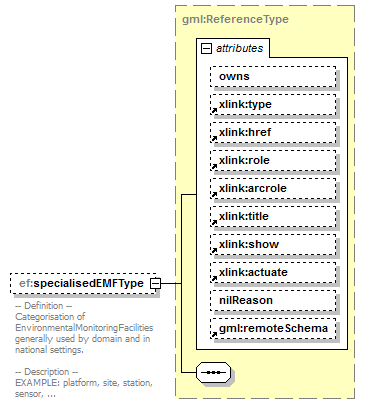

element EnvironmentalMonitoringFacilityType/specialisedEMFType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Categorisation of EnvironmentalMonitoringFacilities generally used by domain and in national settings. -- Description -- EXAMPLE: platform, site, station, sensor, ...

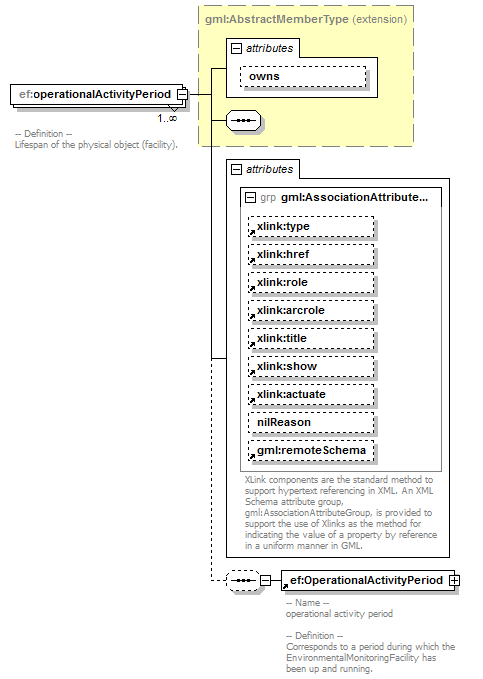

element EnvironmentalMonitoringFacilityType/operationalActivityPeriod

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractMemberType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex nillable  true
children	ef:OperationalActivityPeriod
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Lifespan of the physical object (facility).

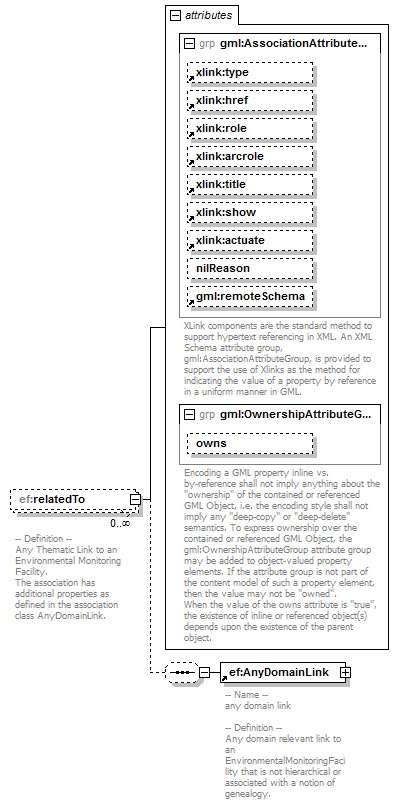

element EnvironmentalMonitoringFacilityType/relatedTo

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	ef:AnyDomainLink
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- Any Thematic Link to an Environmental Monitoring Facility. The association has additional properties as defined in the association class AnyDomainLink.

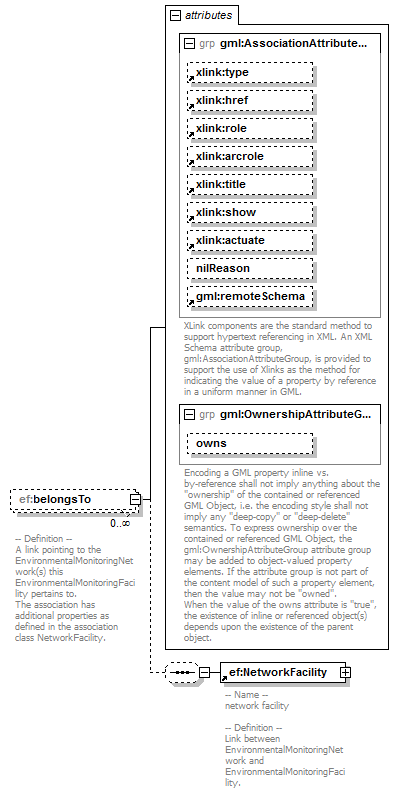

element EnvironmentalMonitoringFacilityType/belongsTo

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	ef:NetworkFacility
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- A link pointing to the EnvironmentalMonitoringNetwork(s) this EnvironmentalMonitoringFacility pertains to. The association has additional properties as defined in the association class NetworkFacility. appinfo <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:contains</reversePropertyName>
