element TimeRange

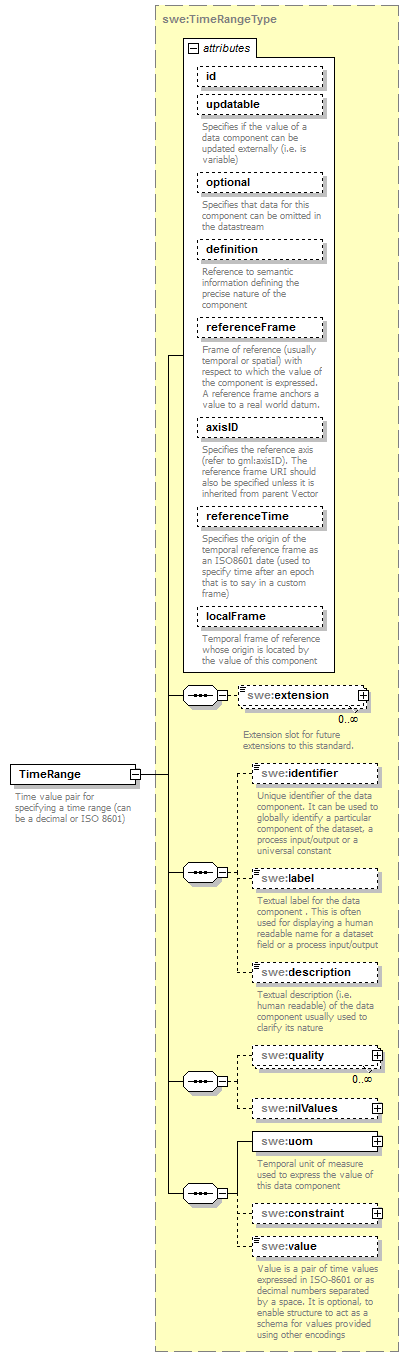

diagram AirQualityReporting_p1728.png
namespace http://www.opengis.net/swe/2.0
type swe:TimeRangeType
properties
content complex
substGrp swe:AbstractSimpleComponent
children swe:extension swe:identifier swe:label swe:description swe:quality swe:nilValues swe:uom swe:constraint swe:value
attributes
Name  Type  Use  Default  Fixed  annotation
idIDoptional
updatablebooleanoptional
documentation
Specifies if the value of a data component can be updated externally (i.e. is variable)
optionalbooleanoptional  false
documentation
Specifies that data for this component can be omitted in the datastream
definitionanyURIoptional
documentation
Reference to semantic information defining the precise nature of the component
referenceFrameanyURIoptional
documentation
Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
axisIDstringoptional
documentation
Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
referenceTimedateTimeoptional
documentation
Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)
localFrameanyURIoptional
documentation
Temporal frame of reference whose origin is located by the value of this component
annotation
documentation
Time value pair for specifying a time range (can be a decimal or ISO 8601)
