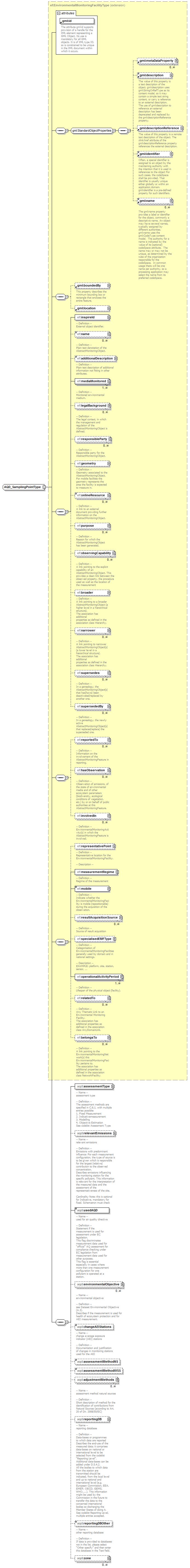

complexType AQD_SamplingPointType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of ef:EnvironmentalMonitoringFacilityType
properties	base  ef:EnvironmentalMonitoringFacilityType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ef:inspireId ef:name ef:additionalDescription ef:mediaMonitored ef:legalBackground ef:responsibleParty ef:geometry ef:onlineResource ef:purpose ef:observingCapability ef:broader ef:narrower ef:supersedes ef:supersededBy ef:reportedTo ef:hasObservation ef:involvedIn ef:representativePoint ef:measurementRegime ef:mobile ef:resultAcquisitionSource ef:specialisedEMFType ef:operationalActivityPeriod ef:relatedTo ef:belongsTo aqd:assessmentType aqd:relevantEmissions aqd:usedAQD aqd:environmentalObjective aqd:changeAEIStations aqd:assessmentMethodNS aqd:assessmentMethodWSS aqd:adjustmentMethods aqd:reportingDB aqd:reportingDBOther aqd:zone
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

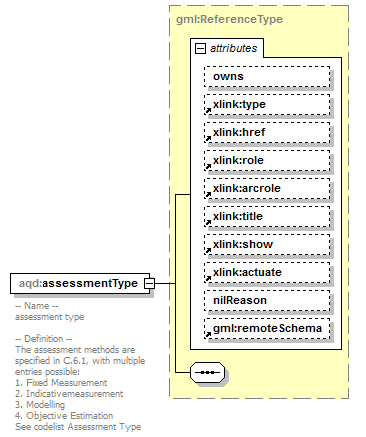

element AQD_SamplingPointType/assessmentType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- assessment type -- Definition -- The assessment methods are specified in C.6.1, with multiple entries possible: 1. Fixed Measurement 2. Indicativemeasurement 3. Modelling 4. Objective Estimation See codelist Assessment Type

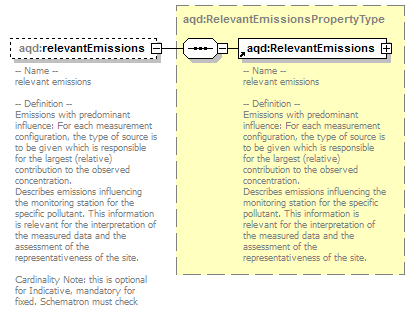

element AQD_SamplingPointType/relevantEmissions

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:RelevantEmissionsPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:RelevantEmissions
annotation	documentation -- Name -- relevant emissions -- Definition -- Emissions with predominant influence: For each measurement configuration, the type of source is to be given which is responsible for the largest (relative) contribution to the observed concentration. Describes emissions influencing the monitoring station for the specific pollutant. This information is relevant for the interpretation of the measured data and the assessment of the representativeness of the site. Cardinality Note: this is optional for Indicative, mandatory for fixed. Schematron must check

element AQD_SamplingPointType/usedAQD

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	boolean
properties	isRef  0 content  simple
annotation	documentation -- Name -- used for air quality directive -- Definition -- Statement if the measurement is used for assessment under EC legislation. This flag discriminates measurement data used for “official” AQ assessment for compliance checking under EC legislation from measurement data used for other purposes. This flag is essential especially in cases where more than one measurement configuration for one pollutant is operated at a station.

element AQD_SamplingPointType/environmentalObjective

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:EnvironmentalObjectivePropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:EnvironmentalObjective
annotation	documentation -- Name -- environmental objective -- Definition -- see Dataset Environmental Objective (A.3). Describes if the measurement is used for health of ecosystem protection and for AEI measurement.

element AQD_SamplingPointType/changeAEIStations

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- change average exposure indicator (AEI) stations -- Definition -- Documentation and justification of changes in monitoring stations used for the AEI

element AQD_SamplingPointType/assessmentMethodNS

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element AQD_SamplingPointType/assessmentMethodWSS

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

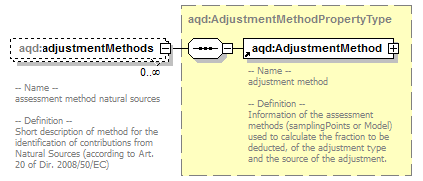

element AQD_SamplingPointType/adjustmentMethods

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AdjustmentMethodPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AdjustmentMethod
annotation	documentation -- Name -- assessment method natural sources -- Definition -- Short description of method for the identification of contributions from Natural Sources (according to Art. 20 of Dir. 2008/50/EC)

element AQD_SamplingPointType/reportingDB

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- reporting database -- Definition -- Data-bases or programmes to which data are reported Describes the end-use of the measured data; it comprises data-bases on national or international level to be selected from the codelist “Reporting Level”. Additional data-bases can be added under D.5.4.2. All the bodies to which data from the station are transmitted should be indicated, from the local level and up to national and international level (e.g. European Commission, EEA, EMEP, OECD, GEMS, WHO,....). This information might be used by the Commission in the future to transfer the data to the concerned international bodies so discharging the Member States of doing it. See codelist Reporting Level, multiple entries accepted.

element AQD_SamplingPointType/reportingDBOther

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- other reporting database -- Definition -- If data is provided to databases not in the list, please select “Other specify” and then enter this database in the Text field.

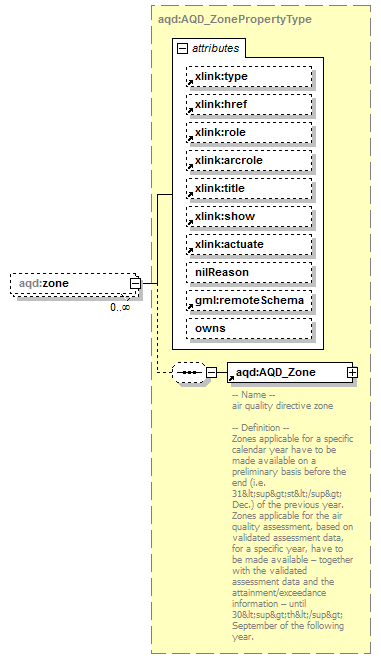

element AQD_SamplingPointType/zone

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_ZonePropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AQD_Zone
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
